Baudoulin 6 M26.2 - Primary Screen; Secondary Screen; Home Screen

- 2/8 -
00343 - Edition 01 - September 11
Design
B600 - Electrical system
Non-contractual illustrations

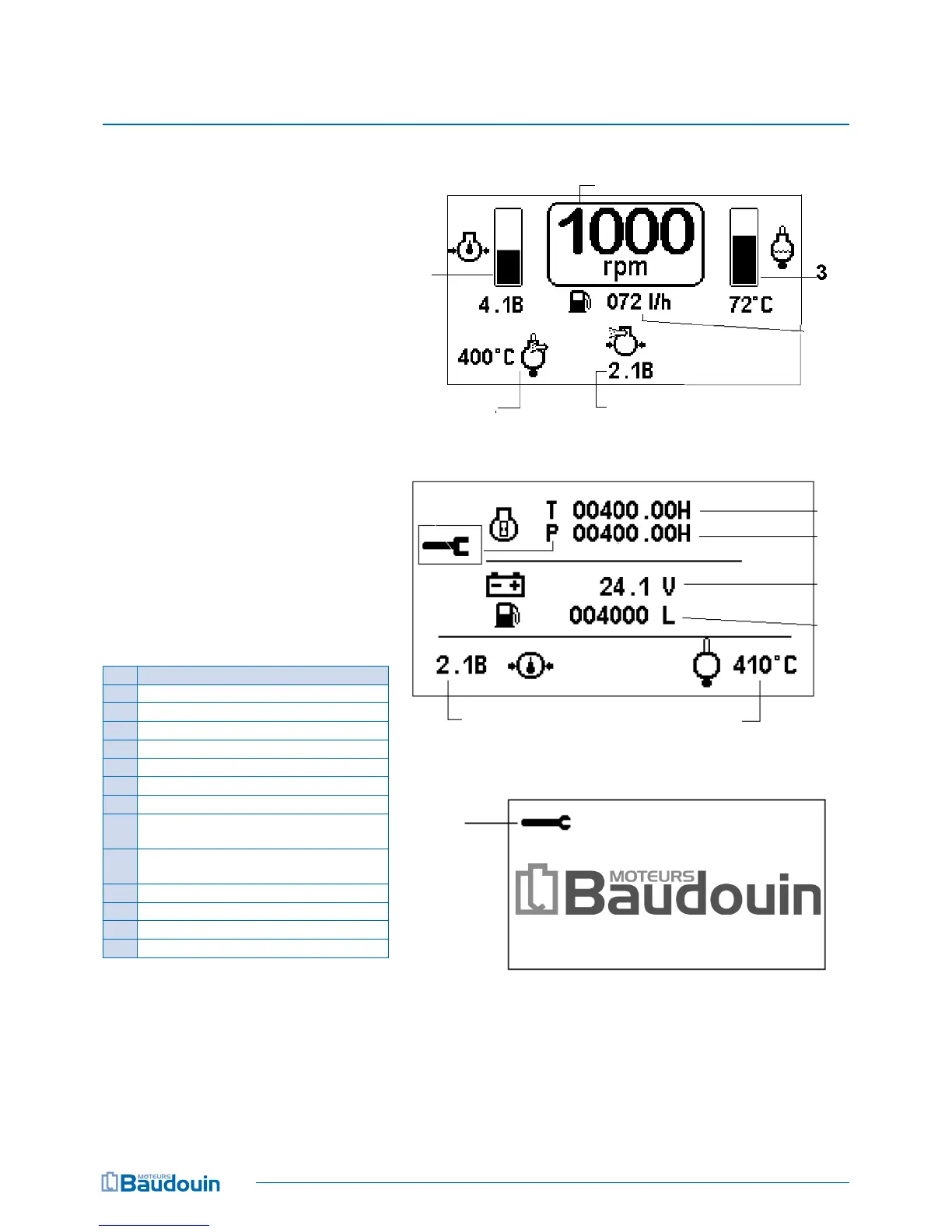

Primary screen
Secondary screen
Home screen
The control panels are equipped with an alarm and data
recording system. These records can be extracted from the
panel by an of cial S. I. Moteurs Baudouin representative if
necessary.
Rep Description
1 Tachometer
2 Engine oil pressure
3 Engine coolant temperature
4 Exhaust temperature
5 Supercharger air pressure
6 Full hour meter
7 Battery voltage
8 Reduction gear oil pressure indicator
(depending on connected option)
9 Reduction gear oil temperature indicator
(depending on connected option)
10 Instant consumption indication
11 Total consumption indication
12 Partial hour meter or maintenance
13 Maintenance indicator
54
2
1
10
6
12
7
11
9
13
8
