VITAL PRECAUTIONS
b Faulty connections (battery or alternator) can
damage the alternator, instrument panel, or other
electronic components.
b Never open the load circuit when the engine is
running.
b Disconnect the wires to the battery(ies) and the
alternator before carrying out any electric welding.
b When starting up, battery voltage must never be less
than 18VDC
DT 11.G04

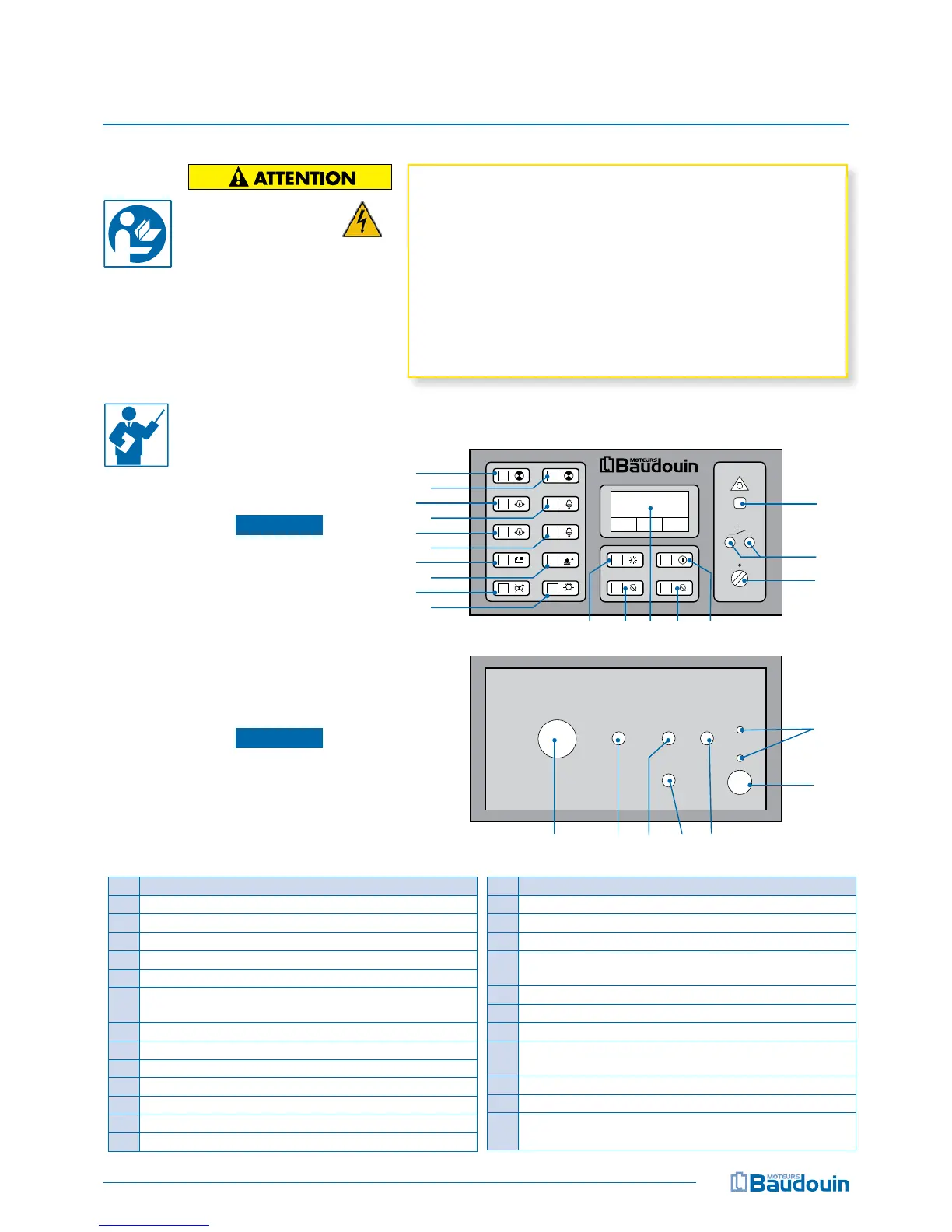

Front view
Rear view
Standard and optional electrical equipment
See safety
instructions
15
16
17
18
19
24 22 21 23 20
1
2
3
4
5
6
7
8
9
10
1212 1411 13
Control panel (ref. 77 72 719 6H)
Rep Description
1
Low oil pressure in reduction gear alarm or option
2
Injector leak alarm or option
3
Low oil pressure early warning
4
High coolant temperature alarm early warning
5
Very low oil pressure alarm, STOP engine
6
Very high coolant temperature warning
(second warning), with or without engine shutdown
7
Low battery voltage
8
Low coolant level
9
Audible shutdown alarm
10
Lamp test
11
Brightness setting
12
Engine stop command
13
LCD screen
Rep Description
14
Screen scroll command
15
Override command
16
Fuse protection
17
"Power on" command and engine start START (3-position
ring switch)
18
External alarm connector (audible or light)
19
Audible alarm (buzzer)
20
External interface connector (alarm summary, PC)
21
Connector (3 point) to supercharger air pressure cable
(option)
22
Connector (5 point) to exhaust temperature sensors
23
Connector (5 points) to fuel connection/consumption
24
Connector (19 points) to main wiring harness (panel
connection)
