- 1/3 -
00369 - Edition 01 - September 11
Design
B300 - Lubrication system
Non-contractual illustrations
Oil capacity
6 M26.2 engine: 50 litres with standard horizontal engine oil
sump

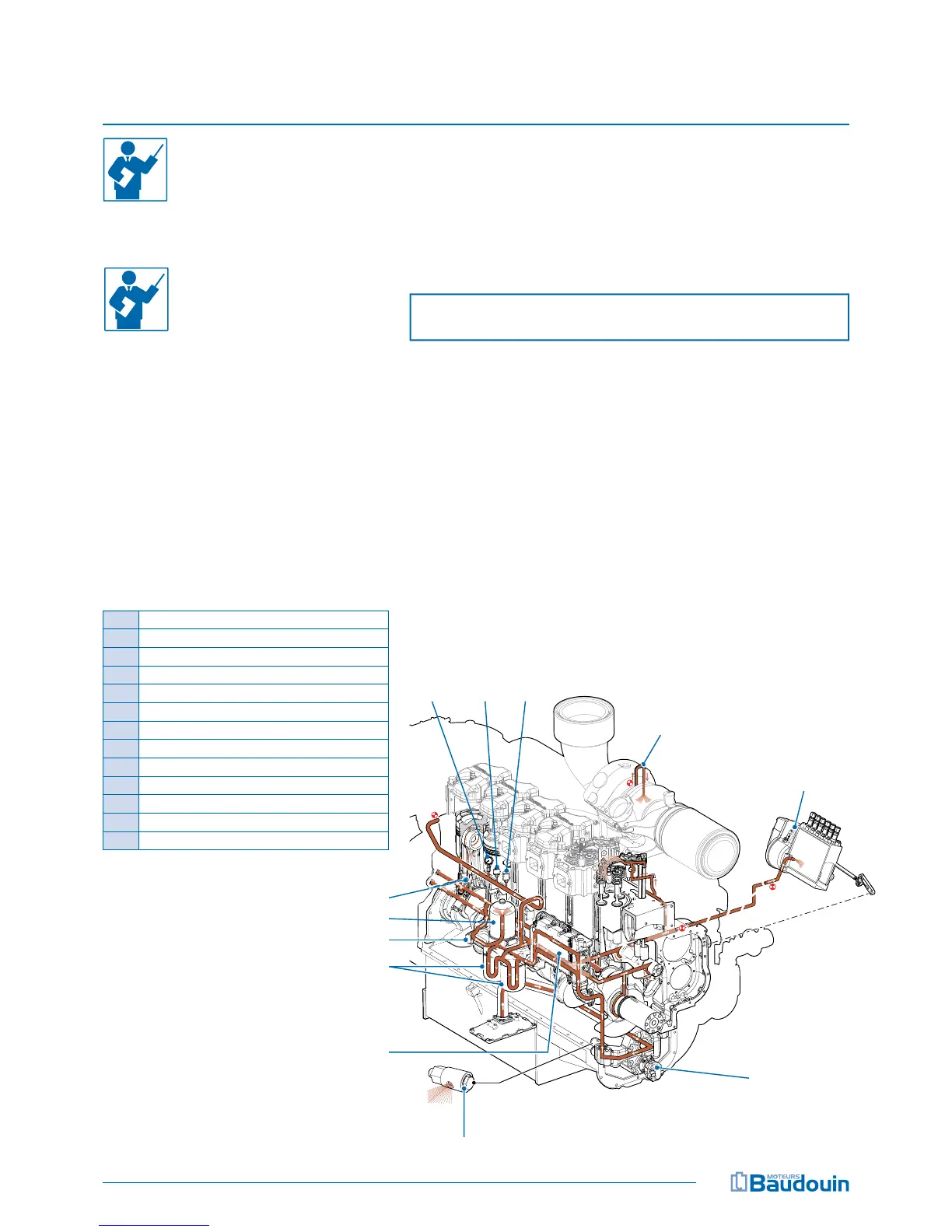

Oil circuit
The engine is fi tted with a pressurised lubrication system. The
gear-type oil pump is located on the lowest part of the engine;
it is driven by the valve gear drive at the front of the
crankshaft.
All lubrication points and all auxiliary devices requiring
lubrication are connected by pipes or tubes to the pressurised
oil lubrication system. The timing gears are greased by a
splash lubrication technique.
Pistons are cooled by oil spraying nozzles.
DT 04.G01
DT M26.2 04.01
Rep Description
1 Oil pump
2 Safety valve
3 Oil cooler
4 Centrifugal fi lter
5 Full-fl ow fi lters
6 Control valve
7 Piston cooling nozzle
8 Turbocharger feed
9 Manometer
10 Pressure switch
11 Pressure transmitter (probe)
12 Injection pump
Oil type
The DT 04.G01 technical documentation provided with the
engine will help you to select the oil best suited to the
engine’s requirements and harshness of operating conditions.
Only the oils indicated in this documentation should be used.
8
9
10 11
12
Backfl ow
1
6
7
4
5
3
2
