D400 - Maintenance operations
After 400 hours (P1 Service)
After 300 hours (P2 Service)
PR Catalogue
see chapters
03 04 05
Catalogue
P.R.
05
Catalogue
P.R.
03

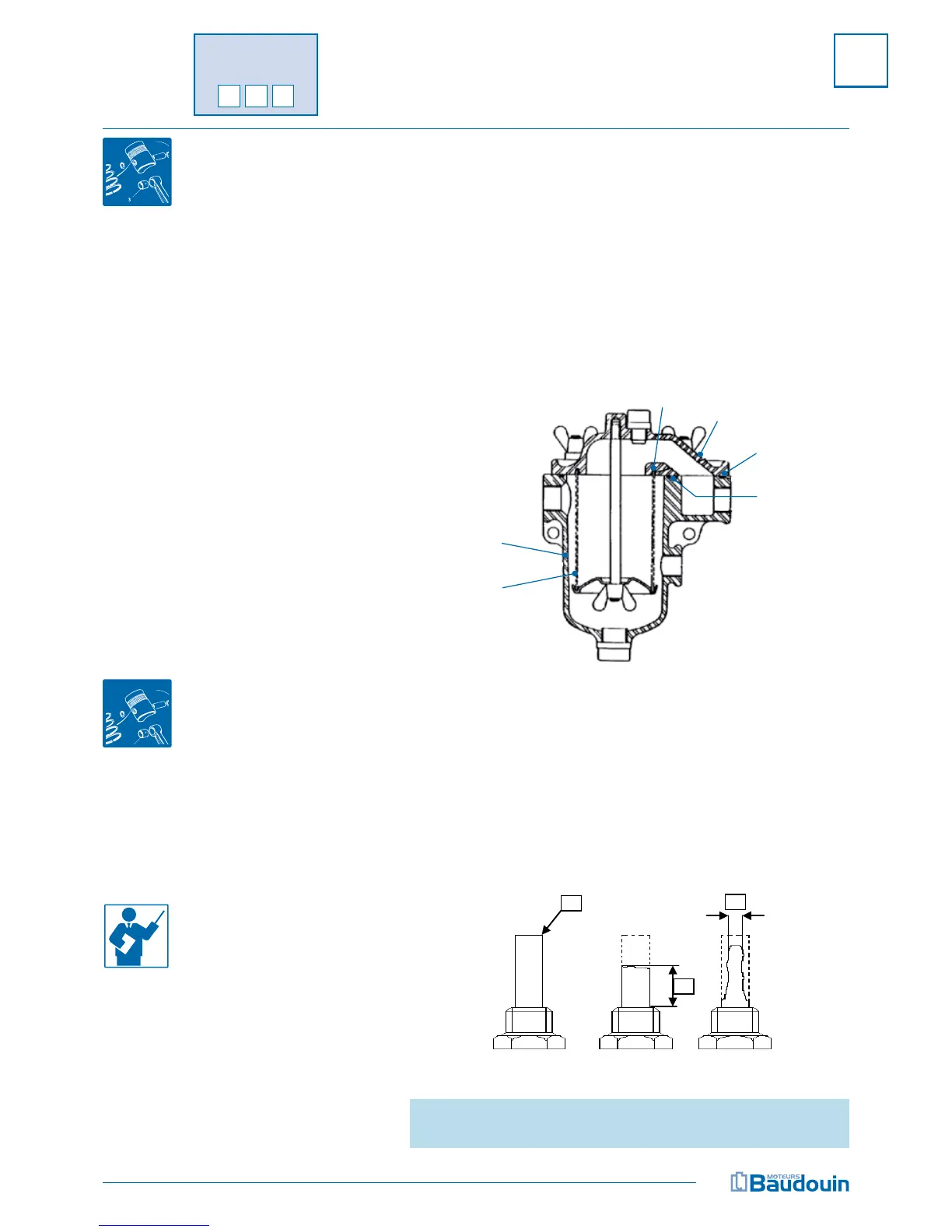

Cleaning the fuel prelter - option
b Isolate the fuel valves.
b Remove the cover (3) of the prelter (1) and remove the
basket (2).
b Clean the basket and the prelter; replace the basket if
necessary.
b Check the condition of the gaskets (4); replace them if
necessary.
b Reinstall the basket and close the cover.
b Open the fuel valves, bleed the lter and check that there
are no leaks.
Inspection and replacement of zinc anodes
(ref. 16 08 158 0D / 15 03 123 0T)
b Close the raw water inlet valve.
b Remove every anode and check their condition. Measure
the anode (A) to determine the level of erosion in terms of
length (B) and diameter (C).
b Replace the anode and copper gasket if the length (B) is
less than 31.7mm or the diameter (C) is less than 5.5mm.
DT 21.G03
Note: It is IMPERATIVE to inspect the anodes after every
M1 operation or every 6 months.
