Maintenance
D500 - Maintenance operations
Every 800 hours (P1 Service)
Every 600 hours (P2 Service)
M2
Non-contractual illustrations
PR Catalogue
see chapters
04
05
08
v Move the lever to the “R" operation position.
v The right-hand cartridge is now operational.
Lever in "R "
operation position

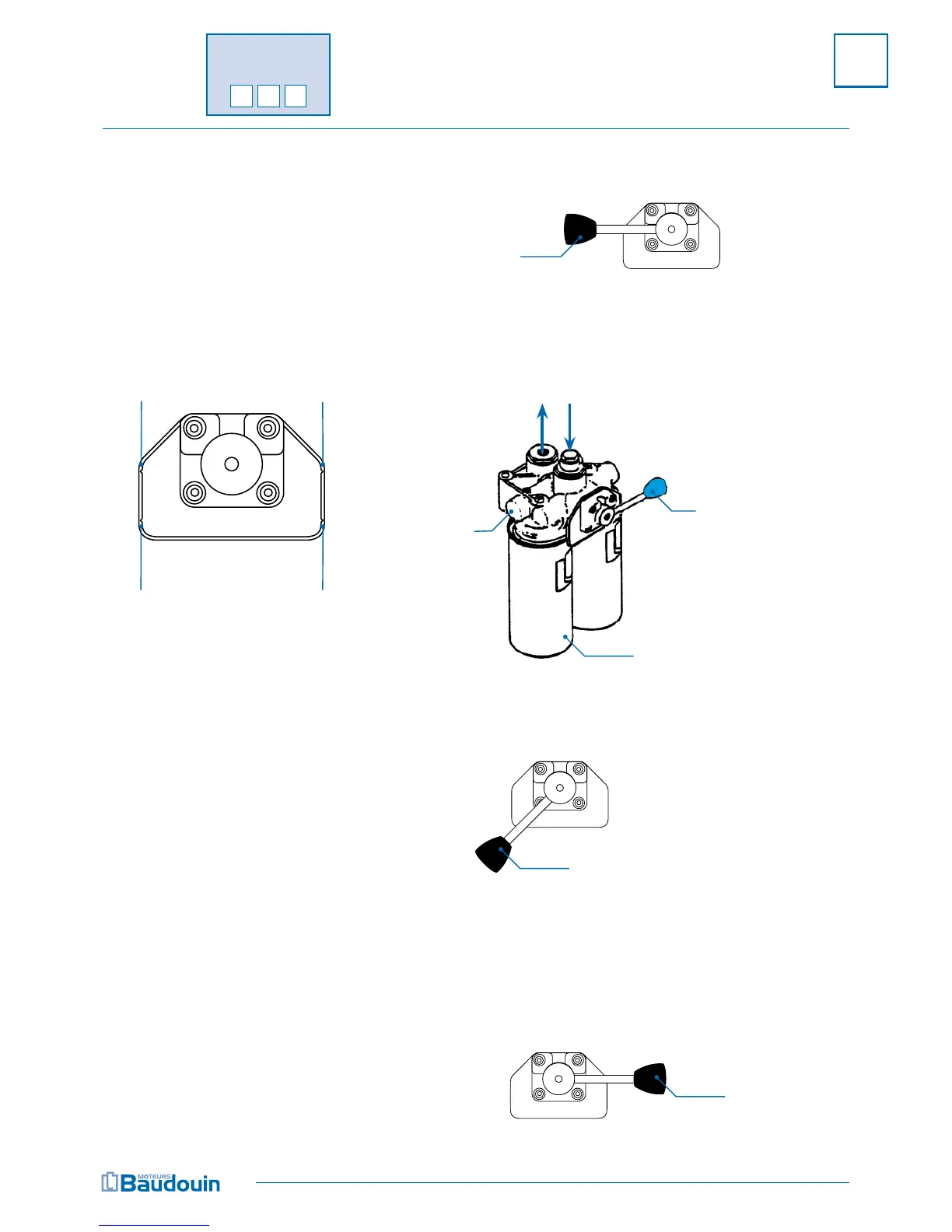

b Using the left-hand cartridge
Bleed the left-hand cartridge:
Lever in “L” operation
position (left-hand
cartridge in service)
Left-hand cartridge
Bleed
left-hand
cartridge
Fuel outlet Fuel inlet
v Unscrew the bleed screws located on the fuel lter head
(left-hand side).
v Move the lever to the "L" bleed position.
v Use the hand priming pump until the fuel runs without any
air bubbles.
v Screw the bleed screws back on.
v Move the lever to the "L" operation position.
v The left-hand cartridge is now operational.
Lever in “L" bleed position
(bleed the left-hand cartridge)
Lever in "L"
operation position
D
G
G
D
on on
bleed bleed
