Baudoulin 6 M26.2 - Replacing Water Separator Filter Cartridge (Option); Replacing Centrifugal Filter Cartridge

- 3/4 -
00364 - Edition 01 - September 11
Maintenance
D500 - Maintenance operations
Every 800 hours (P1 Service)
Every 600 hours (P2 Service)
M2
Non-contractual illustrations
PR Catalogue
see chapters
04 05 08
Lever position not to
be used

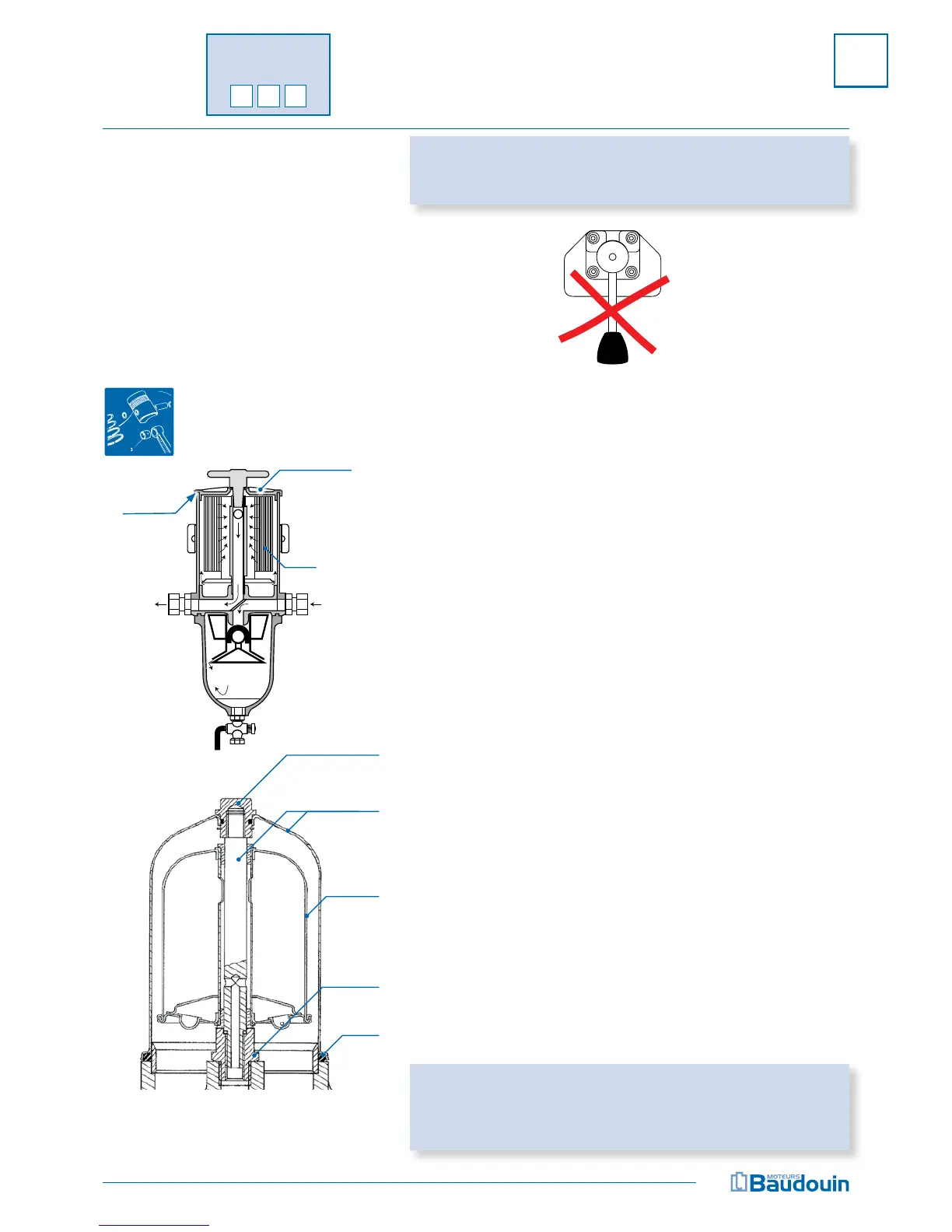

Replacing the water separator lter cartridge
- option (ref. 77 72 884 0V)
b Isolate the diesel valves, remove the lter cover (1), and
remove the lter cartridge.
b Clean the vat.
b Fit the new cartridge, t the cover (1) back
on the vat, carefully replacing the seals (2)
(ref. 77 72 884 1W).
b Open the diesel valves and bleed the lter.
Catalogue
P.R.
05
Filter
cartridge
Replacing the centrifugal lter cartridge
(ref. 15 04 901 0V)
b Unscrew the upper 17'' nut (5).
b Remove the bowl (1).
Warning: if the nut (4) comes unscrewed with the bowl, it
should be removed and retted to its holder during
reassembly (tighten to torque 20m.N)..
b Remove the cartridge (2) and the seal (3).
b Clean inside the bowl and the holder.
b Fit a new cartridge and replace the seal (3) provided with
the cartridge.
b Ret the bowl and tighten to a torque of 20Nm, so that it is
not distorted.
Do not use the fuel lter while the lever is in vertical
position as this position operates both cartridges at
the same time.
2
1
1
5
4
2
3
Environmental precaution
There are laws regarding environmental protection and the
disposal of waste and hydrocarbons. To ensure compliance
with environmental protection laws, consult your local
authorities who will advise you.
