Baudoulin 6 M26.2 - A300 - Technical Data; Key Data; Cylinder Numbers and Firing Order

- 1/5 -
Description
A300 - Technical data
Non-contractual illustrations00341 - Edition 01 - September 11
The 6 M26.2 diesel engine from S. I. Moteurs Baudouin is a
6-cylinder internal combustion engine with the cylinders
arranged along the longitudinal axis of the crankshaft.
Key data
The table below presents key data for the 6 M26.2 engine.
Data description Unit Values
Diesel cycle 4 stroke
Injection type direct
Number of cylinders 6
No. of valves/cylinder 2+2
Cylinder layout inline
Direction of rotation counter-clockwise
Bore mm 150
Stroke mm 150
Total cylinder displacement l 15,9
Nominal rating min
-1
min
-1
1800 (P1)
1900 (P1, P2)
Low idle speed min
-1
700
Engine ring order min
-1
1-5-3-6-2-4
Valve lash:
- intake mm 0.30
- exhaust mm 0.30
Injector calibration bar 260 0 +8
ERC engine reference cylinder 6
PRC injection pump reference cylinder 1
Cylinder numbers see diagram below

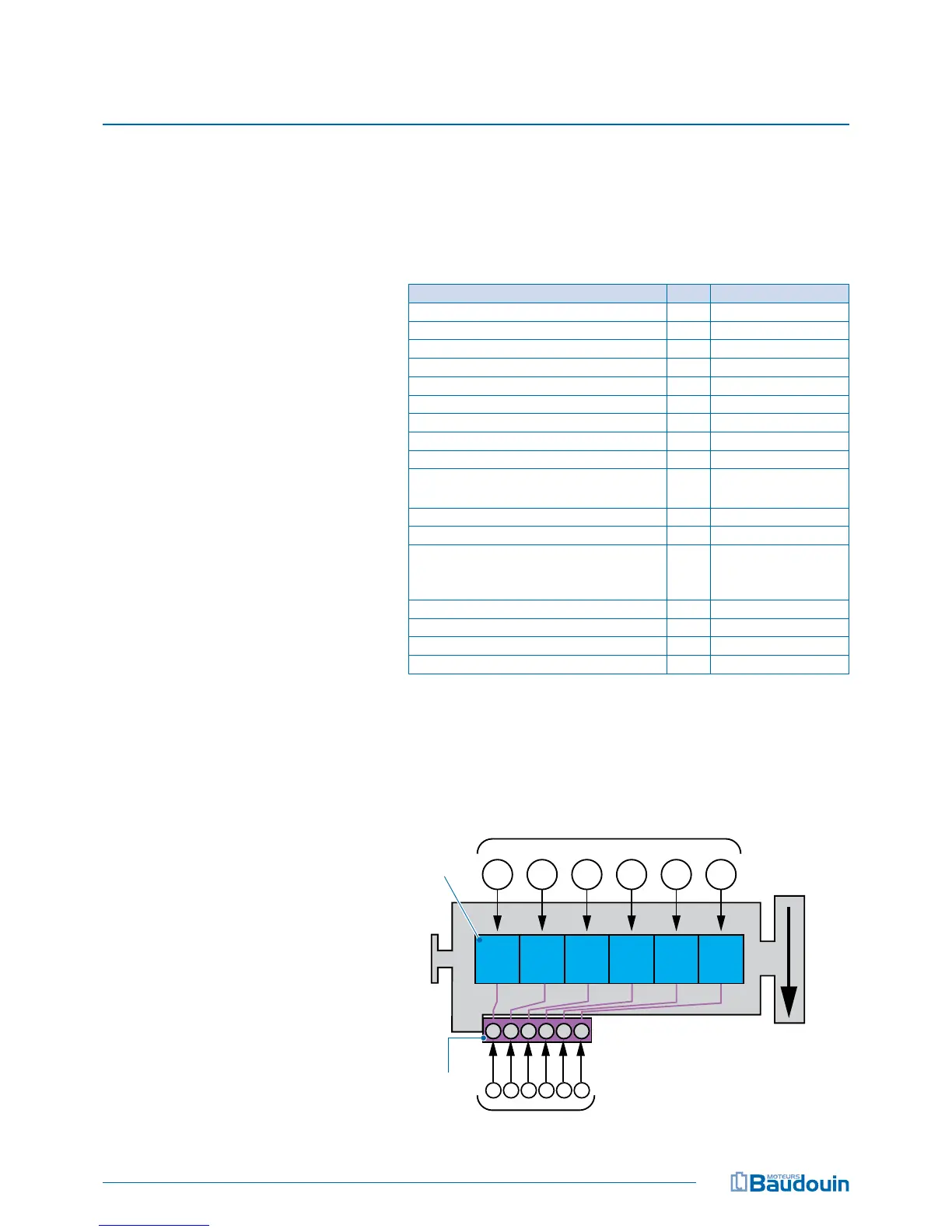

Cylinder numbers
The diagram below shows the engine ring order and the
pump injection order.
6
1
1
2 3 4 5 6
6 3 5 14 2
5
2
4
3
3
4
2
5
1
6
Distribution
Ordre d’injection de la pompe
Ordre d’allumage du moteur
ERC
PRC
Engine flywheel
Injection pump injection order
Engine firing order
