Baudoulin 6 M26.2 - Injectors

- 4/4 -
Design
B400 - Fuel circuit
Non-contractual illustrations00370 - Edition 01 - September 11

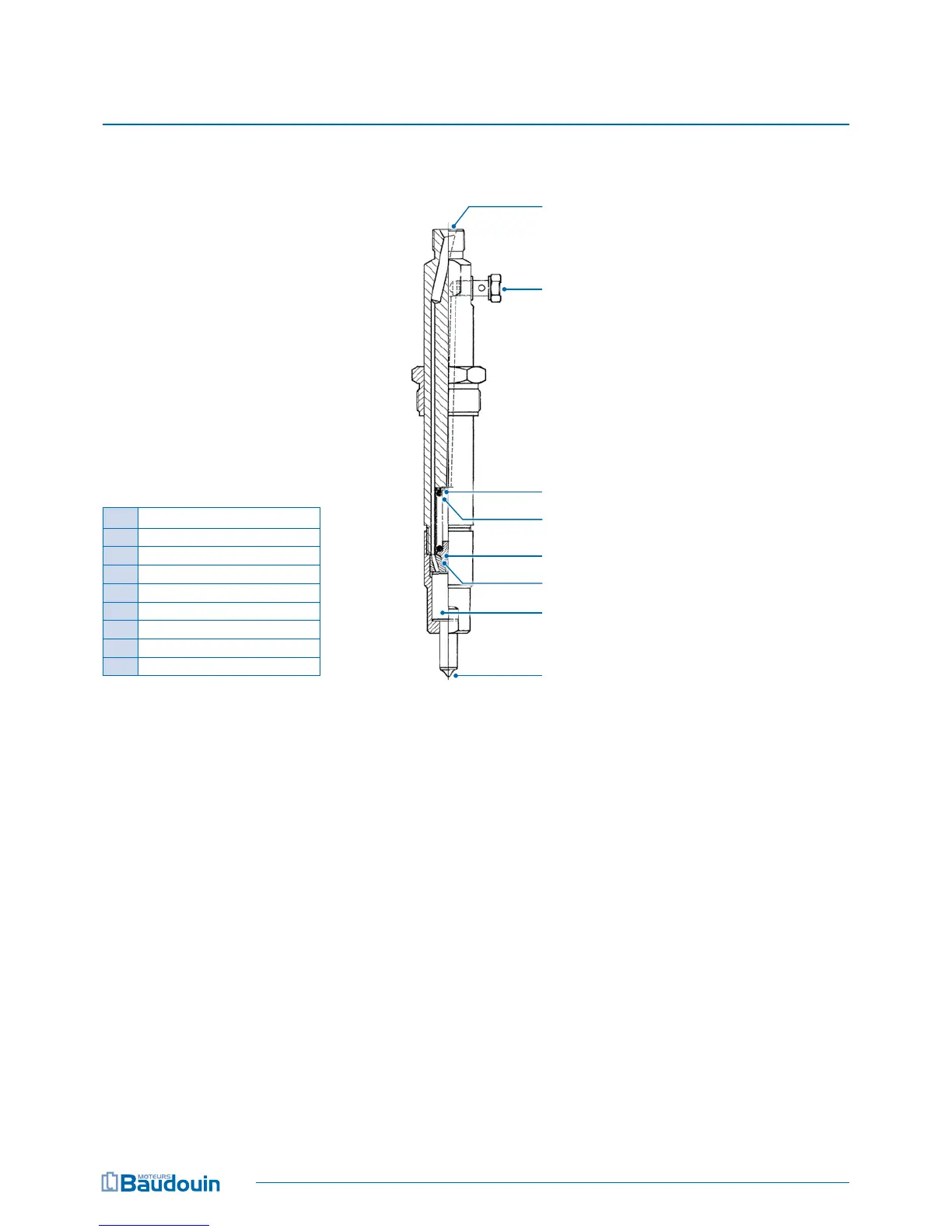

Injectors
260 bars < opening pressure > 268 bars
1
2
3
4
5
6
7
8
Rep Description
1 Fuel inlet
2 Leak backfl ow connection
3 Adjusting wedge
4 Presser spring
5 Push rod
6 Face
7 Nozzle body
8 Injector passages
