Baumuller b maXX BM4 Series Compact Manual

Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02 Baumüller Nürnberg GmbH
14
of 94

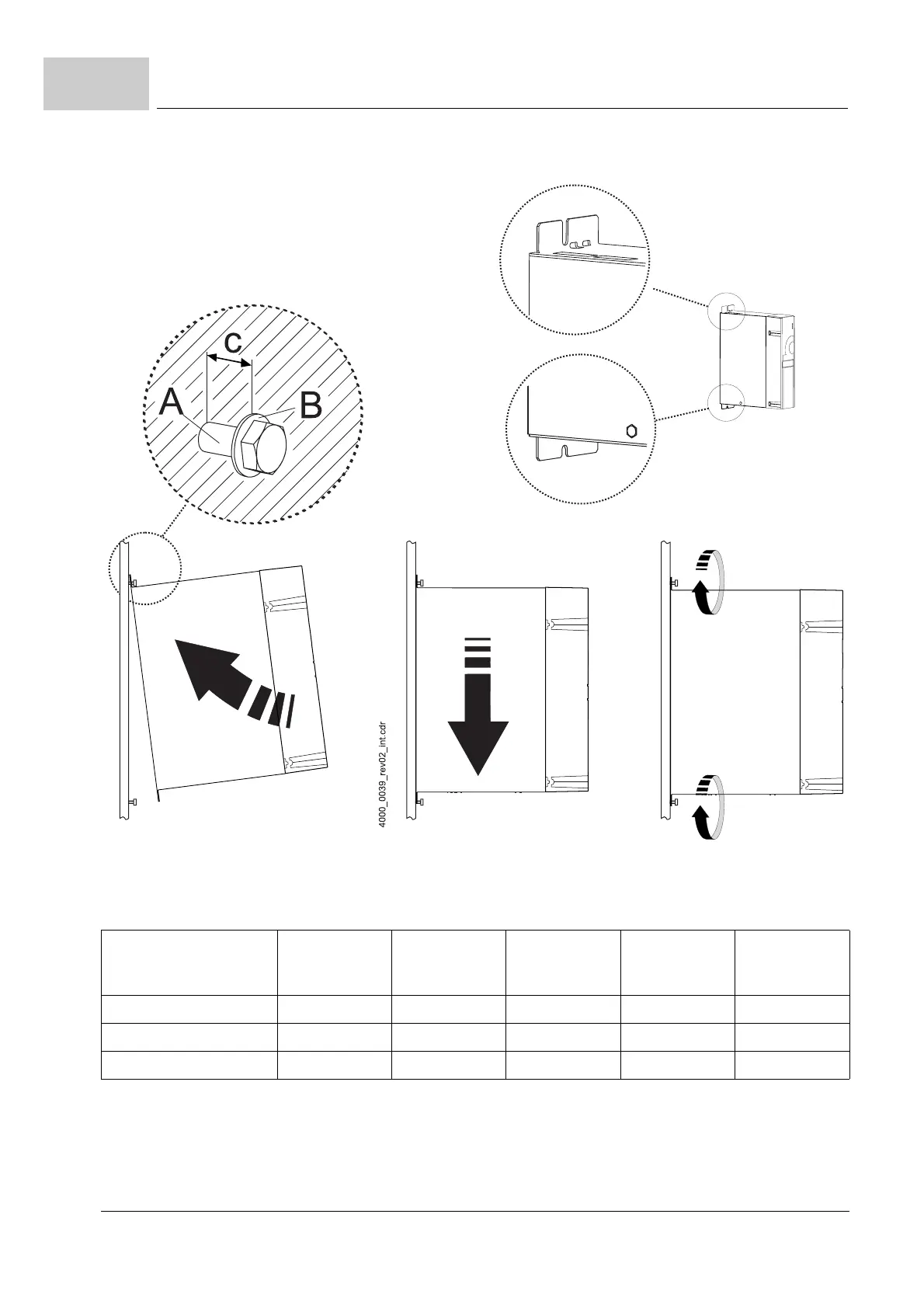

Figure 2: Mounting instruction BM441X, BM442X-S, BM443X-S/Z, BM463X-S/Z, BM444X-S/Z, BM464X-S/Z
Device BM441X-XXX
-XO
-X1
BM441X-XXX
-X2
BM442X-S BM443X-S/Z
BM463X-S/Z
BM444X-S/Z
BM464X-S/Z
A - screws 2 x M5 4 x M5 4 x M5 4 x M5 4 x M5
B - washers 2 x (5.3 x 10) 4 x (5.3 x 10) 4 x (5.3 x 10) 4 x (5.3 x 10) 4 x (5.3 x 15)
C - mount spacing c = 5 mm c = 5 mm c = 5 mm c = 5 mm c = 5 mm
