Executing commissioning
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02 Baumüller Nürnberg GmbH
48
of 94
6.5
14Click on ’encoder1’ if your encoder module is in slot A.
Click on ’encoder2’ if your encoder module is in slot B.
The window ’encoder1-configuration’ opens.

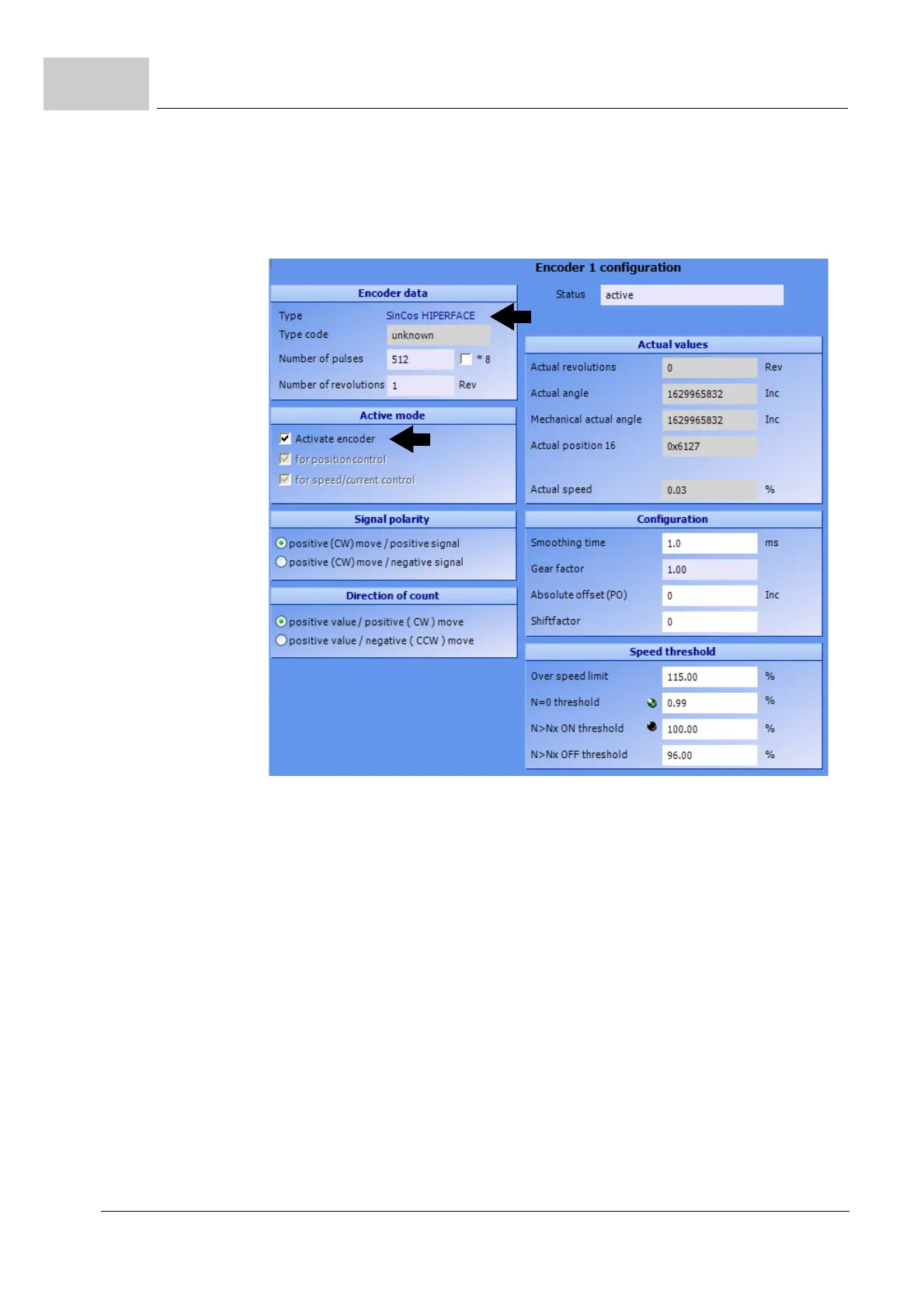

Figure 30: ProDrive: Encoder 1 configuration
15When using a resolver or sine-cosine encoder without HIPERFACE
®
-interface. With a
sine-cosine encoder with HIPERFACE-interface the data is automatically transferred
over the HIPERFACE-interface - do not change data.
m (1) Resolver: PPR count = 1, sine-cosine without HIPERFACE
®
e.g. PPR count = 1024
m (2) Resolver: rotations = 1, sine-cosine without HIPERFACE
®
e.g.
rotations = 1
m both encoders: activation (activate encoder)
Enter overspeed limit manually in block ’speed threshold’.
(1)
(2)
