5.2 Connection diagrams
The electrical connections for devices BM4412 and BM4413 are shown in the following
figure:

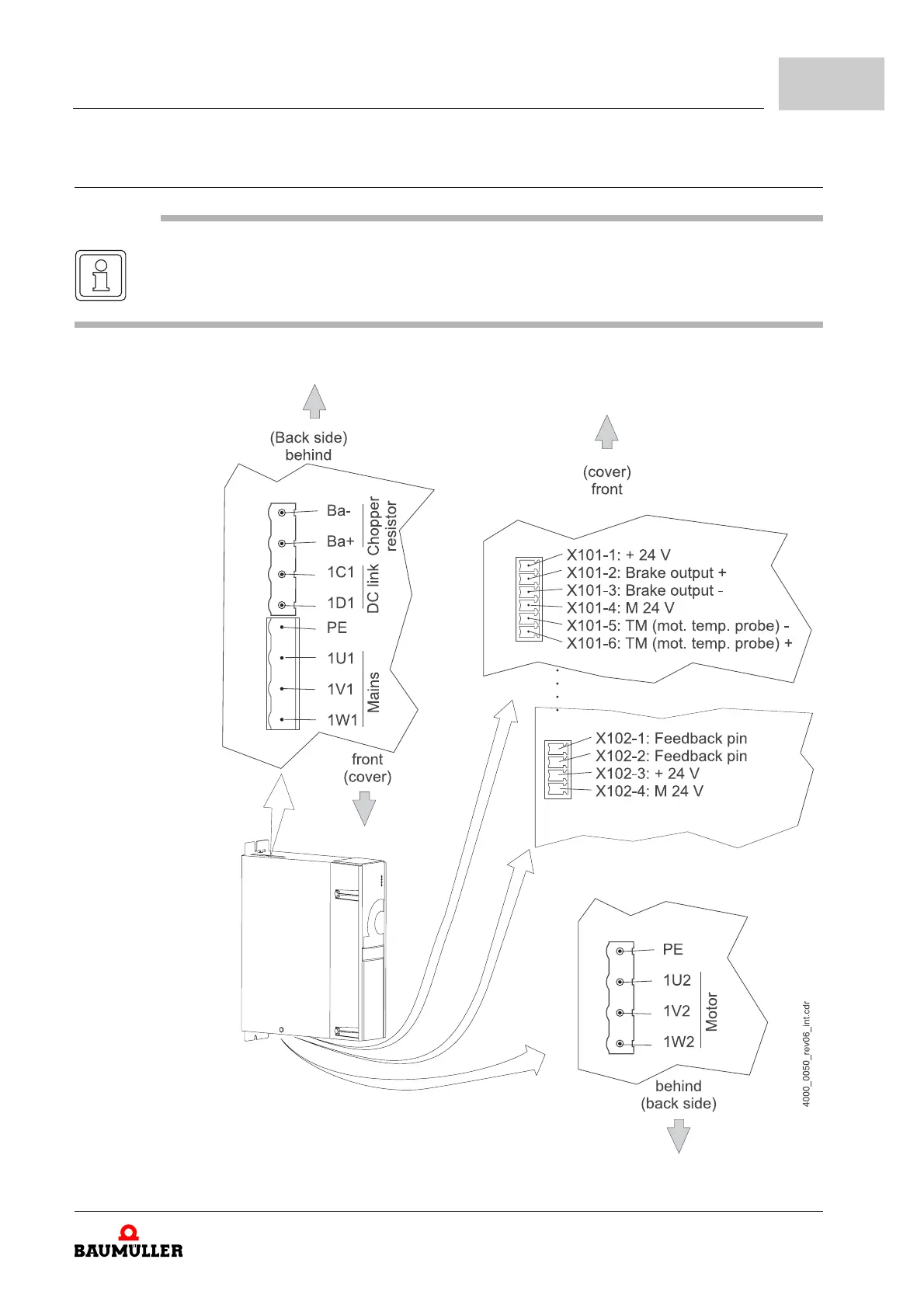

Figure 9: Electrical connections for mains, motor, upon others for BM4412 and BM4413
NOTE
When having a switched-off safety relay, it is not possible at BM441X and BM442X to use a
chopper resistor.
