Executing commissioning
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02 Baumüller Nürnberg GmbH
46
of 94
6.5
7 Click on ’power unit’.

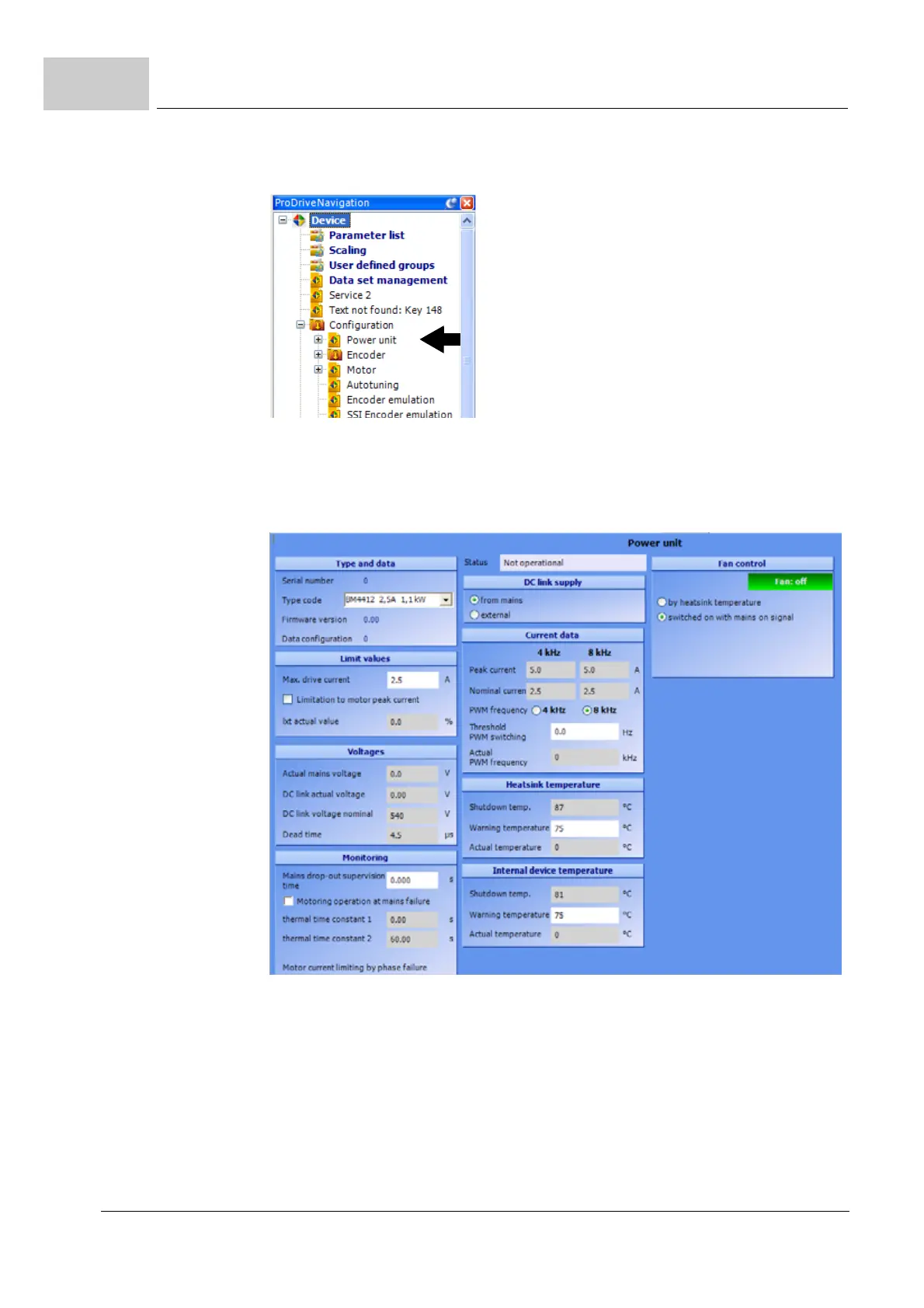

Figure 27: ProDrive: Navigation
8 The current, which is necessary for your application is entered in ’Maximum current of
the drive’, the maximum is the limit current of the motor (according to data sheet):
2.5
A in order to operate the motor and the power unit.
Figure 28: ProDrive: Power unit
