Executing commissioning
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02 Baumüller Nürnberg GmbH
54
of 94
6.5
Find notch posi-
tion
Now the notch position of the motor still has to be found.
34Go to the ProDrive Navigation and double-click on ’operating mode’, then click on ’find
notch position’.
35Click on the icon ’drive manager dialogue’.

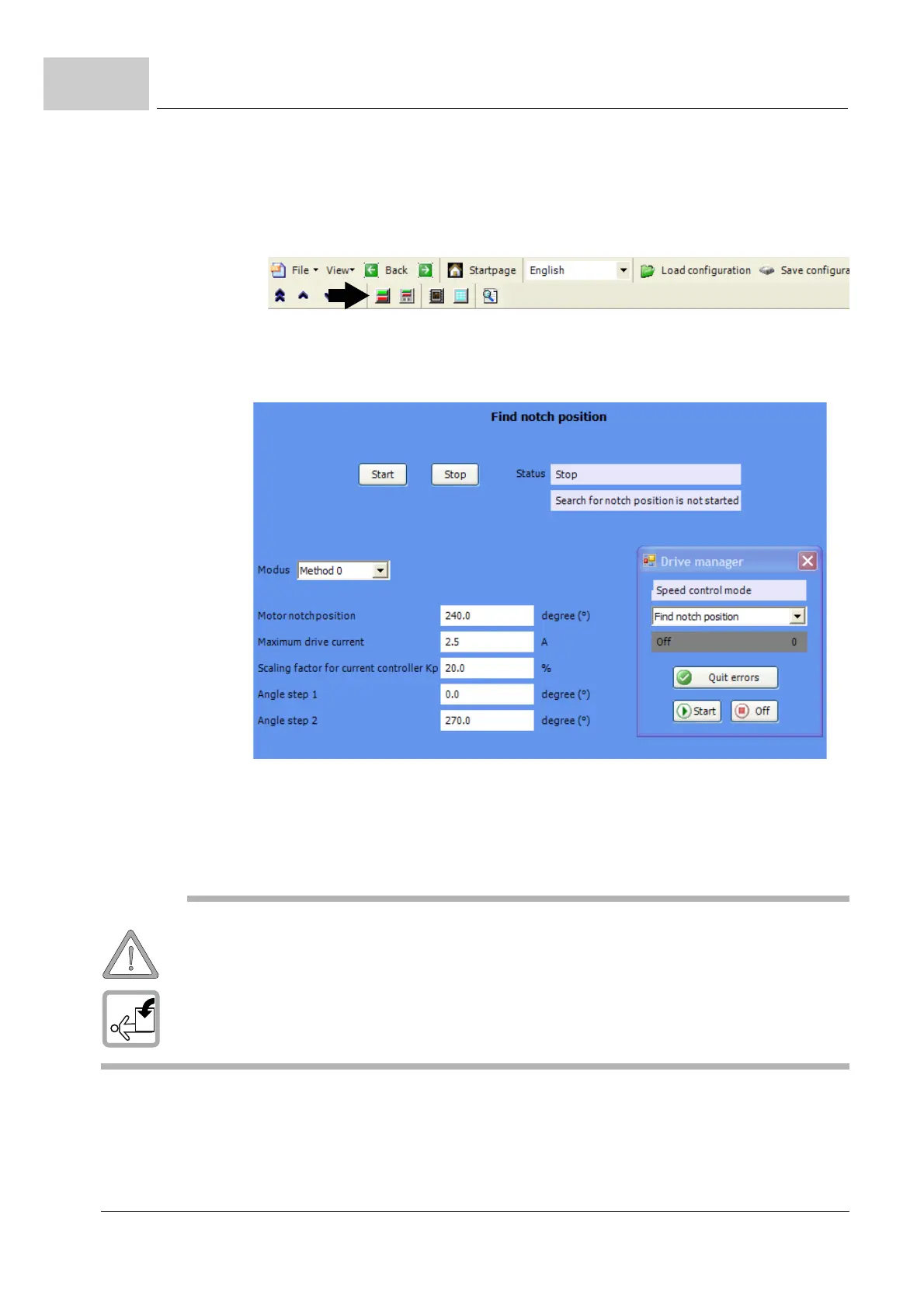

Figure 38: ProDrive: Drive manager dialogue
Additionally the window ’drive manager dialogue’ appears.
Figure 39: ProDrive: Find notch position: Drive manager
36Select method 0 for ’mode’ (1).
37Select ’find notch position’ in the scroll list (2).
38Activate the pulse enable and the quickstop clearance.
39Click on ’start’ (3).
40Wait until the text appears in this field (4): ’notch position was found’.
41Then click on „Off“ (5).
(4)
(6)
(2)
(5)
(1)
(3)
WARNING
The following may occur, if you disregard these safety notes:
m serious personal injury m death
The danger is: mechanical effects. With a non-free-rotating motor the motor and parts, which
are connected to the motor can be damaged/destroyed.
Assure, that the motor can rotate freely during commissioning.
