Executing commissioning
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02 Baumüller Nürnberg GmbH
52
of 94
6.5
26In the parameter list click on ’configuration motor’.

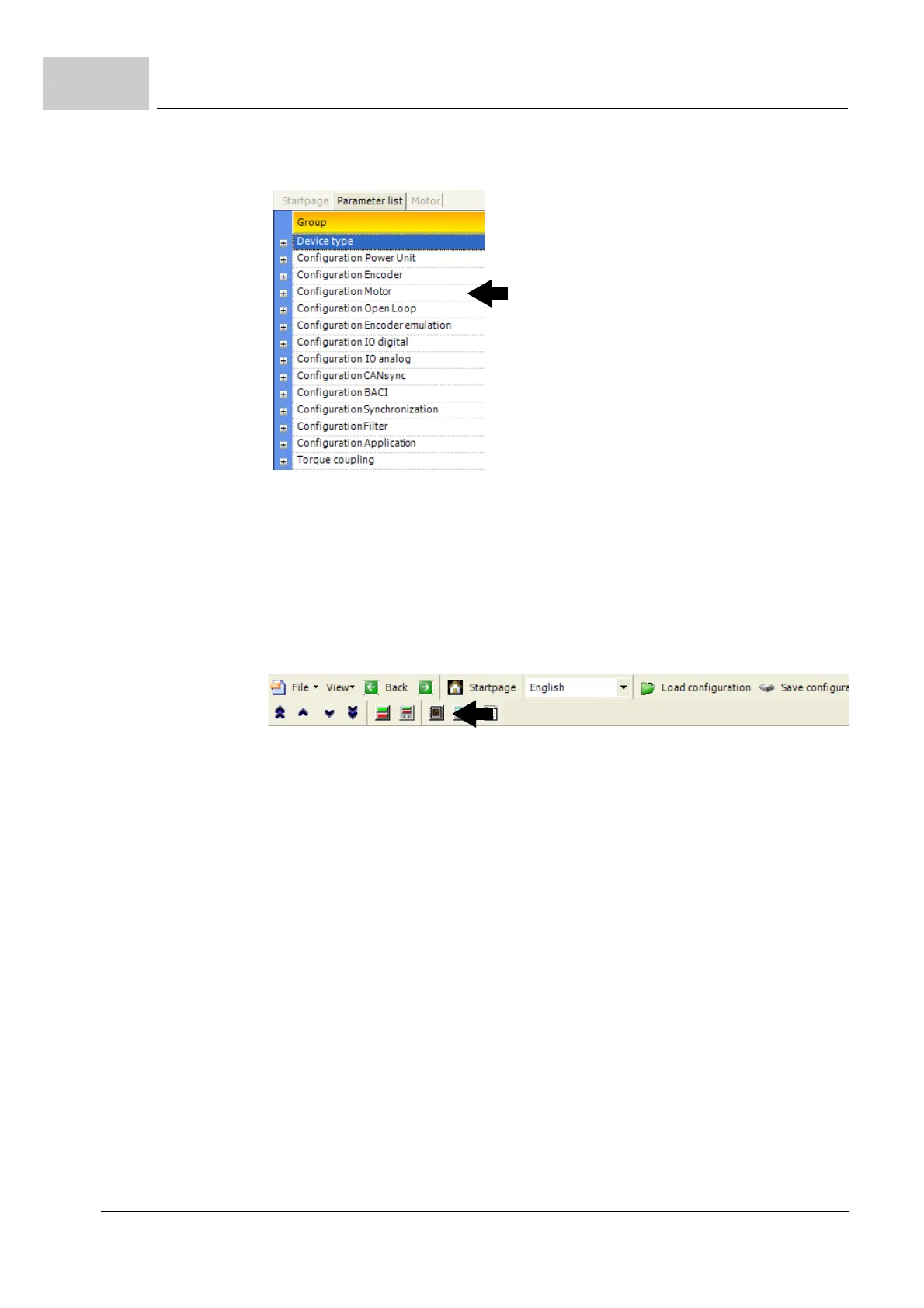

Figure 35: ProDrive: Parameter list
The following motor parameters must be described:
m Maximum speed mech. (P0072 motor maximum speed mechanical)
m Number of pole pairs (P0065 Motor number of pole pairs)
m Rotating field (P0087 Motor rotating field)
Now save the entered data.
27Click in the icon bar on the icon ’Data set management’.
Figure 36: ProDrive: Data set management
