Display elements - LED
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02 Baumüller Nürnberg GmbH
60
of 94
7.3
7.3 Display elements - LED
BM44XX - XXX - XX0XX and BM44XX - XXX - XX1XX:
On the front side of the device there are 4 LEDs. The 4 LEDs (H1 to H4) show information
about the operating status and are also displayed in WinBASS II / ProDrive.
BM44XX - XXX - XX2XX:
On the front side of the device there are six LEDs. Both upper LEDs (UH1 and UH2: 2)
are freely programmable. The four lower LEDs (H1 to H4) show information abut the op
-
erating status and are also displayed in WinBASS II / ProDrive.
ZFigure 18– on page 32 shows the position of the display elements.

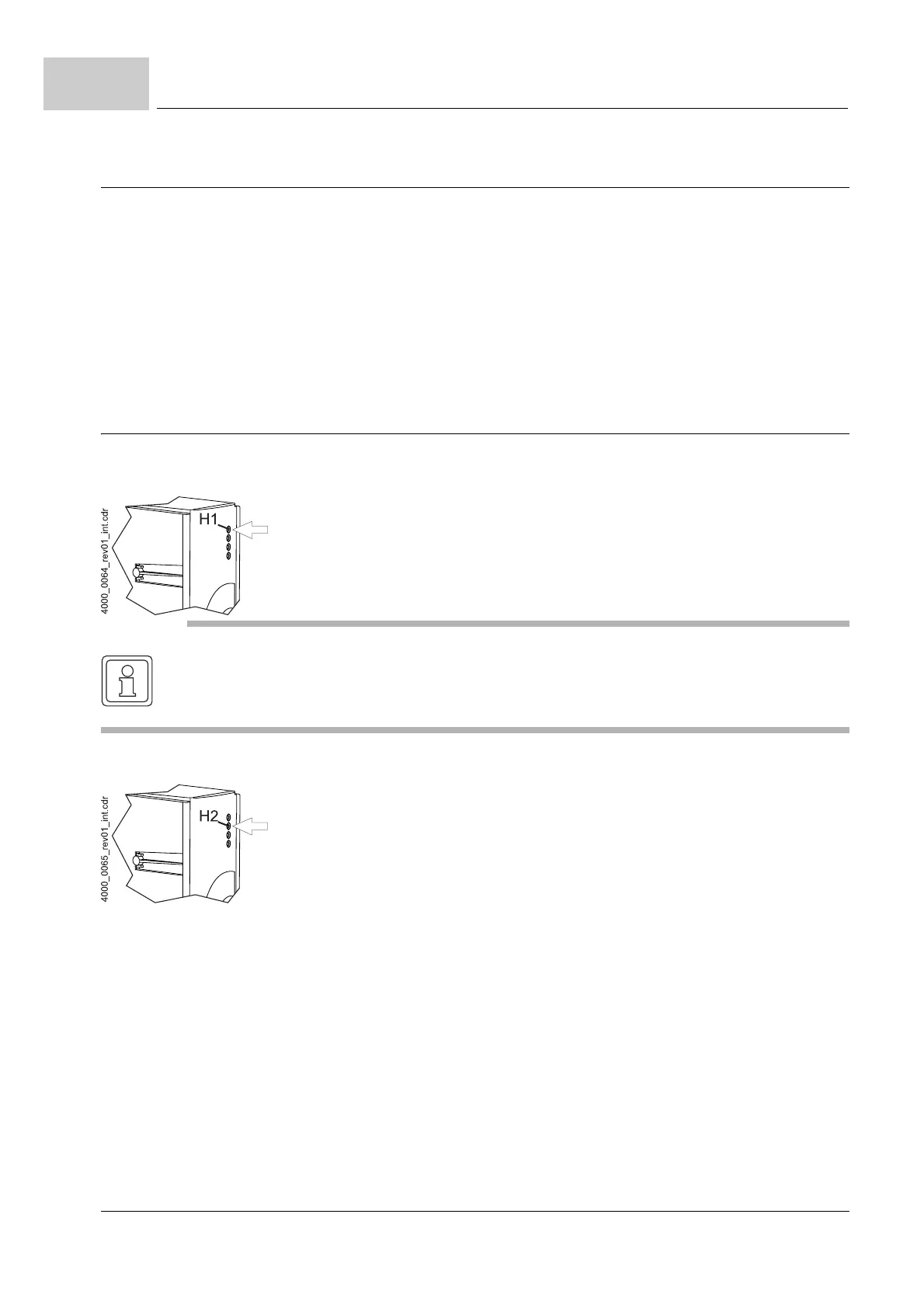

7.3.1 Operating condition (H1, H2)
Both of the upper LEDs (H1 and H2) indicate, how the device is working at the time.
green: the motor rotates, torque direction 1.
orange: the motor rotates, torque direction 2.
NOTE
The LED H1 cannot be taken as rotational direction indicator. It only shows the torque direc-
tions.
green: Pulse enable. The motor is power supplied by the power unit.
orange: Power ON, the device is ready-to-operate. In case the LED lights up
orange colored during operation, maybe the pulse enable is missing or
the quickstop was activated.
flashing in turn green/orange:
Pulses for field generation at asynchronous machines enabled.
No release for torque generation.
green with a short orange-colored flashing or
orange with a short green flashing:
Saving procedure active in the EEPROM,
if possible do not switch off device in this phase.
