Baumuller b maXX BM4 Series Compact Manual

Mounting
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02
17
of 94
4

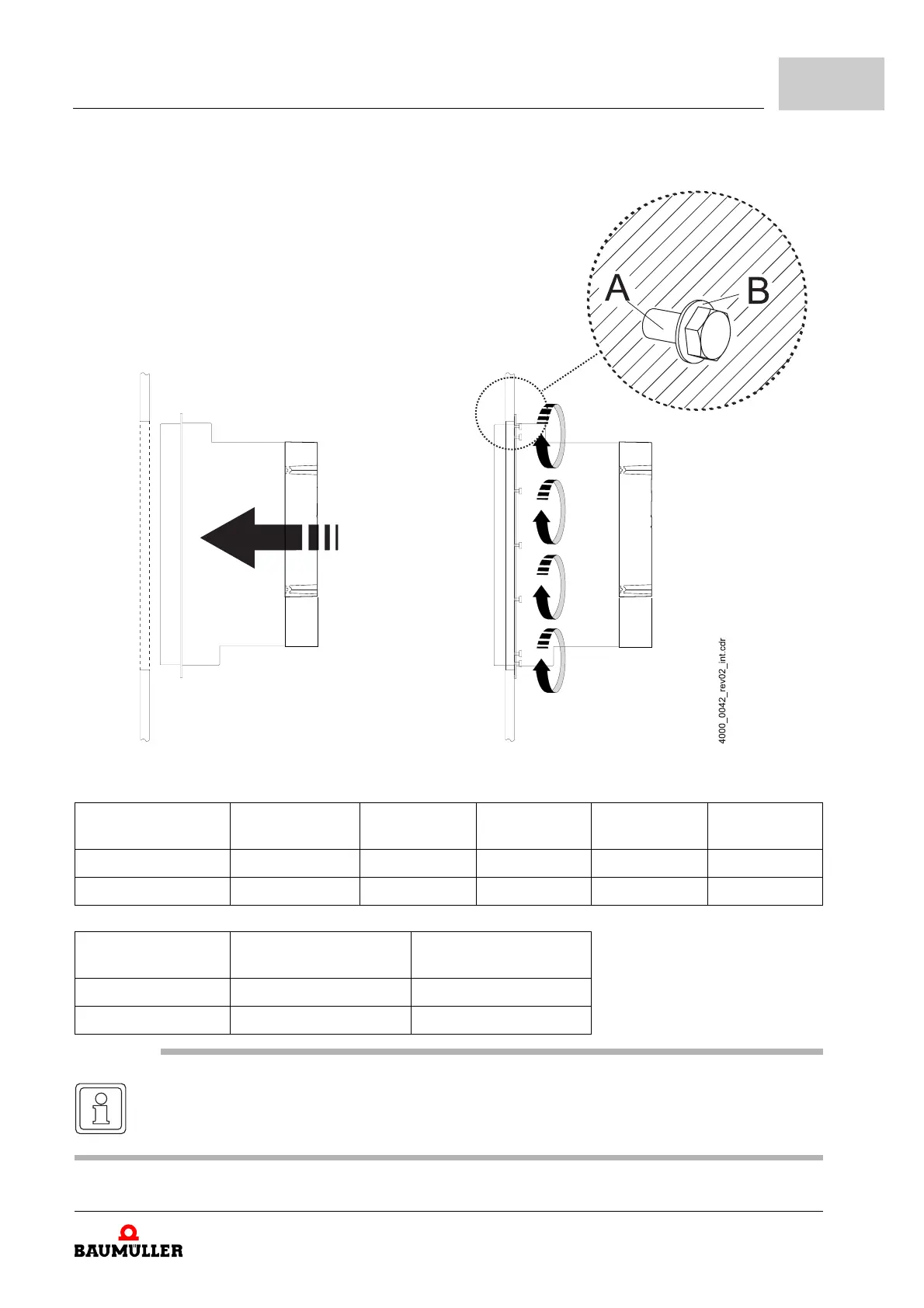

Figure 5: Mounting instruction ’miscellaneous’
Device BM454X-A/F/Z/C BM443X-A/F/C
BM463X-A/F
BM444X-A/F
BM464X-A/F
BM445X-A/F
BM465X-A/F
BM446X-A/F
BM466X-A/F
A - screws 4 x M5 14 x M4 16 x M5 16 x M8 20 x M8
B - washers 4 x (5.3 x 10) 14 x (4.3 x 9) 16 x (5.3 x 15) 16 x (8.4 x 17) 20 x (8.4 x 17)
Device BM465X-FXX-3XXXX
BM475X-FXX-3XXXX
BM466X-FXX-3XXXX
BM476X-FXX-3XXXX
A - screws 18x M6 18 x M8
B - washers 18 x (6,4x17) 18 x (8,4x21)
NOTE
At the types BM4XXX-F and BM4XXX-Z, which have got water cooling, do not forget to con-
nect the cooling circuit to the heat sink on the reverse side of the devices.
