Baumuller b maXX BM4 Series Compact Manual

Commissioning
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02
37
of 94
6
11After starting the ProDrive Startpage appears. Usually you can proceed as follows.

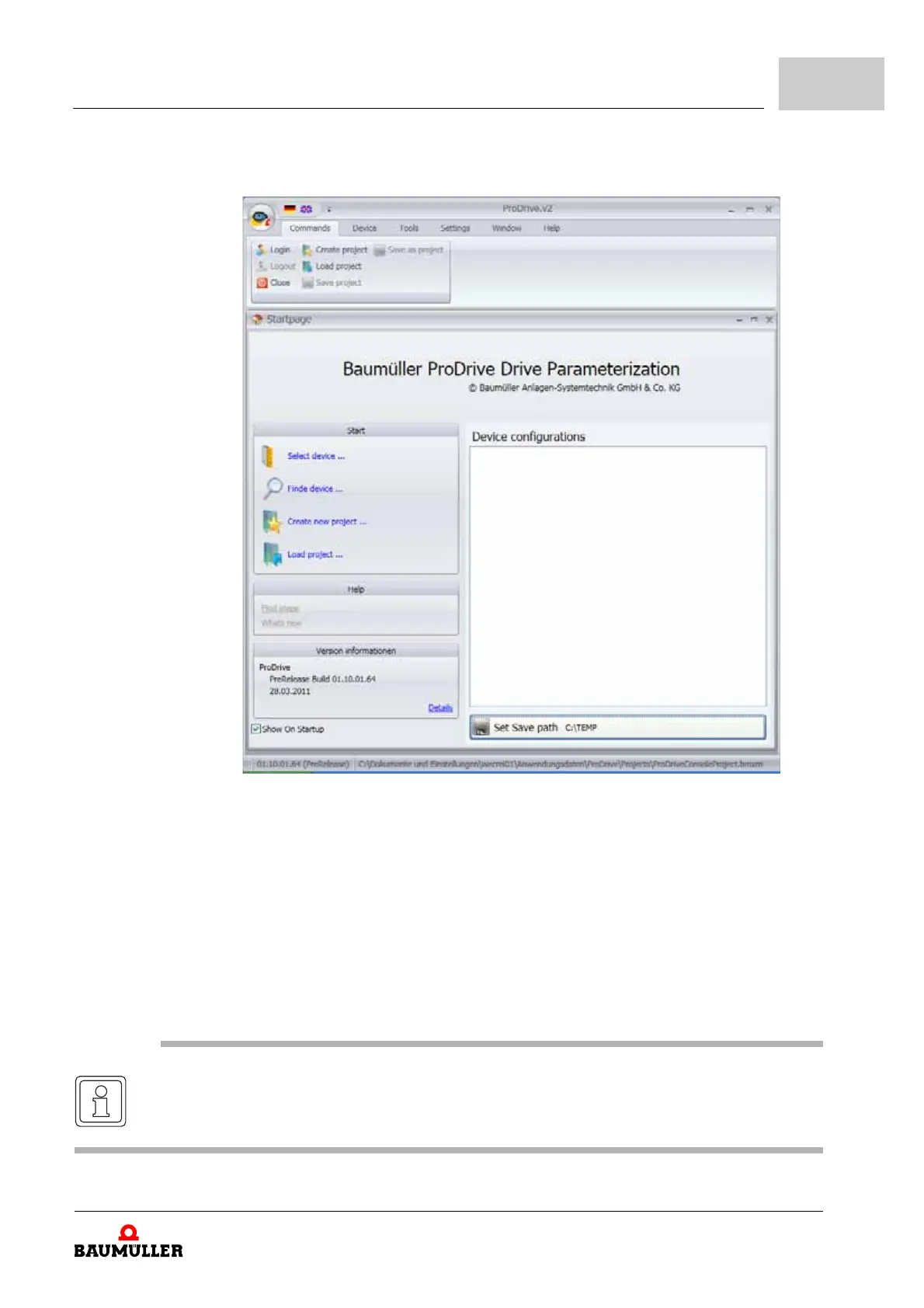

Figure 19: ProDrive: Start window
12On the Startpage select ’Select device’. The window ’Select device’ appears (see
ZFigure 21– on page 39)
13Select the serial interface under (1), where the PC is connected with the b maXX de-
vice.
14Then select the type of device, b maXX4400 drive under (2).
15Then press ’test’ (3). If an online connection with the b maXX device is generated, then
an according session (4) is shown. The shown version and the version of the device
have to match. If you press ’Connect’ (see
ZFigure 22– on page 40) and the versions
don’t match the error message ’version conflict’ will appear. This conflict can be solved
by the offered XML data update.
NOTE
In case there is no session for the present controller firmware version you need an update for
the WinBASS II / ProDrive program.
