Commissioning
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02
47
of 94
6
Parameterize en-
coder
Now parameters still have to be entered for the encoder.
9 Go back to the ProDrive Navigation .
10Click on the tab ’Startpage’
On the Startpage you can see, at which slot the encoder module is plugged in (resolver -
BM4-ENC-01 or sine-cosine - BM4-ENC-02).

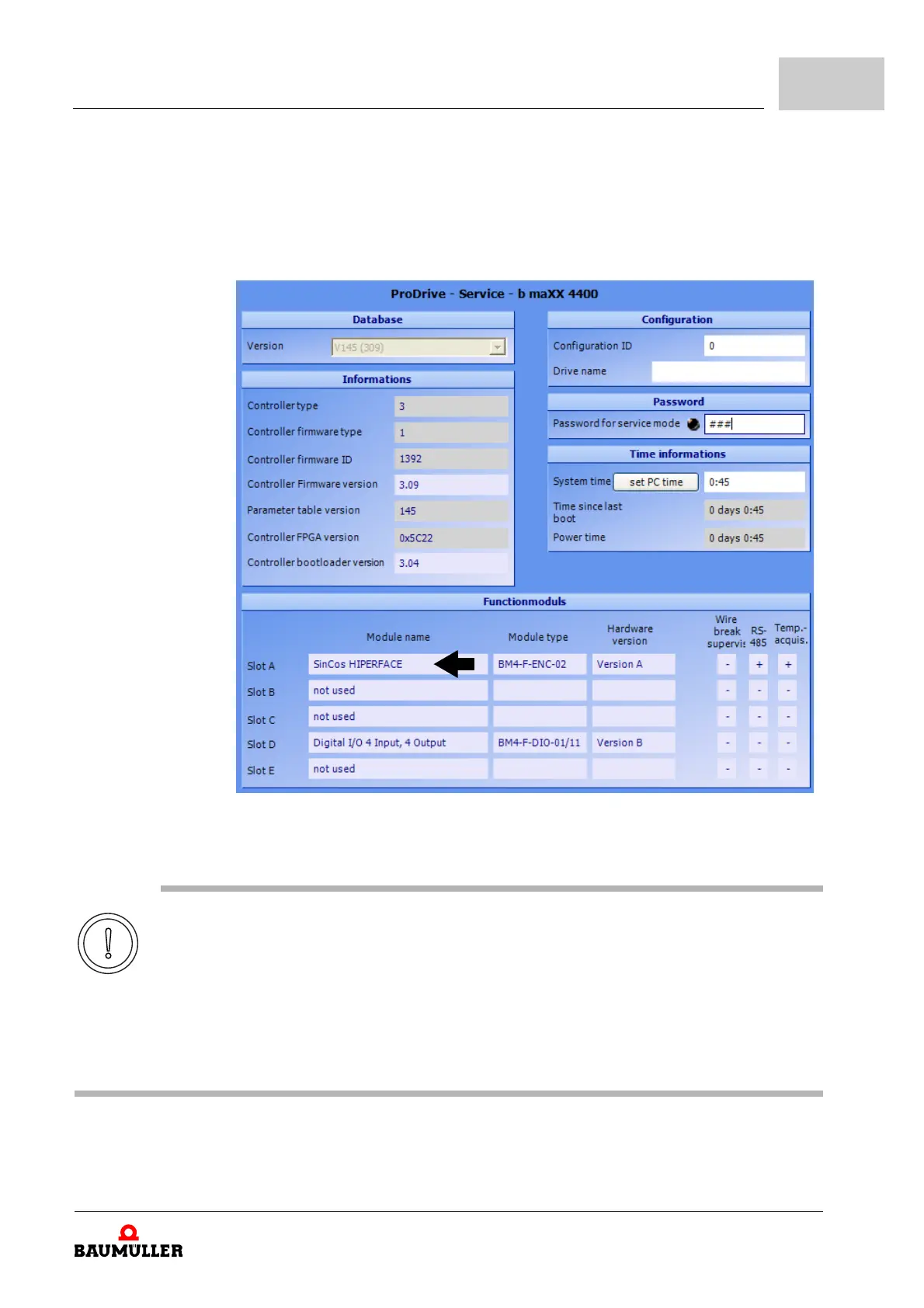

Figure 29: ProDrive: Startpage
11Check, if the plug-in modules were detected correctly.
12Go back to the ProDrive Navigation.
13Double-click on ’encoder’.
CAUTION
The following may occur, if you disregard these safety notes:
m Property damage
The danger is: errors in the hardware identification. The device in which the b maXX
®
4400
is installed, can be damaged or can work defective, if a module or more modules were not
recognized or were recognized wrong.
Cancel commissioning, if at least one plug-in module was not or was wrong recognized. Con-
tact Baumüller Nürnberg GmbH.
