Display elements - LED
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02 Baumüller Nürnberg GmbH
62
of 94
7.3
In the status error the error numbers are shown in the display. Only the errors are shown,
which enable an error reaction in the drive or have enabled one. Errors without reaction
and also warnings are not displayed.
First of all the display of error no. starts in showing for about 1.5 s „F“. Then, three digits
of the error code are displayed. The individual digits are displayed for about 0.8 s, inter
-
rupted by a short break. If there are further errors, they are displayed according to the
same principle. The procedure recurs, as soon as all errors have been displayed.

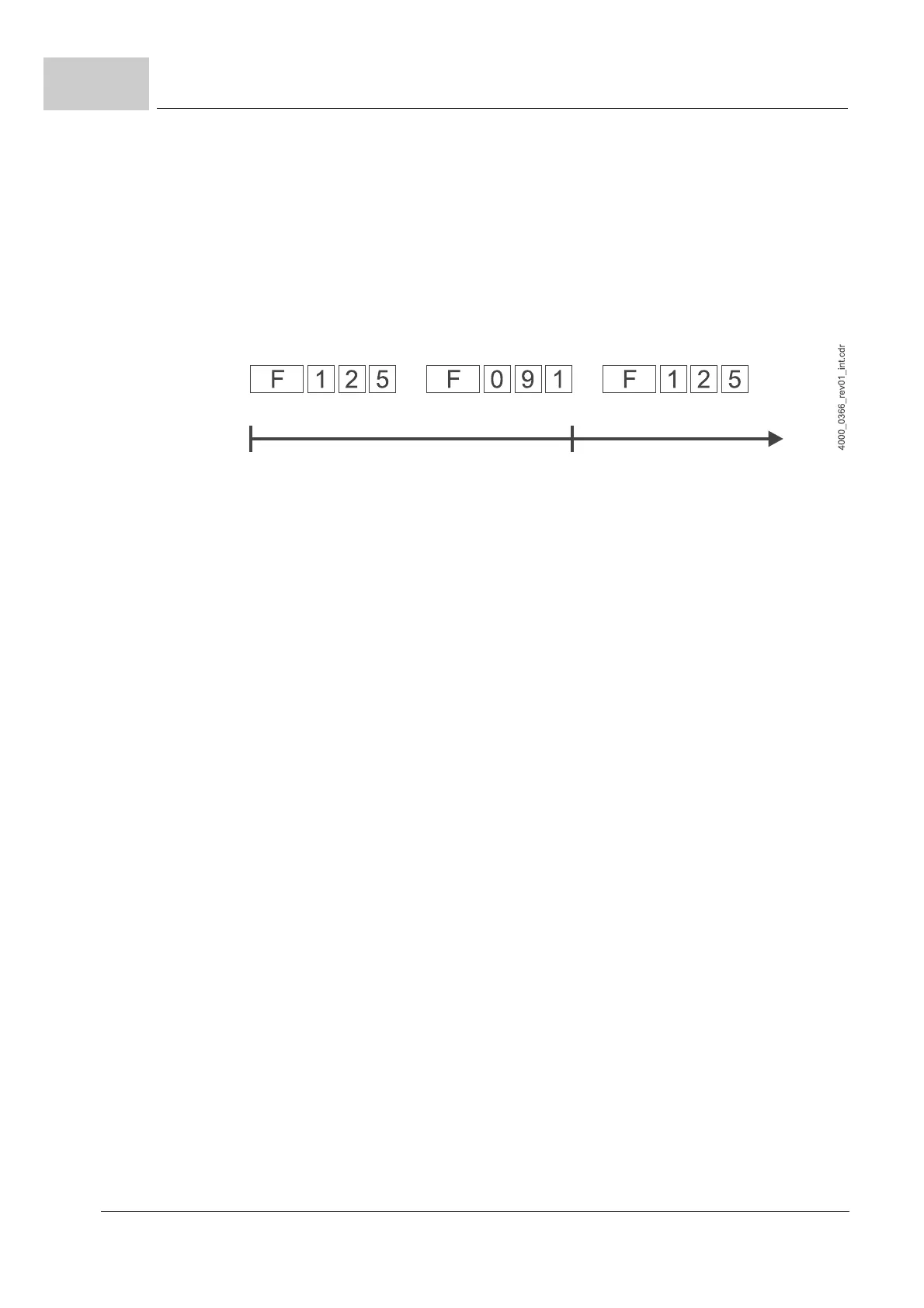

Example: Error 125 and 91 are existing:
If the mains voltage and the 24-volt supply is applied to the device after the electric instal-
lation has been completed, then, at least the LEDs should flash and the 7-segment dis-
play should show a status.
S
tart End Time
E
rror
o
utput
