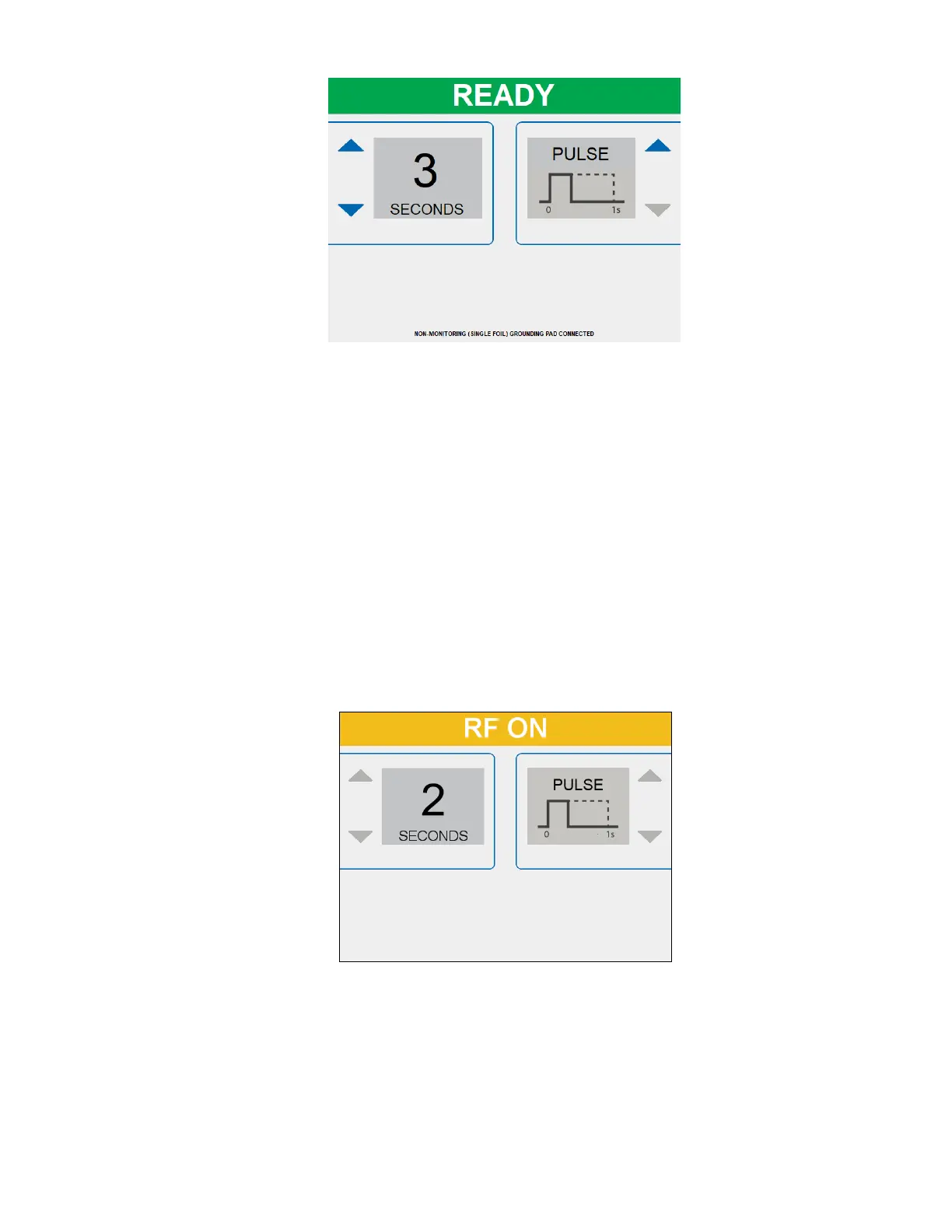

Figure 6-4b- READY State Display with Single Dispersive Electrode
6.4. ON State
• The ON State is initiated from the Ready State by either pressing the RF ON/OFF
button OR by pressing and holding the FOOTSWITCH.
• TIME and CUT setting adjustment is disabled (adjustment soft key function is
grayed out).
• Audible Tone synchronized with RF energy is heard.
• TIME counts up from 0 seconds.
• RF energy delivery is terminated by one of the following:
o when the set TIME is reached
o when the RF ON/OFF button is pressed
o when the FOOTSWITCH is released
o when there is an ALERT or ERROR condition.
Figure 6-5- ON State Display
6.5. ALERT
• An ALERT is presented when an alert condition is met in STANDBY, READY, or
ON States.
