DS-RPC OWNER’S MANUAL
CABLING
__________________________________________________________________________________________
17
IMPORTANT: Use crossed RJ-45 cables when using modular
connectors to interface the DS-RPC to another BayTech product with
modular connectors, such as the RPC Remote Power Control Unit.
1
2
3
4
5
6
7
8 8
7
6
5
4
3
2
PIN
RJ-45RJ-45
CONDUCTOR
BLUE
ORANGE
BLACK
RED
GREEN
YELLOW
BROWN
GRAY
PIN
1
GRAY
BROWN
YELLOW
GREEN
RED
BLACK
ORANGE
BLUE
COLOR
COLOR

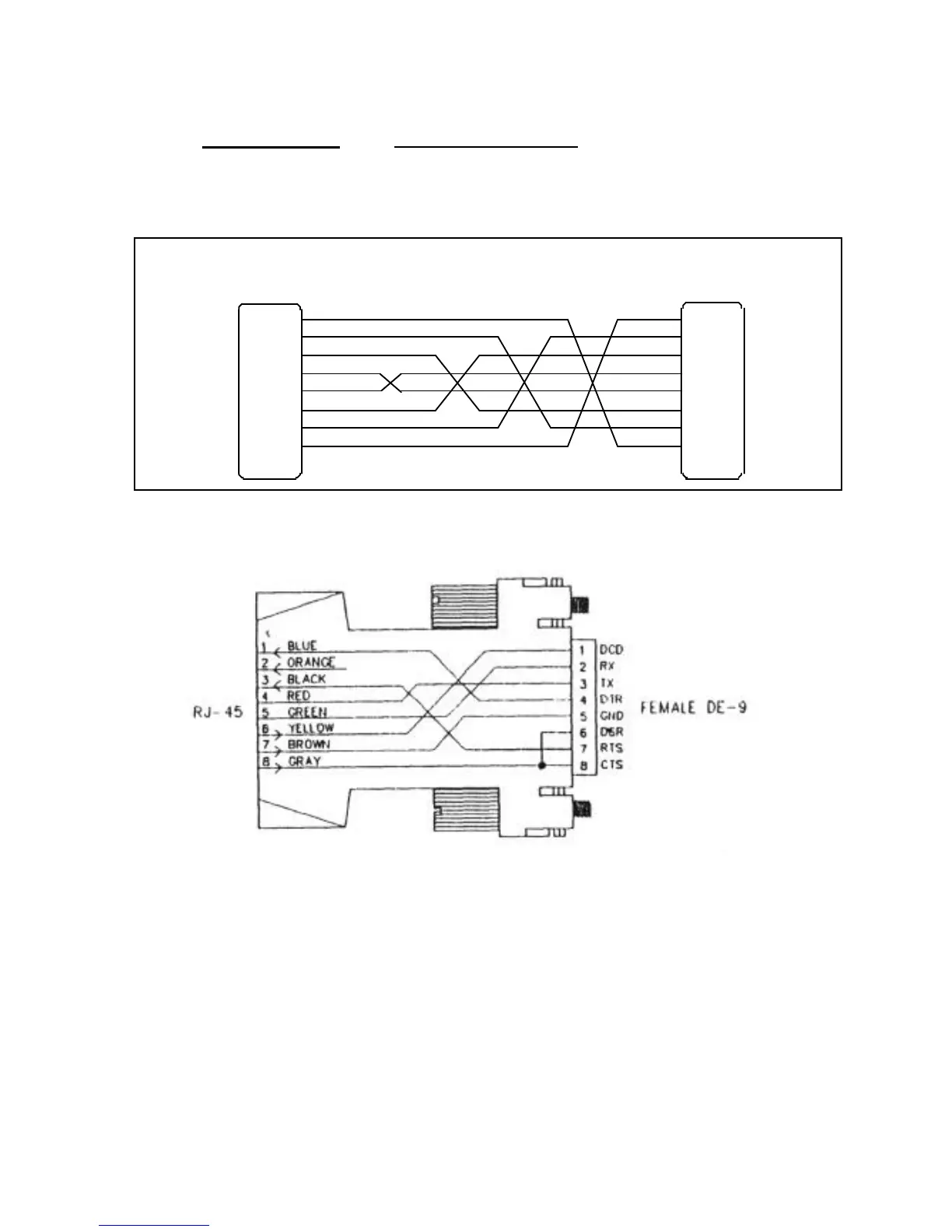

Fig 4: Crossed 8-pin Modular Cable
BayTech Part No. RJ08X007
Fig 5: DE-9 PC Serial Port Adapter
BayTech Part No. 9FRJ45PC4
