MX610HD User’s Manual
24 MX610HD User’s Manual

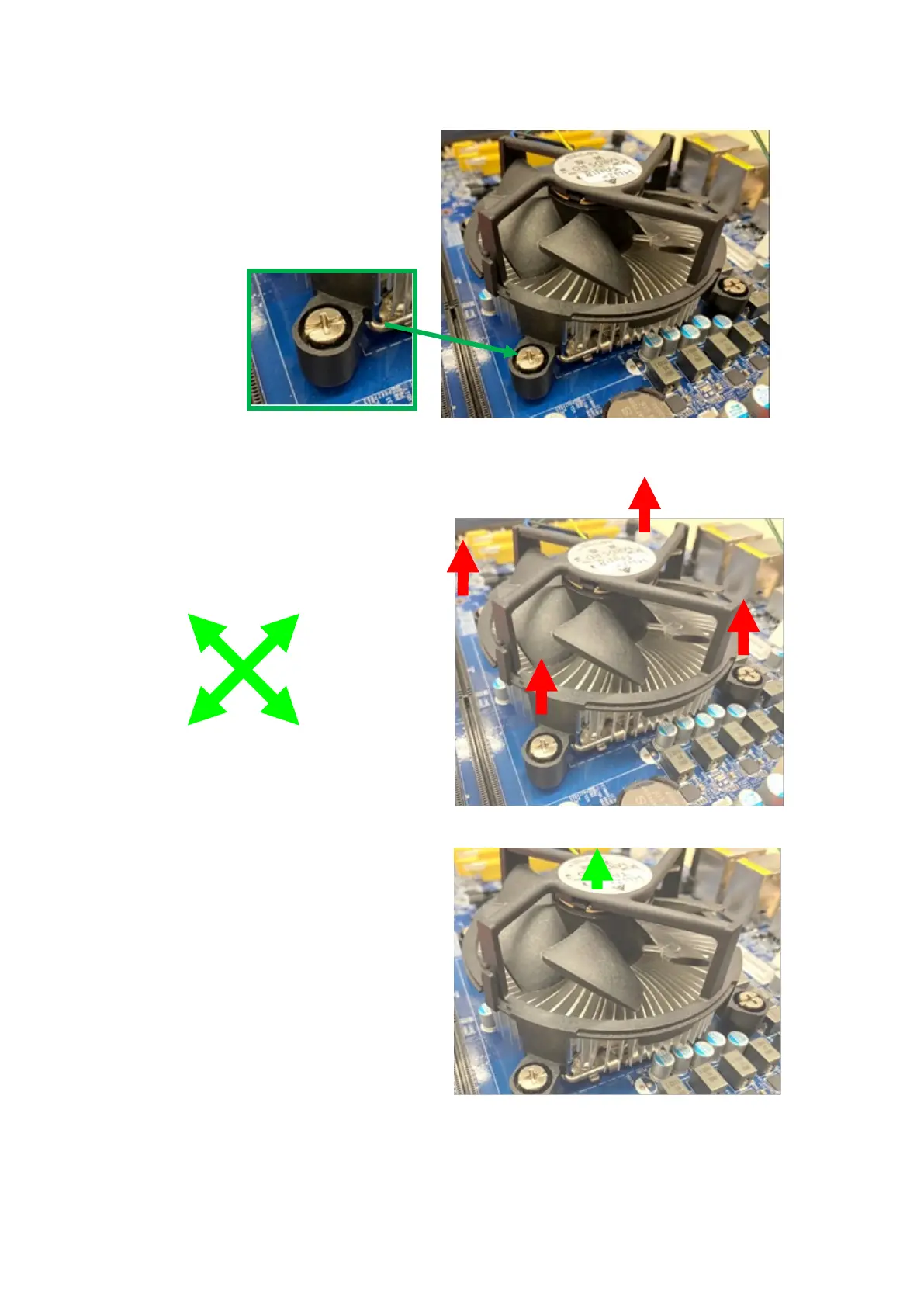

2. Rotate each fastener counterclockwise
3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan
assembly from the motherboard.
4. Carefully remove the heatsink and fan
assembly from the motherboard.
B
A
B
A
A
B
B
A
