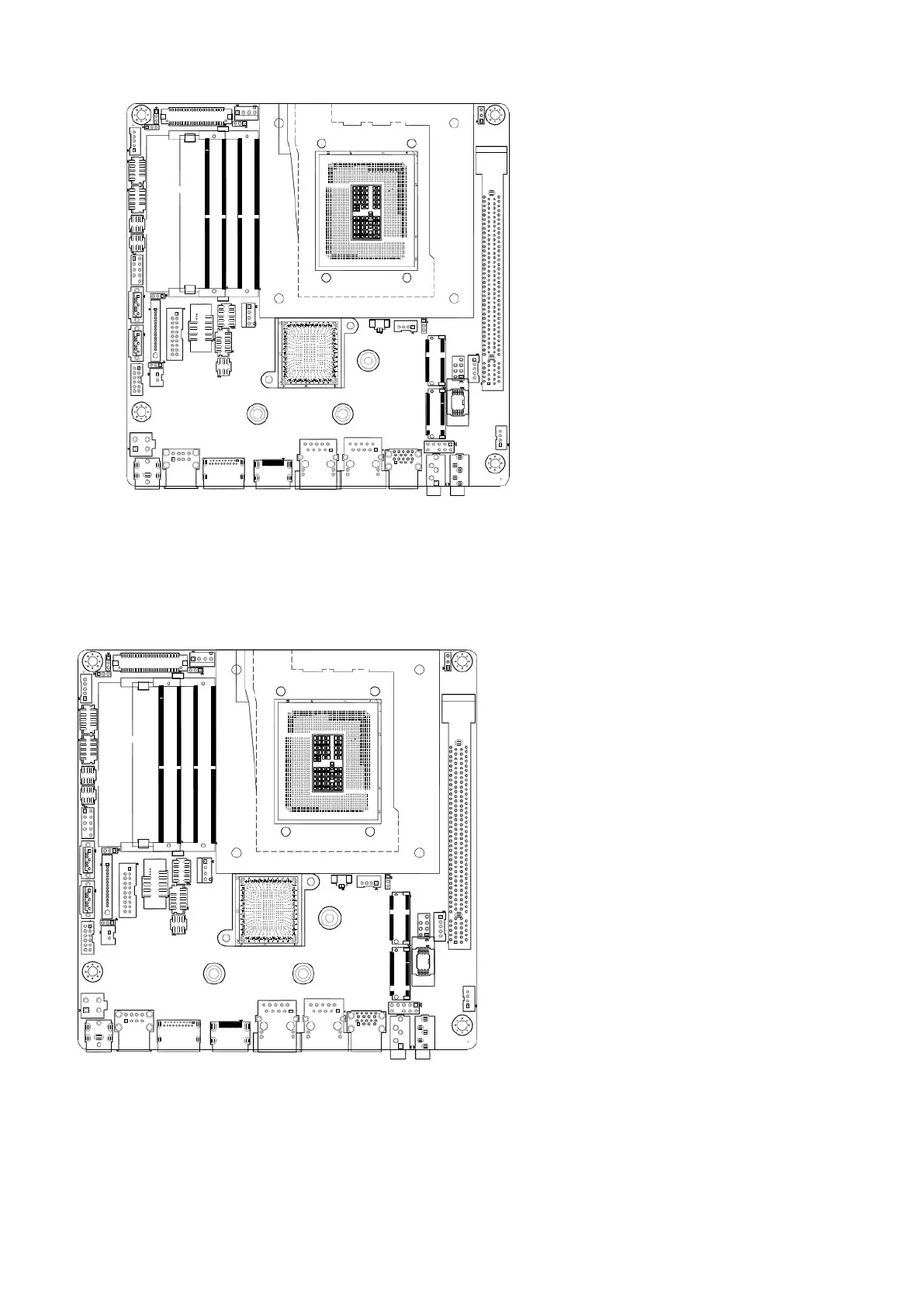

1.5.4 M.2 connector
Support PCIe, SATA and USB interface of this connector.
M.2 E key
1x M.2 2242/2280/22110 M Key NVMe (PCIe x4 + SATA III)
1 x M.2 2230 E Key with CNVi Support (PCIe x 1 + USB 2.0)
M.2 M key
Slot1
Slot1: Gen 4 PCIe x16
