 Flash Protection Range Registers(FPRR) [Disabled]
Enabled Flash Protection Range Registers
Configuration options: [Disabled][Enabled]
 GPIO Group Control [Disabled]
Configure the digital GPIO pins
Configuration options: [Disabled][Enabled]
 Amplifier GAIN(db) [15.3db]
Select Amplifier GAIN value
Configuration options: [15.3db][21.2db][27.2db][31.8db]

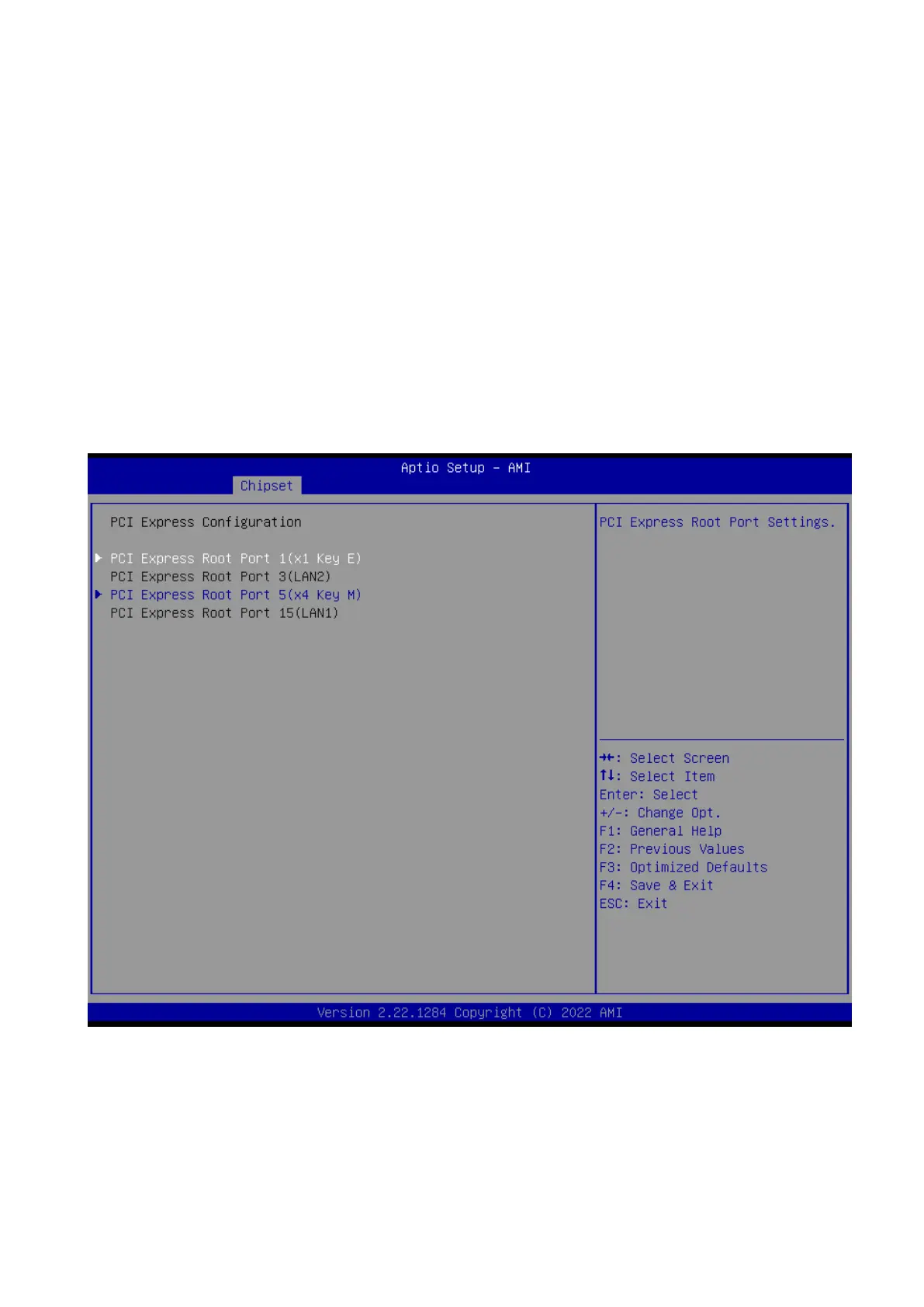

2.5.2.1 PCI Express Configuration
