BCM MX610HD - PCH-IO Configuration

MX610HD User’s Manual
74 MX610HD User’s Manual

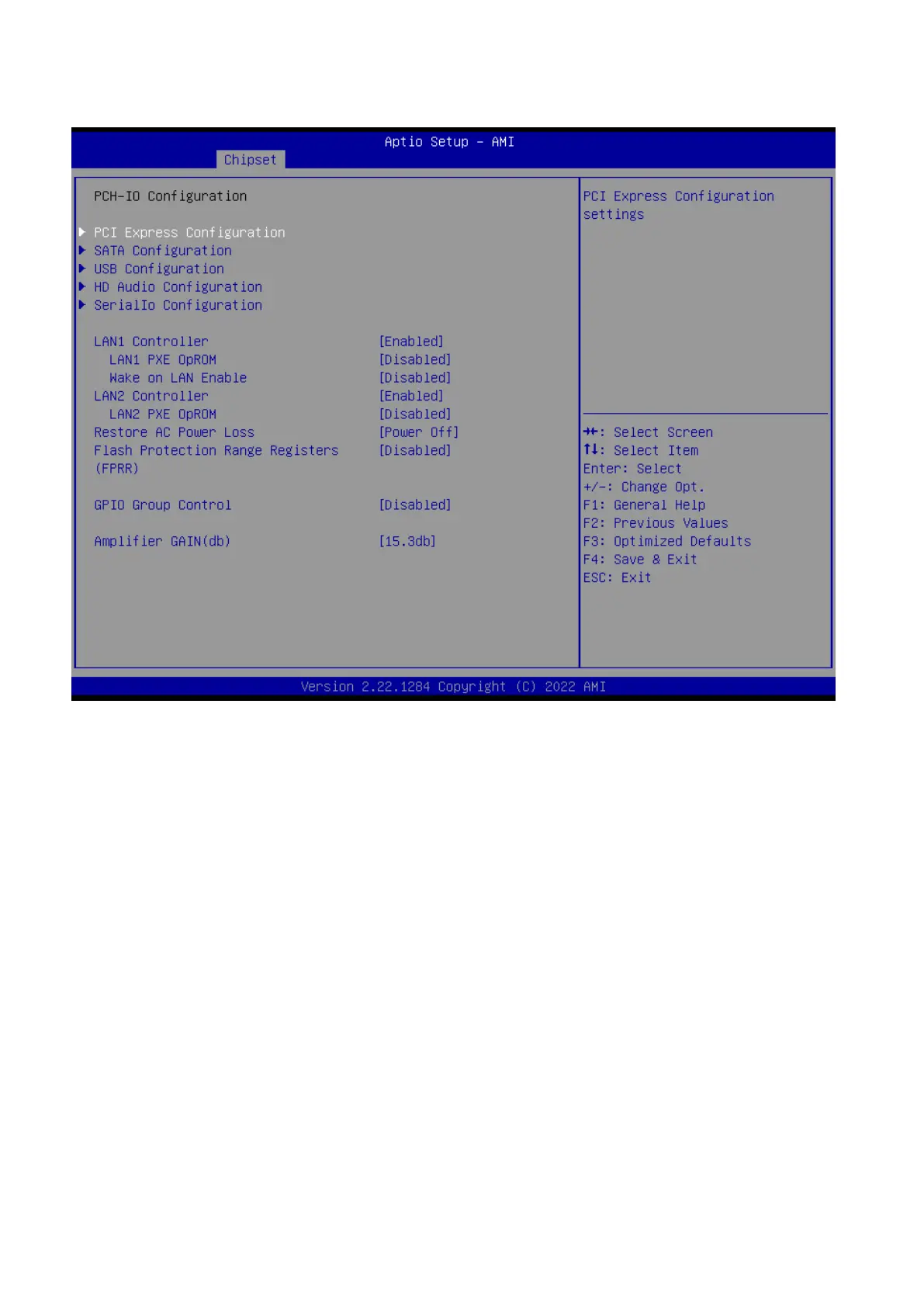

2.5.2 PCH-IO Configuration
 Lan1 Controller [Enabled]
Enable or Disable onboard LAN1
Configuration options: [Disabled][Enabled]
 Lan1 PXE OpROM [Disabled]
Enabled or Disabled boot option for LAN1 controller
Configuration options: [Disabled][Enabled]
 Wake on LAN Enabled[Disabled]
Enable or Disable integrated LAN to wake the system
Configuration options: [Disabled][Enabled]
 Lan2 Controller [Enabled]
Enable or Disable onboard LAN2
Configuration options: [Disabled][Enabled]
 Lan2 PXE OpROM [Disabled]
Enabled or Disabled boot option for LAN2 controller
Configuration options: [Disabled][Enabled]
 Restore AC Power Loss[Power off]
Specify what state to go to when power is re-applied after a power failure
Configuration options: [Power on][Power off][Last State]
