BCM MX610HD - Serial Port 1 Configuration

MX610HD User’s Manual
54 MX610HD User’s Manual

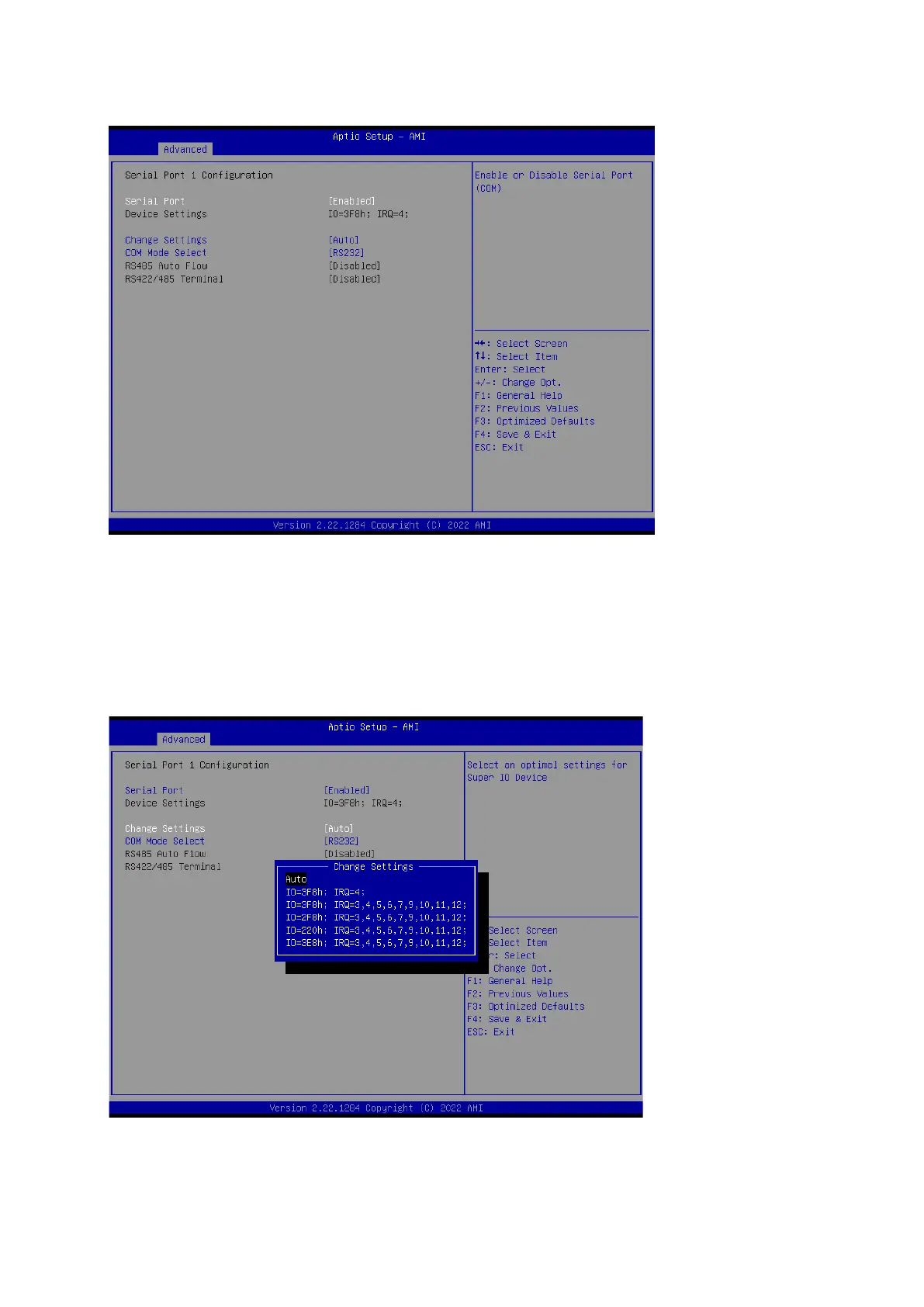

2.4.6.1 Serial Port 1 Configuration
 Serial Port [Enabled]
Enable or Disable serial Port (COM)
Configuration options: [Disabled] [Enabled]
 Change Setting [Auto]
Select an optimal settings for super IO device
Configuration options: as below
 COM mode Select [RS232]
Configure the COM port Mode
Configuration options: [RS232] [RS485 Half Duplex][RS422 Ful Duplex]
