BCM MX610HD - Chassis Intrusion Connector (JCASE1); LVDS Panel Connector (LVDS1)

MX610HD User’s Manual
MX610HD User’s Manual
41

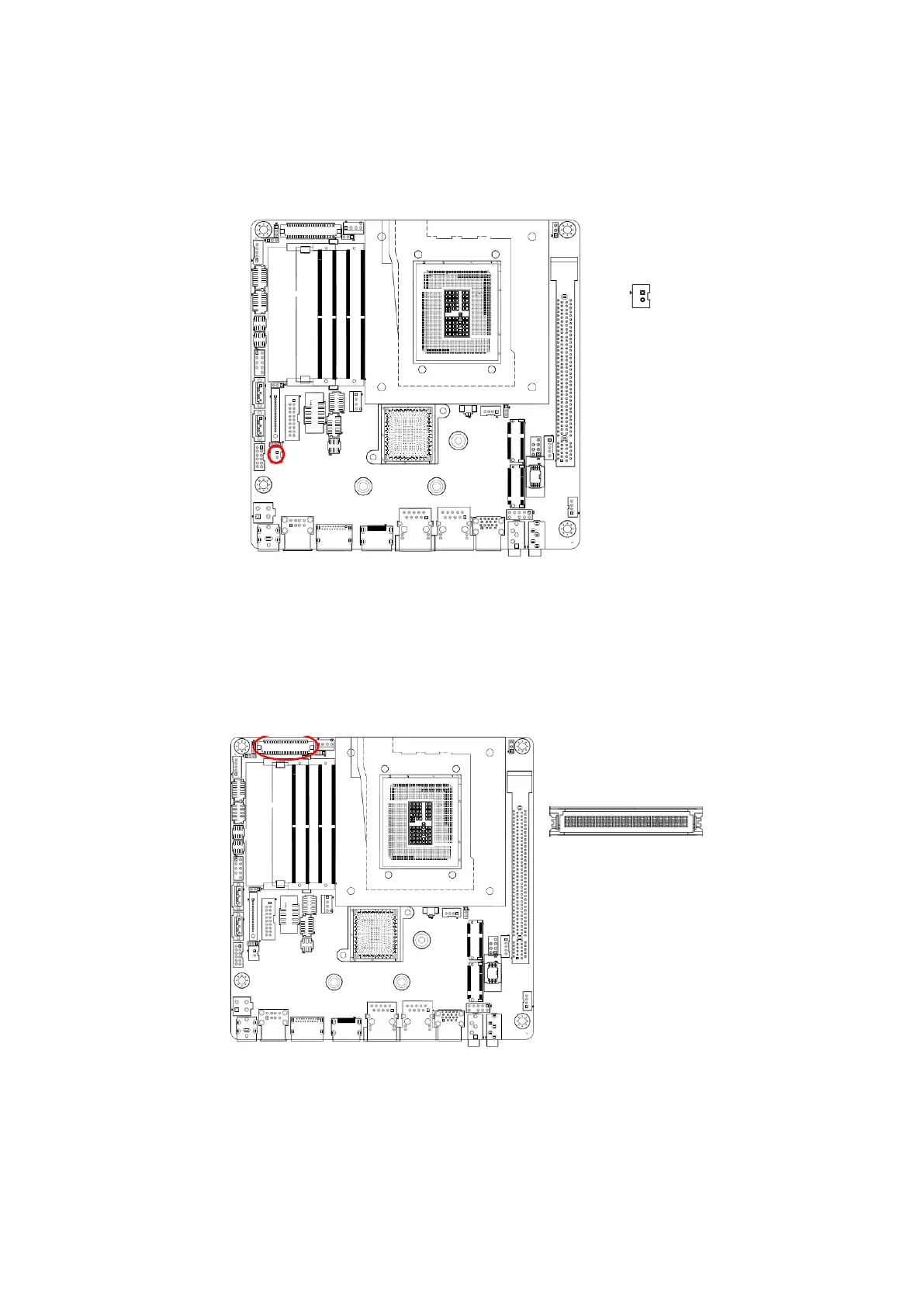

1.7.14 Chassis intrusion connector (JCASE1)
This connector allow user to connect a sensor in system case. Once the chassis is opened,
system will alert user or administrator.
1
1. SIO_CASEOPEN#
2. GND
1.7.15 LVDS panel connector (LVDS1)
39. VDD_+12V
37
. GND
35. LVDS_B_CLK-
33. LVDS_B_CLK+
31. GND
29. LVDS_B3-
27. LVDS_B3+
25. GND
23. LVDS_B1-
21. LVDS_B1+
19. GND
17. LVDS_A3-
15. LVDS_A3+
13. GND
11. LVDS_A1-
9. LVDS_A1+
7. GND
5. DDC_CLK
3. VDD_+3.3V
1. VDD_+3.3V
40. VDD_+12V
38. GND
36. LVDS_A_CLK-
34. LVDS_A_CLK+
32. GND
30. LVDS_B2-
28. LVDS_B2+
26. GND
24. LVDS_B0-
22. LVDS_B0+
20. GND
18. LVDS_A2-
16. LVDS_A2+
14. GND
12. LVDS_A0-
10. LVDS_A0+
8. GND
6. DDC_DATA
4. VDD_+5V
2. VDD_+5V
1
2
