MX610HD User’s Manual
40 MX610HD User’s Manual

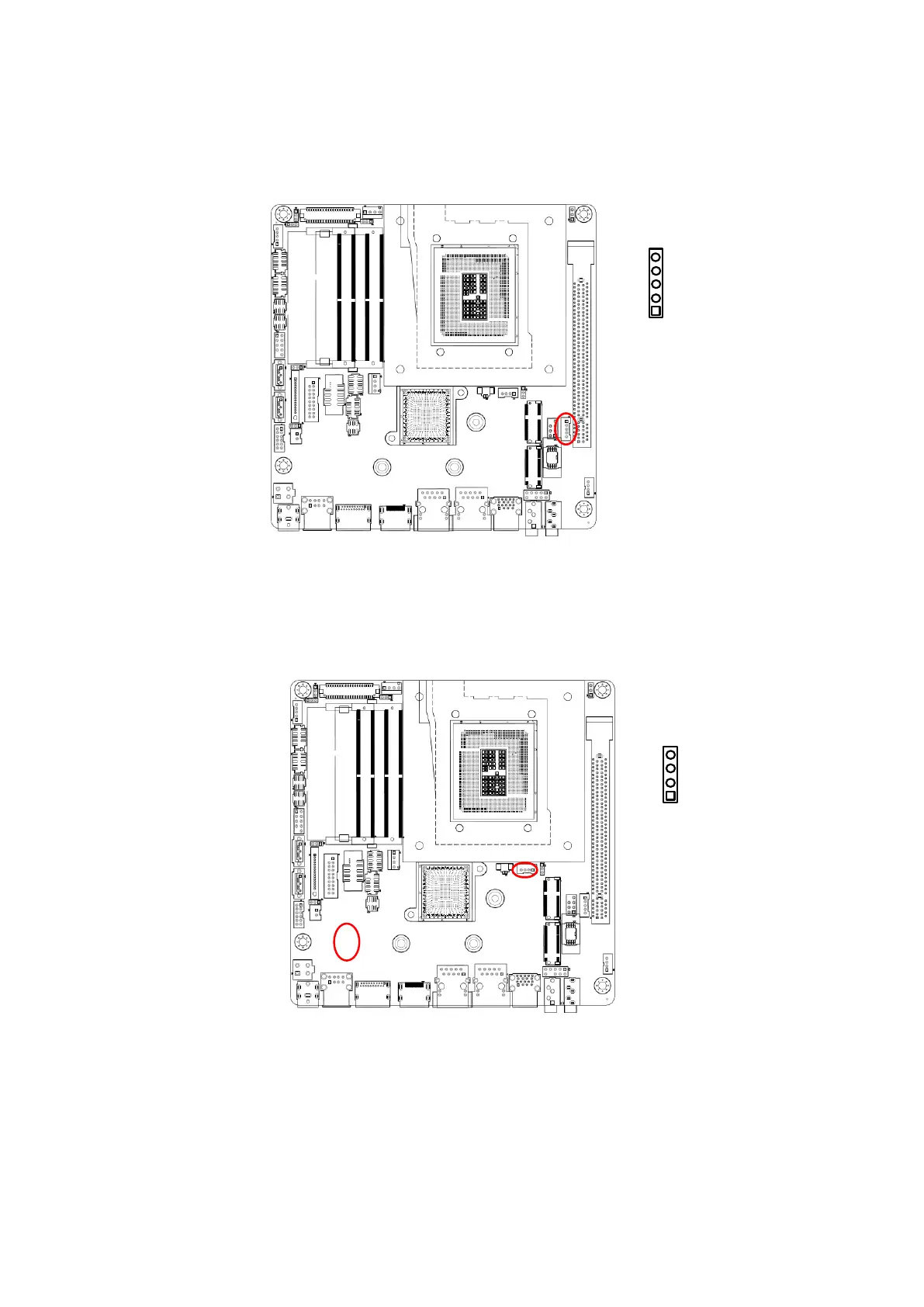

1.7.12 SM bus connector (SMB1)
1.7.13 I2C connector (I2C1)
1
4. GND
3. I2C_SDA
2. I2C_SCL
1. +3.3V
1
5. 3.3V
4. GND
3. SMB_ALT
2. SMB_DATA
1. SMB_CLK
