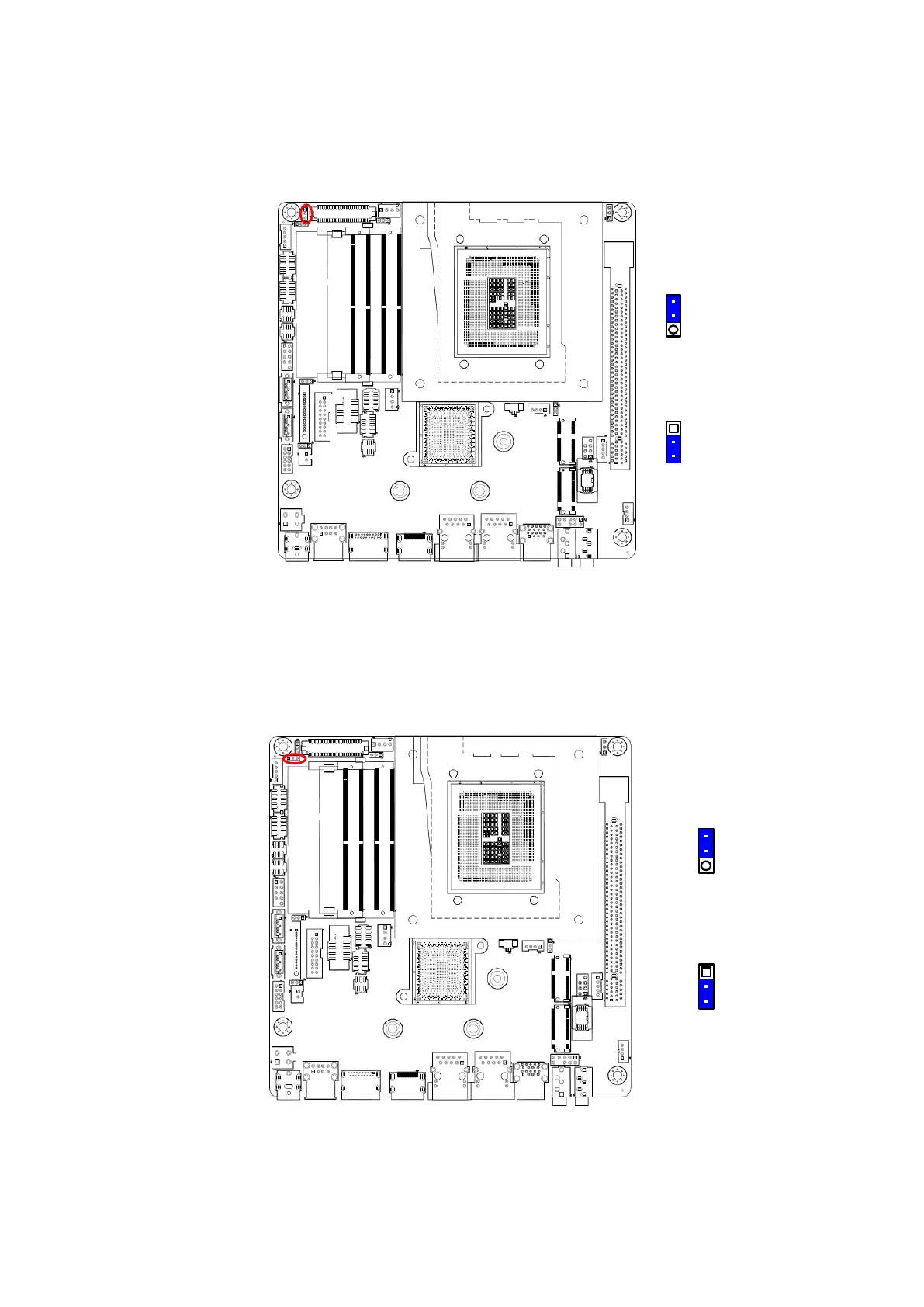

1.6.4 LVDS backlight voltage selection (JBKLVOL)
This jumper allows you to select 3V or 5V for LVDS backlight
+5V
+
3V
1
1
1.6.5 LVDS brightness control mode selection (JLVDS_BKL1)
This jumper allows you to select control mode for LVDS backlight
PWM mode
DC mode
1
1
