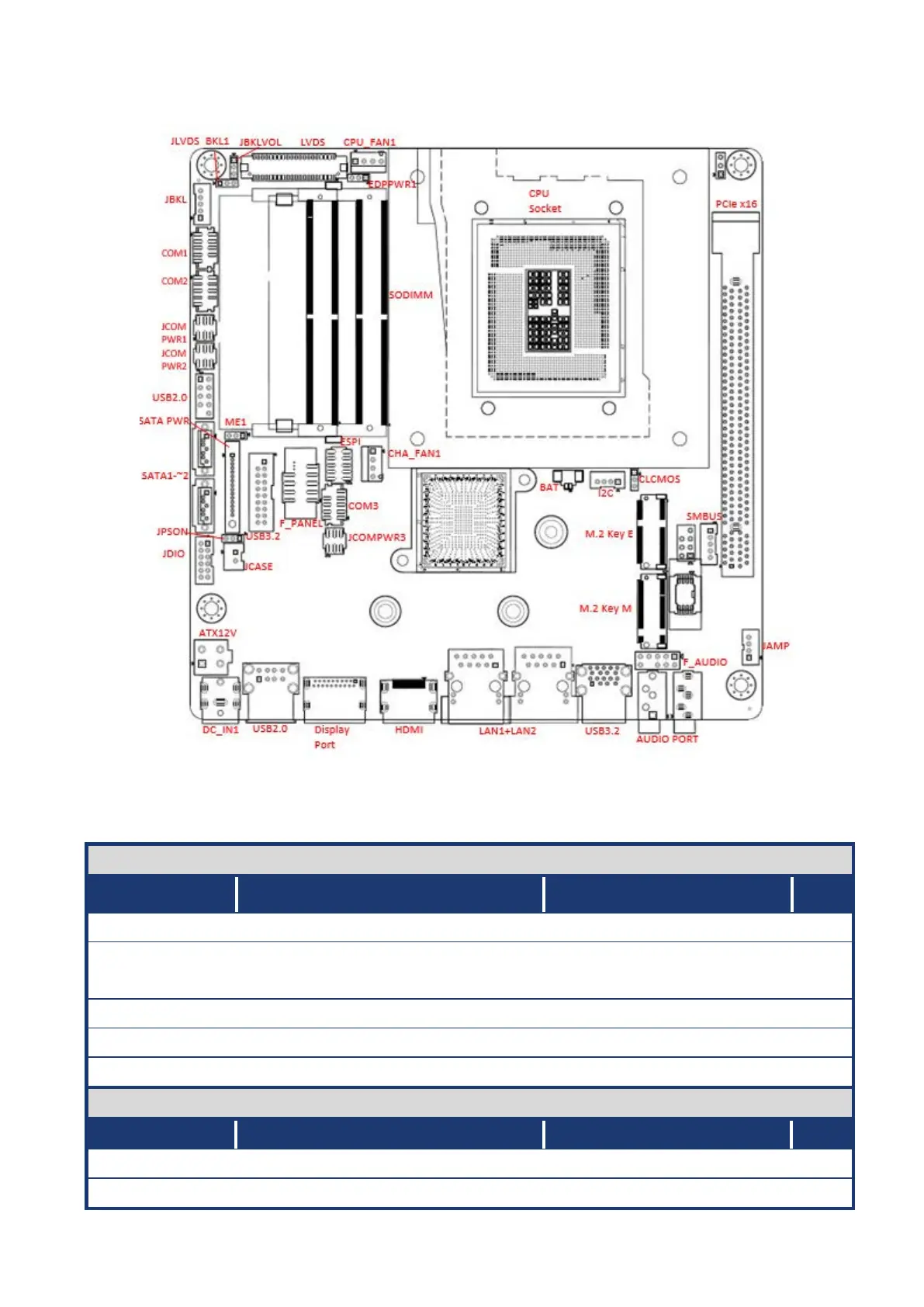

1.2.3 Motherboard Layout
1.2.4 Layout Content List
Slots & socket
Label Function Note
CPU1 LGA1700 CPU socket
SODIMMA1~B1 DDR5 SODIMM Slot Dual channel. (1 DIMMs per
channel)
PCIEX16_1
PCIe x16 Gen4
M2E1
M.2 key E slot
PCIEx1+USB interface
M2M_1 M.2 key M slot PCIEx4+SATA interface
Jumpers
Label
Function
Note
CLCMOS1
Clear CMOS
1 x 3 header, pitch 2.00mm
JPSON1 AT/ATX Mode setting 1 x 3 header, pitch 2.00mm
