MX610HD User’s Manual
MX610HD User’s Manual
61

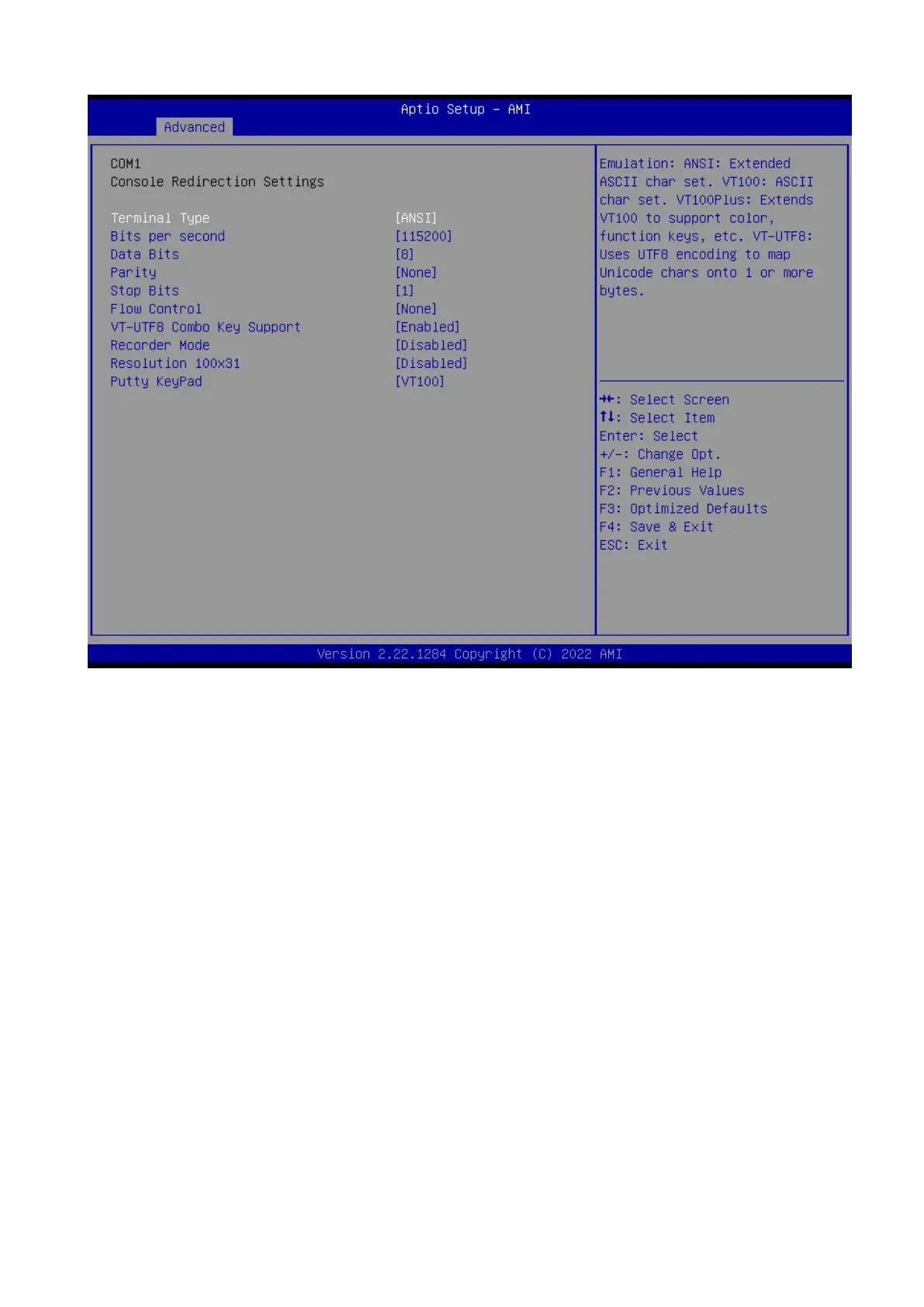

 Terminal Type[ANSI]
Select terminal type
Configuration options: [VT100][VT100Plus][VT-UTF8][ANSI]
 Bits per second[115200]
Select serial port transmission speed
Configuration options: [9600][19200][38400][57600][115200]
 Bits per second[115200]
Select data bits
Configuration options: [7][8]
 Parity[None]
A parity bit can be sent with the data bits to detect some transmission errors
Configuration options: [None][Even][Odd][Mark][Space]
 Stop Bits[1]
Stop bits indicate the end of a serial data package
Configuration options: [1][2]
 Flow Control[None]
Flow control can prevent data loss from buffer overflow.
Configuration options: [None][Hardware RTS/CTS]
 VT-UTF8 Combo key Support [Enabled]
