10
Part No. 6-847681-00 Rev. D
Rough-In Installation
Vertical Structural
Member (wall stud)
Horizontal supports
(supplied by others)
Copper Extension
Tubes

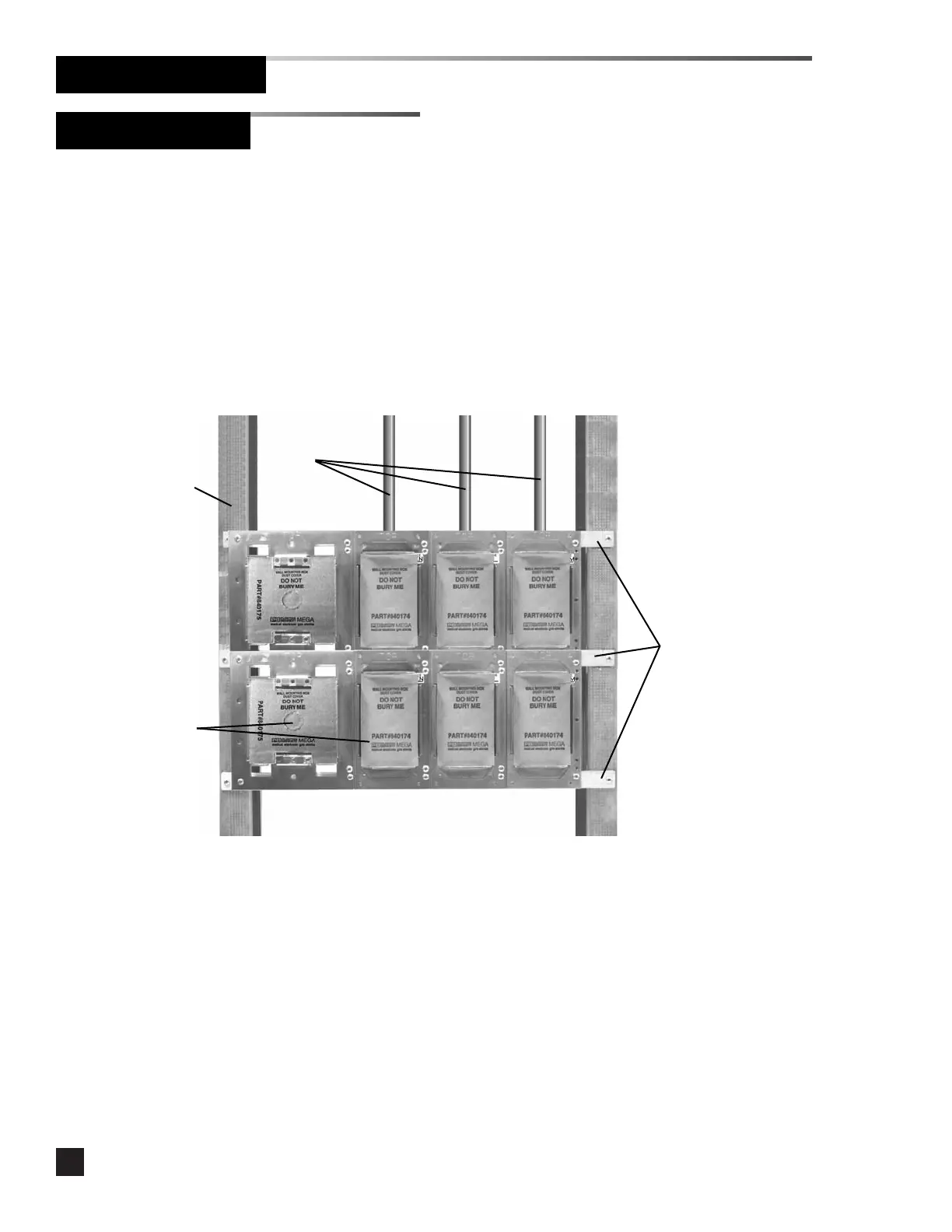

Figure 6. Rough-In Installation
Dust
Covers
1. Prepare a rough wall opening large
enough to accommodate the rough-in
assembly. The opening must have rigid
horizontal members to support the rough-
in assembly. Refer to Figure 6.
2. Insert the rough-in assembly into the wall
opening and secure in place with
fasteners suitable for the horizontal
support materials.
Mount Alarm Panel
