Wiring Installation
Wiring Requirements and Routing
• Two conductors are required from each signal
switch to each master alarm. Refer to
Schematics 3 and 6.
•Two conductors are required from each
remote sensor module to its corresponding
digital display module. Refer to Schematics
2 and 5.
•If alarms are to be networked, two conductors
are required to daisy-chain between power
supplies. Refer to Schematic 10.

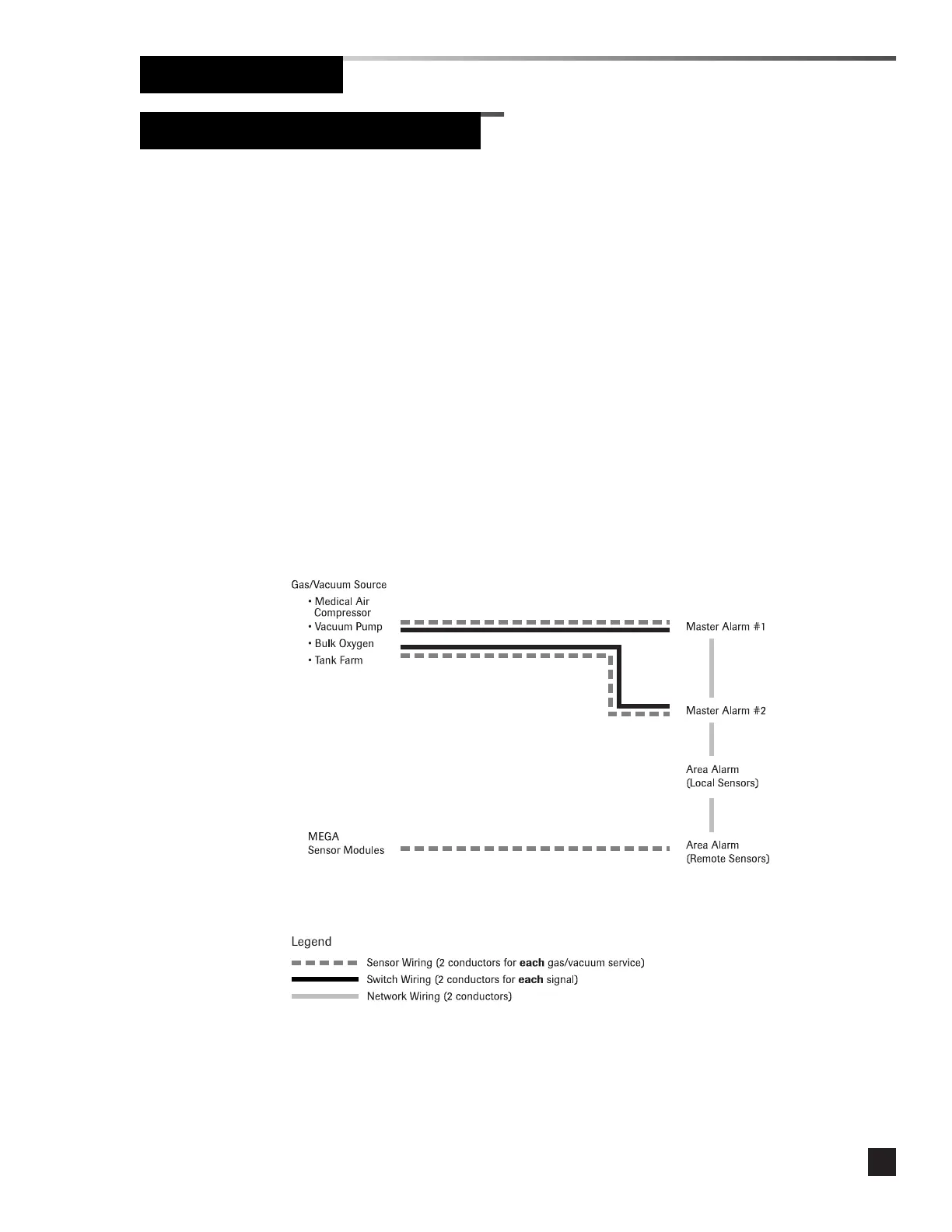

Figure 9. Wire Routing Diagram
•If pressure/vacuum data transmission is used,
two conductors are required between the two
digital display modules. Refer to Schematic
4.
•If a computer interface relay module is used,
two conductors are required from each
relayed signal to the computer interface relay
module. Refer to Schematic 7.
