Beacon MEGA - Computer Interface Relay Module; Multi-Signal Alarm Module

51
Part No. 6-847681-00 Rev. D
1
2
7
3
2
4
5
6

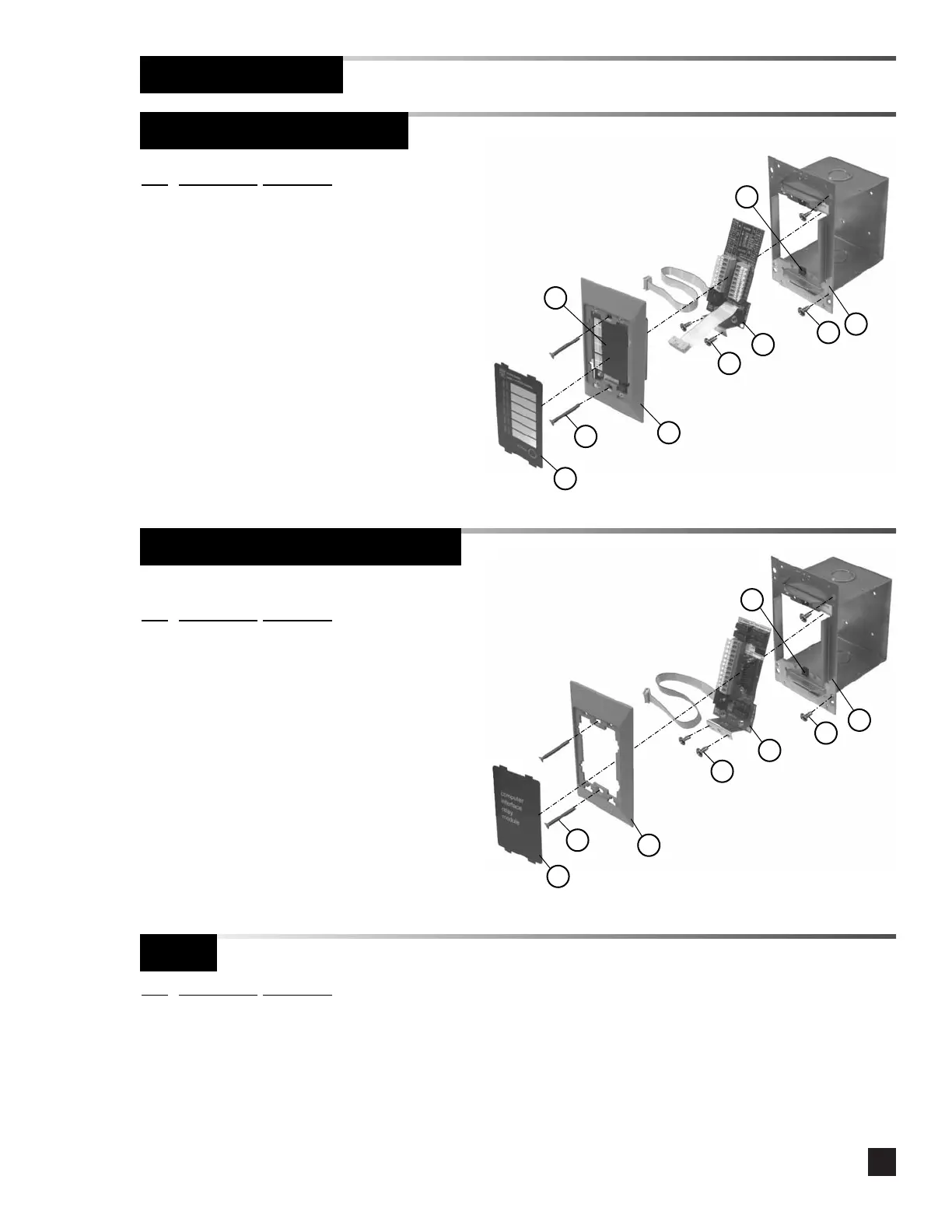

Replacement Parts
Multi-Signal Alarm Module
Computer Interface Relay Module
Item Part Number Description
6-129301-00 Multi-Signal Alarm Module (Complete)
1. 6-425427-00 Mounting Box
2. 6-814669-00 Screw #6-20 x 1/4" Pan-Head Self-Tapping
3. 6-231955-00 Interconnect Board
4. 6-290469-00 Display Chassis
5. 6-811065-00 Screw #6-32 x 1-1/2" Flat-Head (2 required)
6. 6-435516-00 Cover Plate
7. 6-435603-00 System Status Labels
8. 6-826005-00 “U”-Type Speed Nut #6-32 (2 required)
—6-425428-00End Cap (not shown)
Item Part Number Description
6-129312-00 Computer Interface Relay Module
1. 6-425427-00 Mounting Box
2. 6-814669-00 Screw #6-20 x 1/4" Pan-Head Self-Tapping
3. 6-231957-00 Interconnect Board with Relays
4. 6-325160-00 Trim Plate
5. 6-811065-00 Screw #6-32 x 1-1/2" Flat-Head (2 required)
6. 6-435604-00 Cover Plate
7. 6-826005-00 “U”-Type Speed Nut #6-32 (2 required)
—6-425428-00End Cap (not shown)
1
2
8
3
2
4
5
6
7
Other
Item Part Number Description
—6-435712-00Cover Plate (Blank)
—6-847681-00Installation, Operation, and Maintenance Instructions
