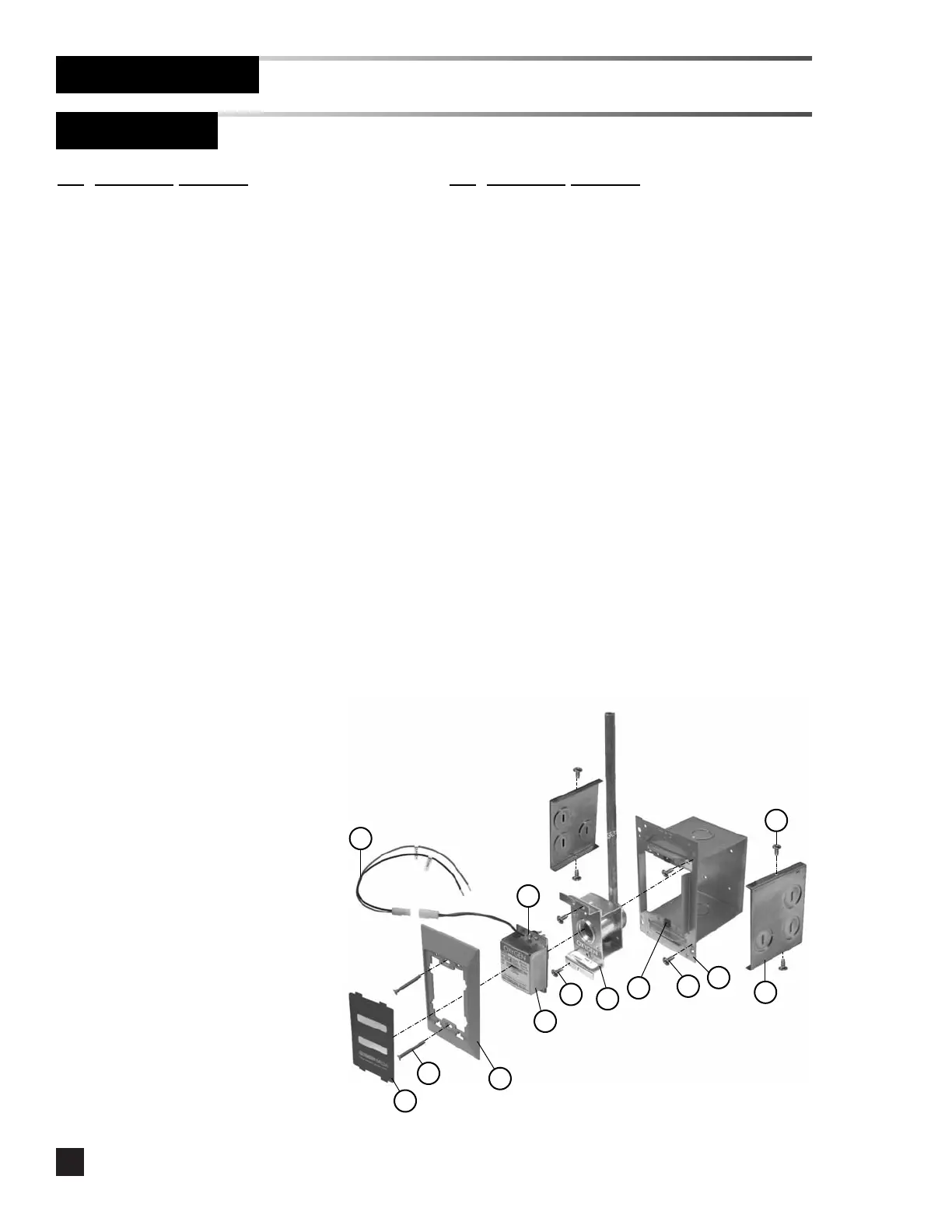

Replacement Parts
Sensor Module
Item Part Number Description
6-129280-00 Oxygen
6-129281-00 Nitrous Oxide
6-129282-00 Air
6-129283-00 Vacuum
6-129284-00 Nitrogen
6-129289-00 WAGD
6-129290-00 Carbon Dioxide
6-129291-00 Carbon Dioxide/Oxygen
6-129292-00 Oxygen/Carbon Dioxide
6-129293-00 Helium/Oxygen
6-129294-00 Oxygen/Helium
6-159280-00 Oxygen-International Labeling
6-159282-00 Air-International Labeling
6-159290-00 Vacuum-International Labeling
1. 6-425428-00 End Cap
2. 6-425427-00 Mounting Box
3. 6-814669-00 Screw #6-20 x 1/4" Pan-Head Self-Tapping
4. Gas Service Rough-In Assembly
6-233015-00 Oxygen-International Labeling
6-233016-00 Air-International Labeling
6-233017-00 Vacuum-International Labeling
6-233021-00 Carbon Dioxide/Oxygen
6-233022-00 Oxygen/Carbon Dioxide
6-233023-00 Helium/Oxygen
6-233024-00 Oxygen/Helium
6-233010-00 Oxygen
6-233011-00 Nitrous Oxide
6-233012-00 Air
6-233013-00 Vacuum
6-233014-00 Nitrogen
6-233019-00 WAGD
6-233020-00 Carbon Dioxide
5. Sensor (field replacement unit
- includes item 11)
6-231760-00 Oxygen
6-231761-00 Nitrous Oxide
6-231762-00 Air
6-231763-00 Vacuum
6-231764-00 Nitrogen
6-231769-00 WAGD
6-231770-00 Carbon Dioxide
6-231774-00 Oxygen/Helium
6-231773-00 Helium/Oxygen
6-231772-00 Oxygen/Carbon Dioxide
6-231771-00 Carbon Dioxide/Oxygen
6-231775-00 Oxygen-International Labeling
6-231776-00 Air-International Labeling
6-231777-00 Vacuum-International Labeling
6. 6-811610-00 Screw #6-32 x 3/4" Pan-Head (2 required)
7. 6-325160-00 Trim Plate
8. 6-811065-00 Screw #6-32 x 1-1/2" Flat-Head (2 required)
9. 6-435510-00 Cover plate
10. 6-826005-00 “U”-Type Speed Nut #6-32 (2 required)
11. 6-231935-00 Sensor Pigtail
1
2
3
10
4
3
5
8
9
7
3
6
Item Part Number Description
11
