RESERVE O2 VESSEL
PRESSURE LOW
RESERVE O2 VESSEL
PRESSURE LOW

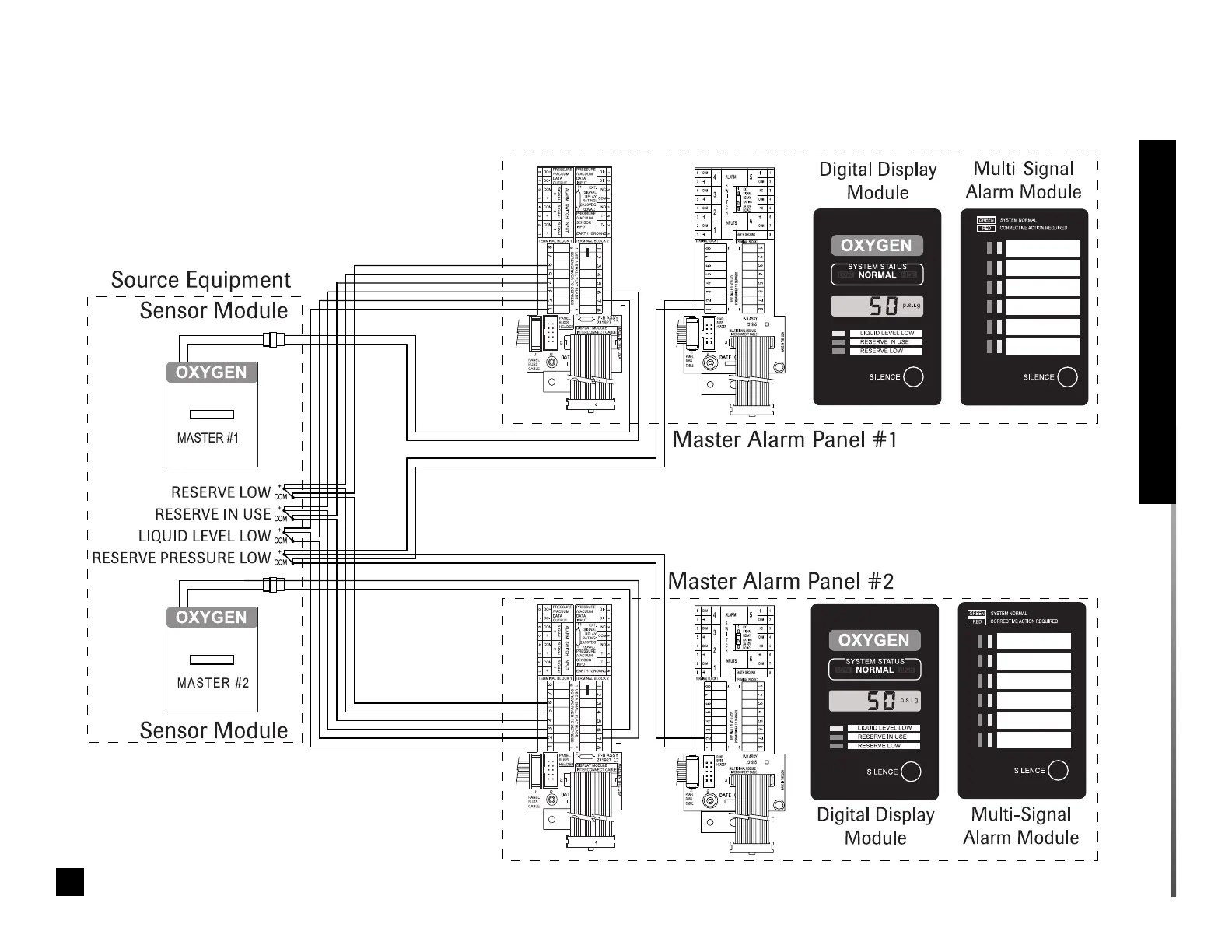

Example 1. Bulk Oxygen System With Reserve
Typical Master Alarm Wiring Examples
25
Part No. 6-847681-00 Rev. D

Table of Contents
