Beacon MEGA - Duplex Vacuum Pump System Wiring

Default Icon
52 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
+
+
Typical Master Alarm Wiring Examples

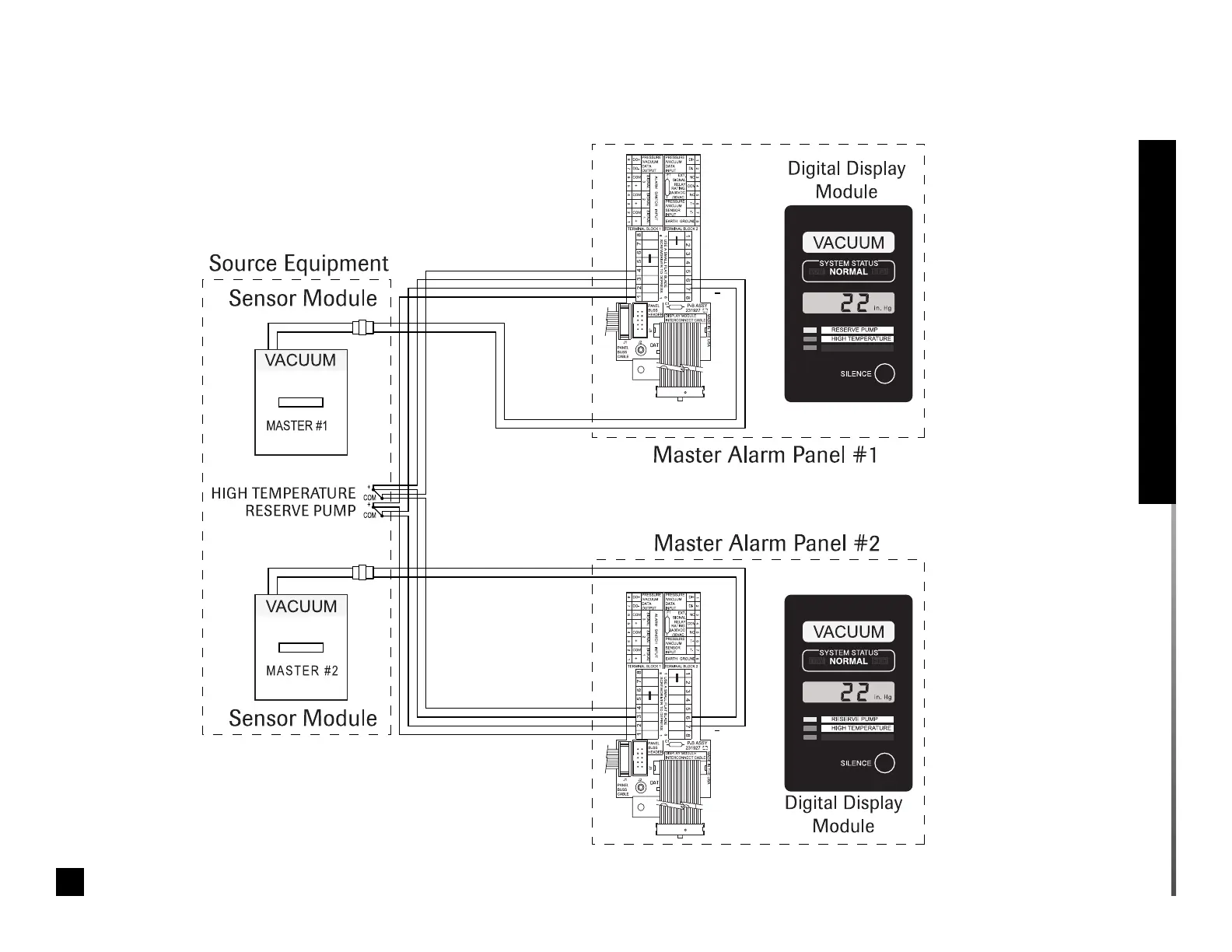

Example 5. Duplex Vacuum Pump System
Part No. 6-847681-00 Rev. D
29
