Beck IPC@CHIP Series User Manual

IPC@CHIP DK41 / DK51
Getting Started V2.2
© 2000-2004 Beck IPC GmbH Page 30 of 61

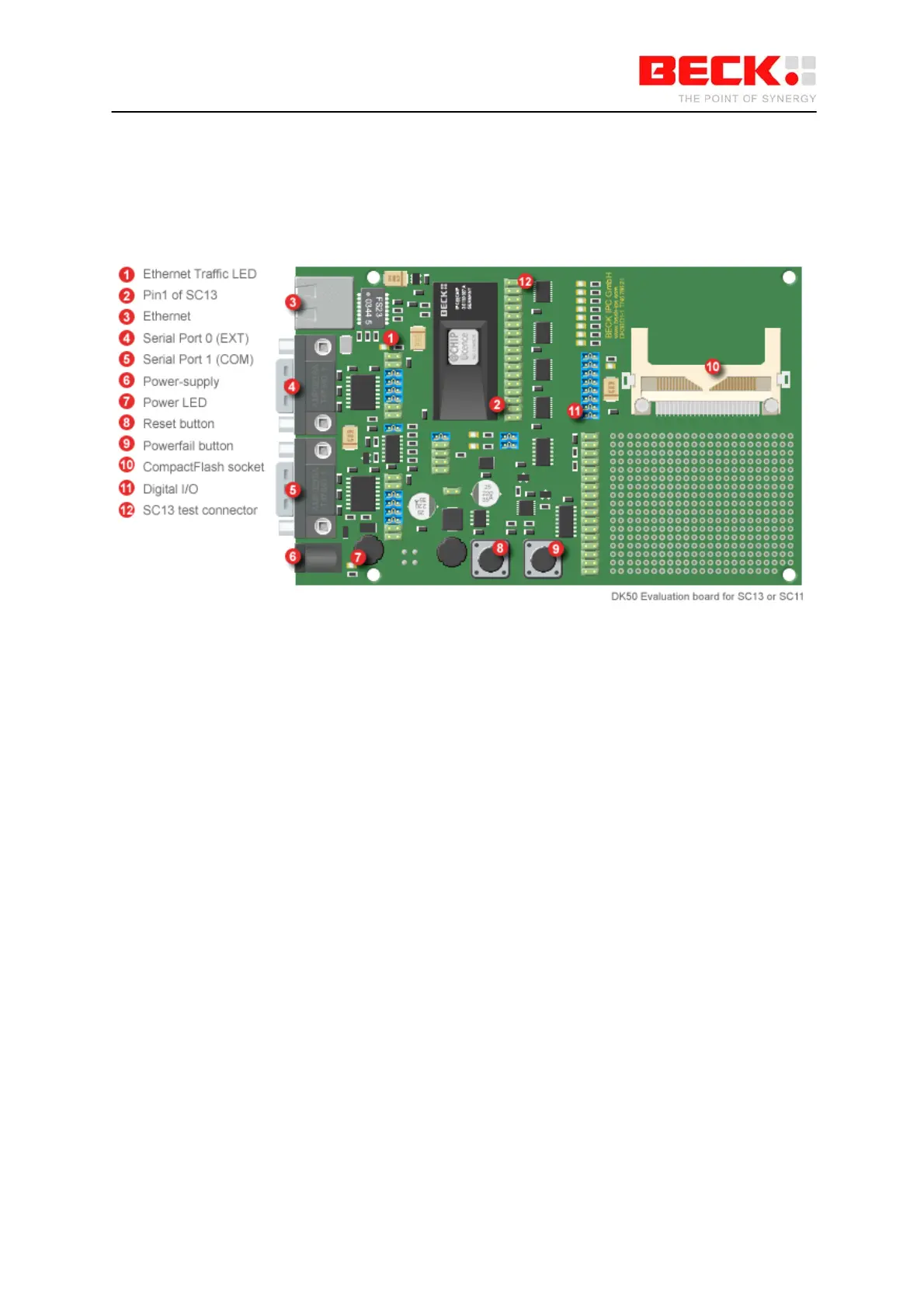

2.3.2 Step 1 – Switching on the DK50 Development Board
The DK50 Development Board is an evaluation platform for the Embedded Controller SC13 and SC11.
Among other functions, it provides two serial ports, an Ethernet interface, eight digital I/O, a ‘traffic’
LED, CompactFlash Socket and a switching DC/DC converter.
The AC power supply (PSE10) is delivered with country specific AC adapters. Please choose the right
adapter for your country. Then connect the AC power supply to your main supply and to the DK50
Development Board. The Power LED (7) will light up and Traffic LED will light up for less than half a
second.
