Operation
EL691036 Version: 1.4.1

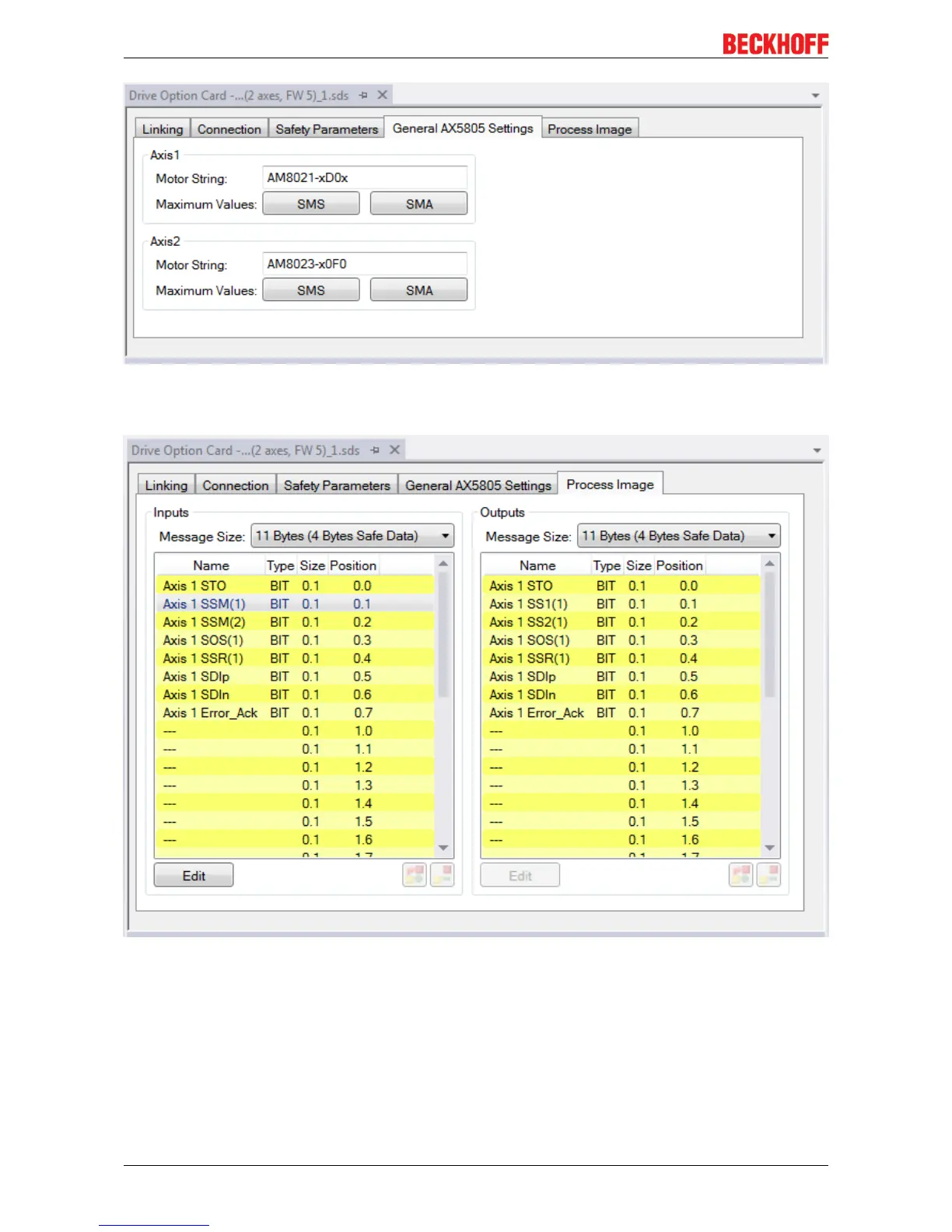

Fig.28: AX5000 safety drive options - general AX5805 settings
The Process Image tab can be used to set the different safety functions for the AX5805.
Fig.29: AX5000 safety drive options - Process Image
The parameters under the General AX5805 Settings and Process Image tabs are identical to the parameters
under the Safety Parameters tab. Offers user-friendly display and editing of the parameters. The parameters
under the Safety Parameters tab can also be edited.
The parameters for this function can be set by selecting a function in the inputs or outputs and pressing the
Edit button. New safety functions can be added in the process image by selecting an empty field (---) and
pressing Edit.
The parameter list corresponding to the safety function can be shown; in addition, an optional diagram of the
function can be shown. At present the diagram is still static and does not show the currently selected values.
