Operation
EL6910 65Version: 1.4.1

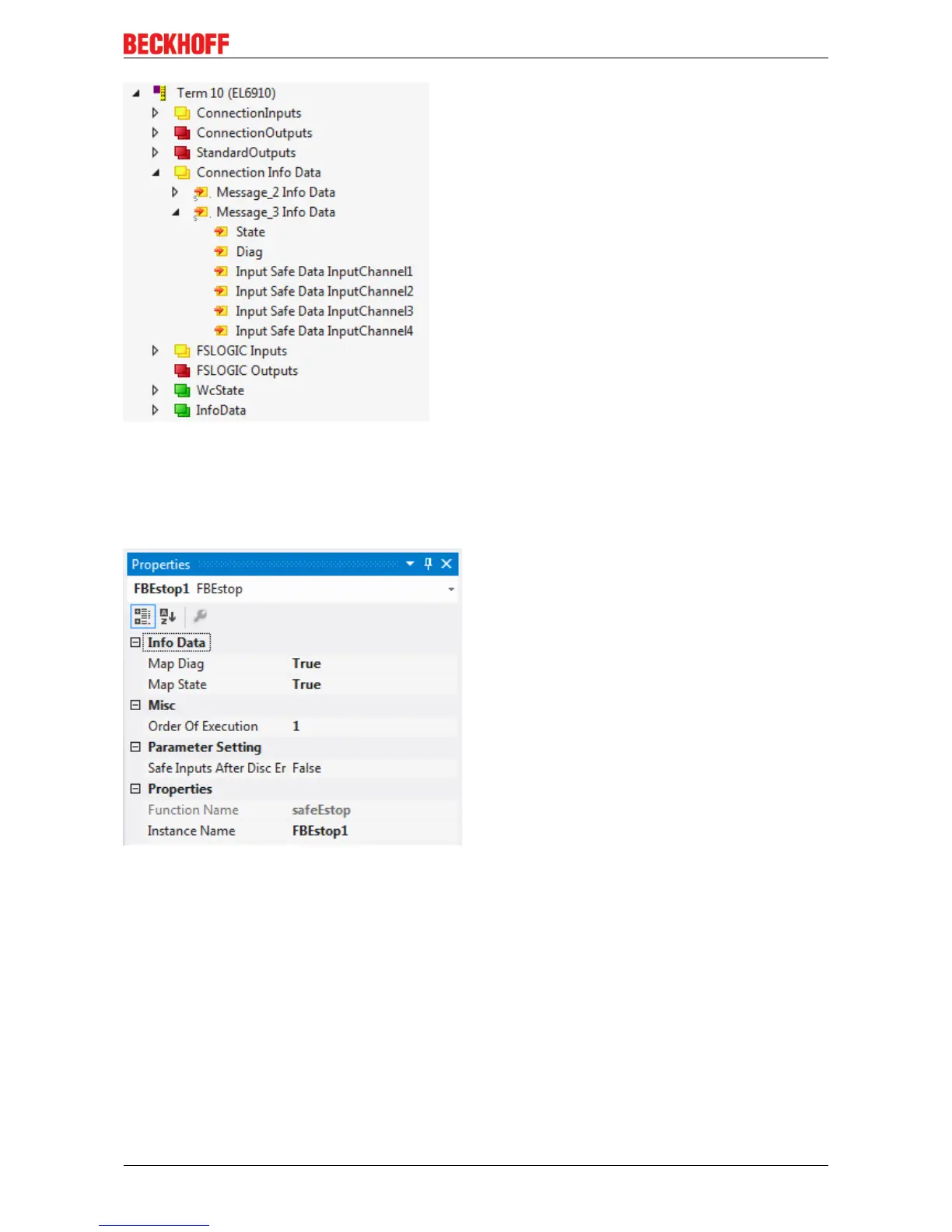

Fig.76: Info data for the connection in the I/O tree structure as individual data
4.5.2 Info data for function blocks
For function blocks, info data can be enabled in the properties of the function block.
Fig.77: Enabling the info data for function blocks
The info data are shown in the I/O tree structure below the EL6910 in the process image. From here, these
signals can be linked with PLC variables. Further information on the included data can be found in the
documentation for TwinCAT function blocks for TwinSAFE logic terminals.
