Operation
EL691038 Version: 1.4.1

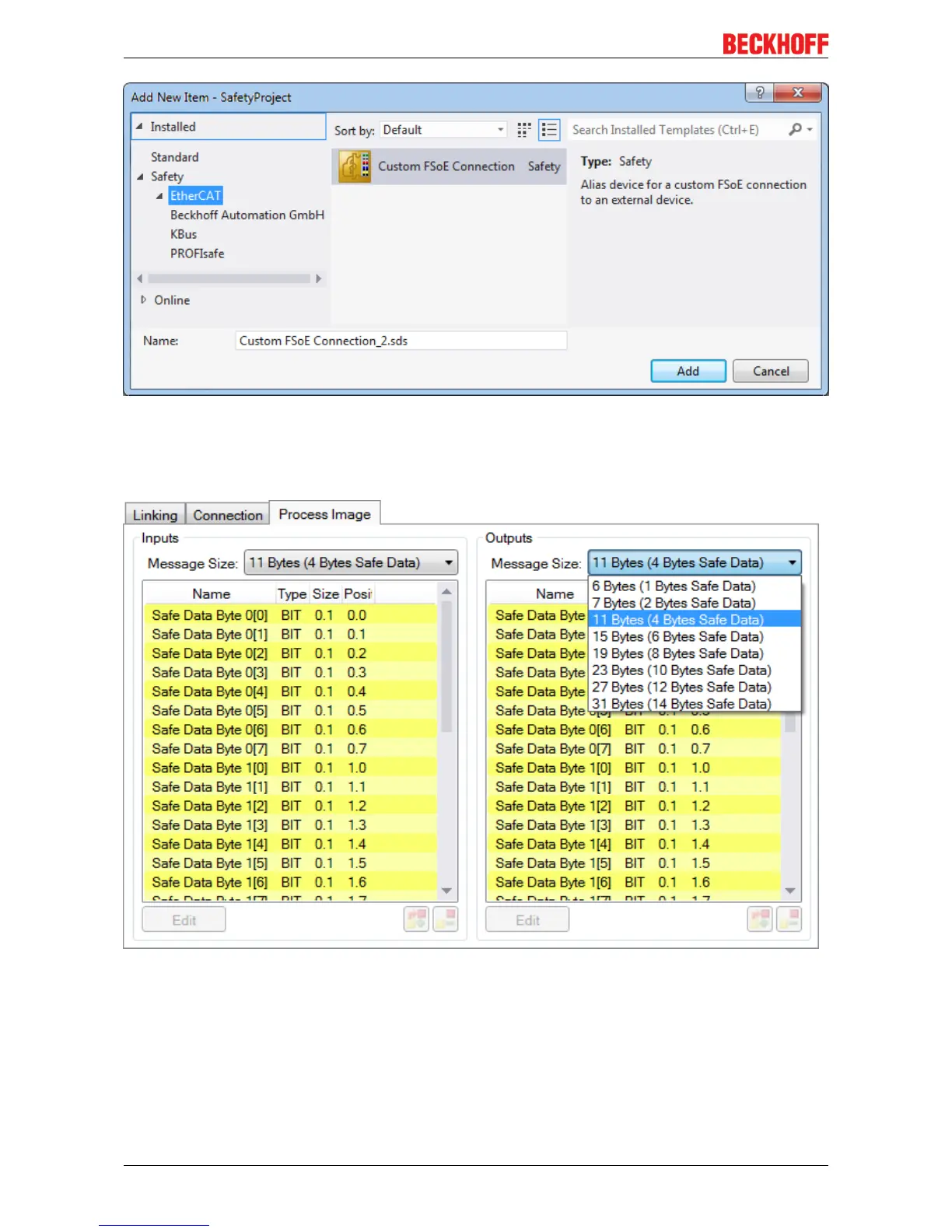

Fig.31: Creating an external connection (Custom FSoE Connection)
Before the connection can be used and linked further, the process image size must be parameterized. This
can be set under the Process Image tab. Suitable data types for different numbers of safety data are
provided in the dropdown lists for the input and output parameters.
Fig.32: Parameterization of the process image size
When the size is selected, the individual signals within the telegram can be renamed, so that a
corresponding plain text is displayed when these signals are used in the logic. If the signals are not
renamed, the default name is shown in the editor (Safe Data Byte 0[0], …).
