Operation
EL6910
47
Version: 1.4.1

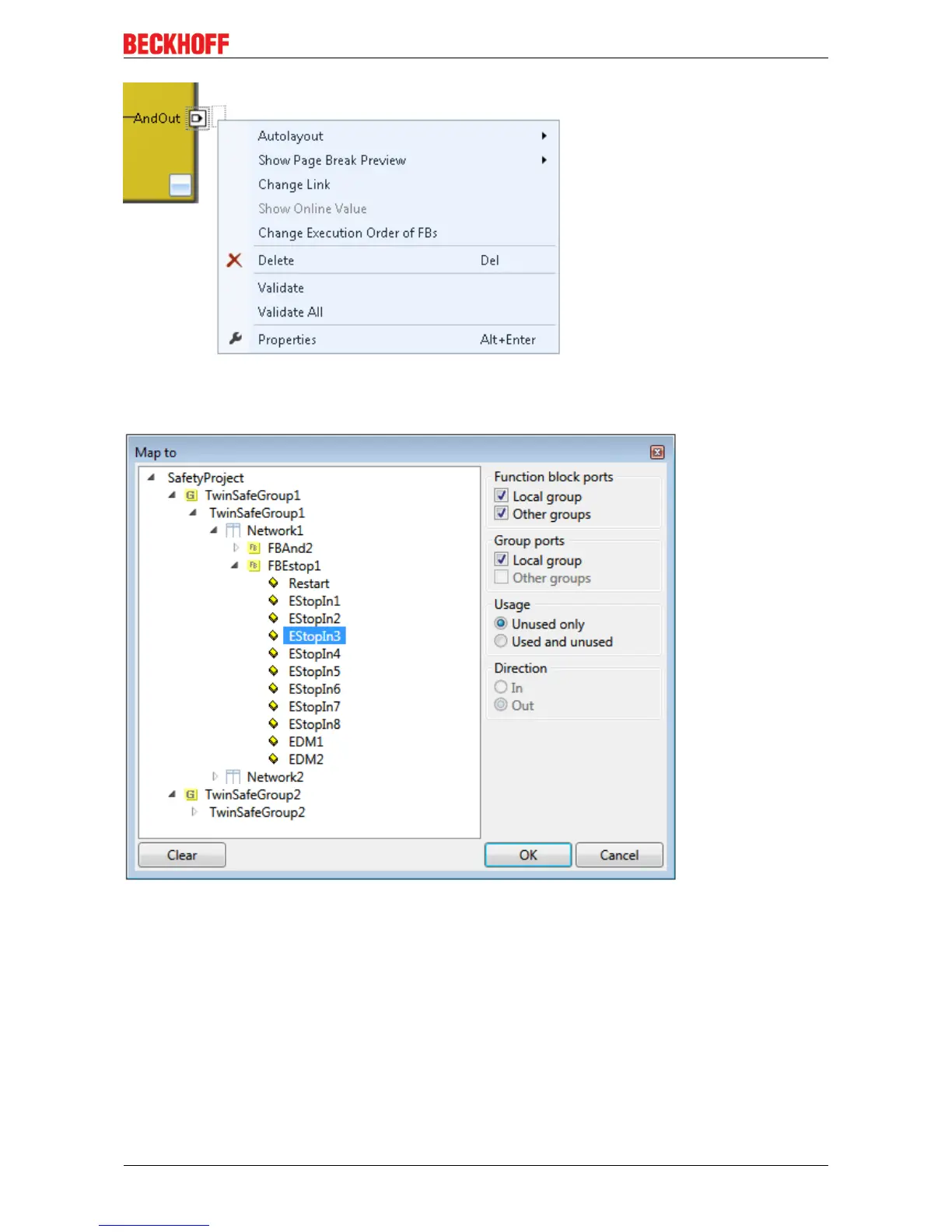

Fig.47: Change Link
This function opens a dialog for selecting a suitable FB port.
Fig.48: Dialog for selecting a suitable FB port
Once the link has been created on one side of the connection, the link is automatically set/displayed on the
opposite side.
