Operation
EL691050 Version: 1.4.1
4.4.6.12 Order of the TwinSAFE groups
The order of the groups can be changed, in order to realize a defined processing sequence of the safety
application.
To this end, select the entry Edit TwinSAFE Group Order via the node menu of the safety project node. A
dialog opens, in which the order of the groups can be changed. The individual groups do not necessarily
have to be numbered in consecutive ascending order. The numbering can contain gaps.

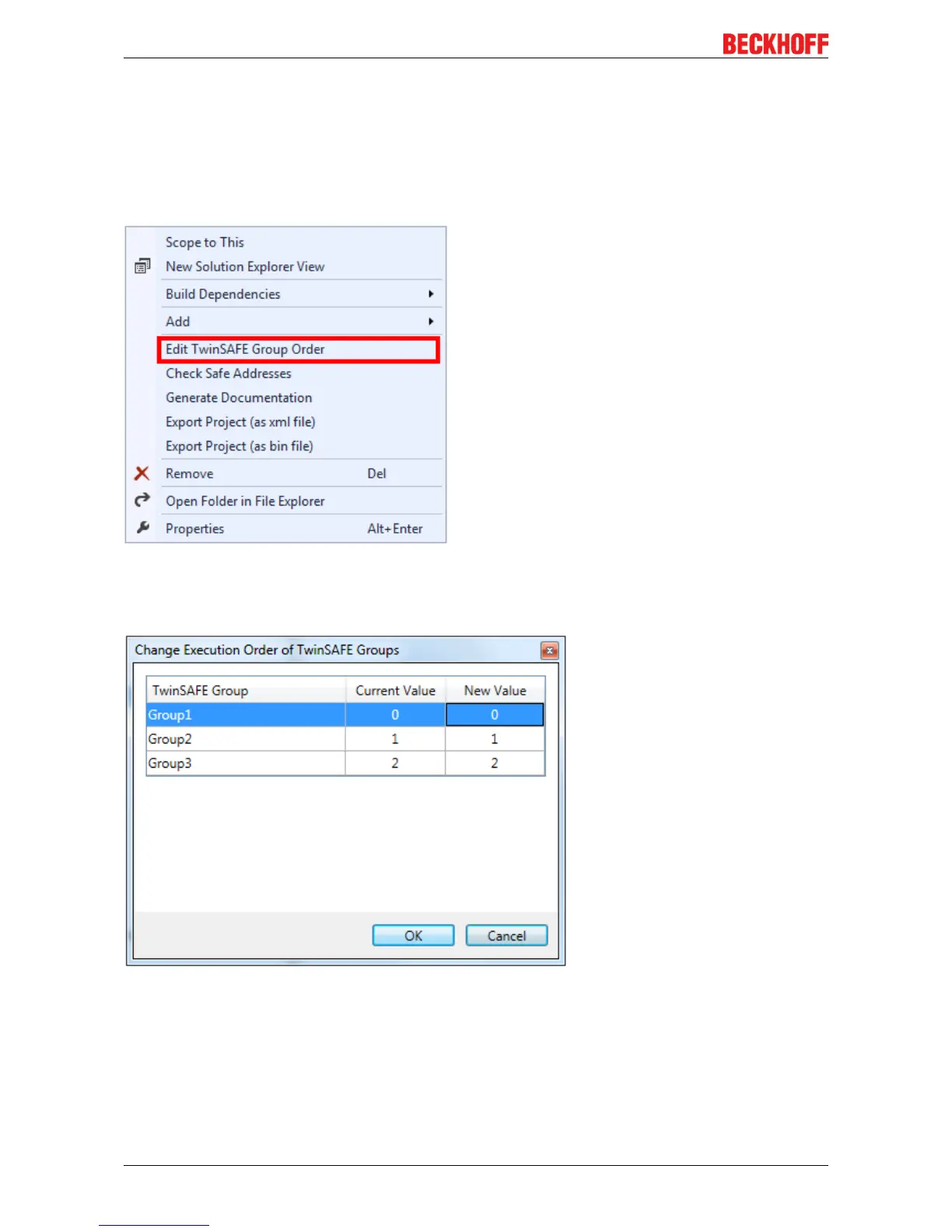

Fig.51: Context menu Edit TwinSAFE Group Order
The current group order is shown in the column Current Value. The new order is specified by entering a
value in the column New Value, followed by OK.
Fig.52: Dialog Change Execution Order of TwinSAFE Groups
4.4.6.13 Command line
The command line below the SAL worksheet can be used to enter commands for executing functions.
