Parameterization and commissioning
EL675244 Version: 2.1
”Box States" tab

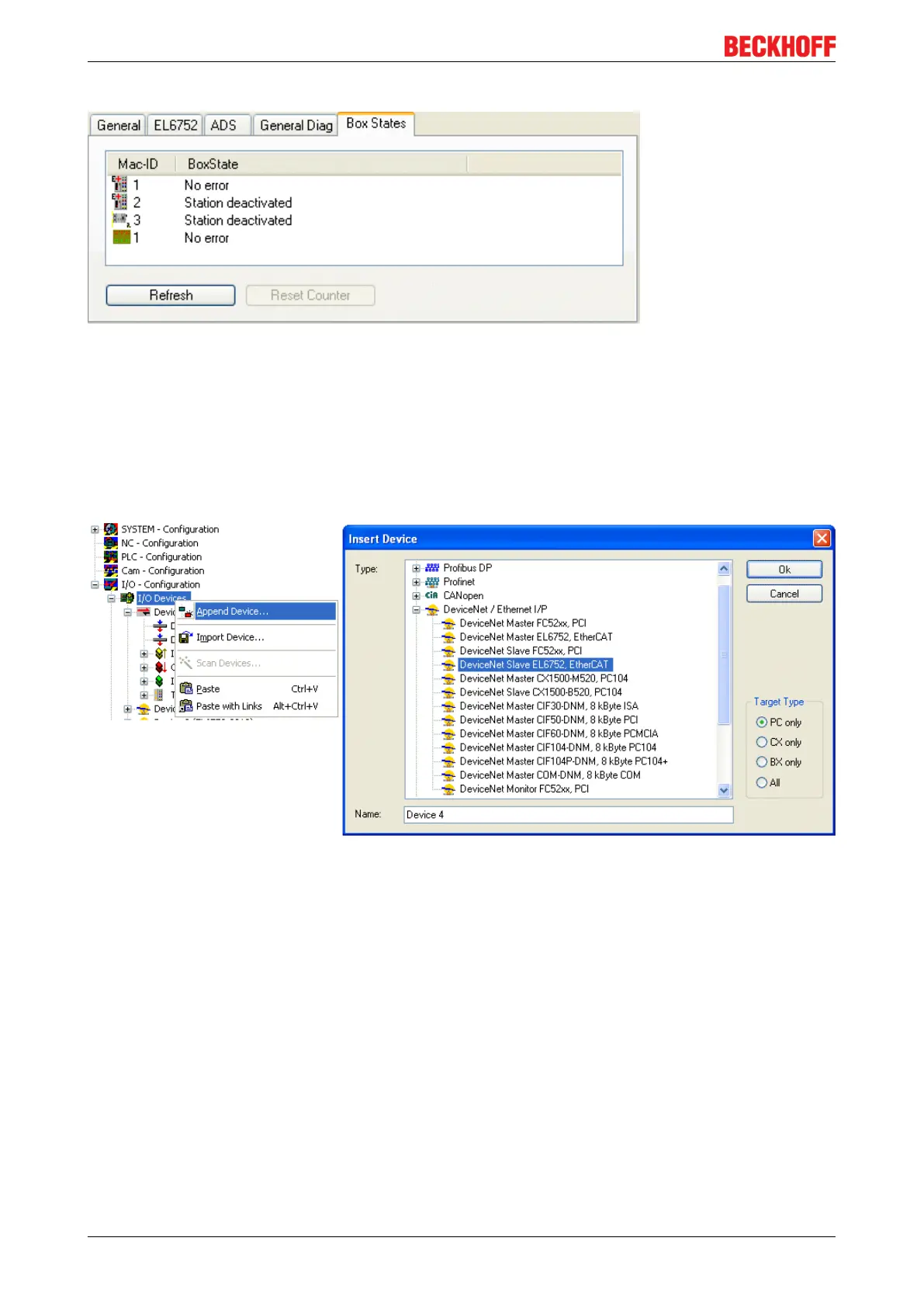

Fig.35: "Box states" tab
Displays an overview of all current box statuses.
EL6752-0010 - DeviceNet slave terminal
In the system configuration tree structure right-click on I/O Devices and “Append device” to open the
selection list of supported fieldbus cards.
Select EL6752-0010 CANopenSlave. TwinCAT searches for the terminal and displays the memory
addresses and slots it finds. Select the required address and confirm.
Fig.36: Appending the device "DeviceNet slave EL6752, EtherCAT"
Right-click on "Device (EL6752-0010)" to insert the box for the EL6752-0010:
To Next Page
