Parameterization and commissioning
EL6752 57Version: 2.1

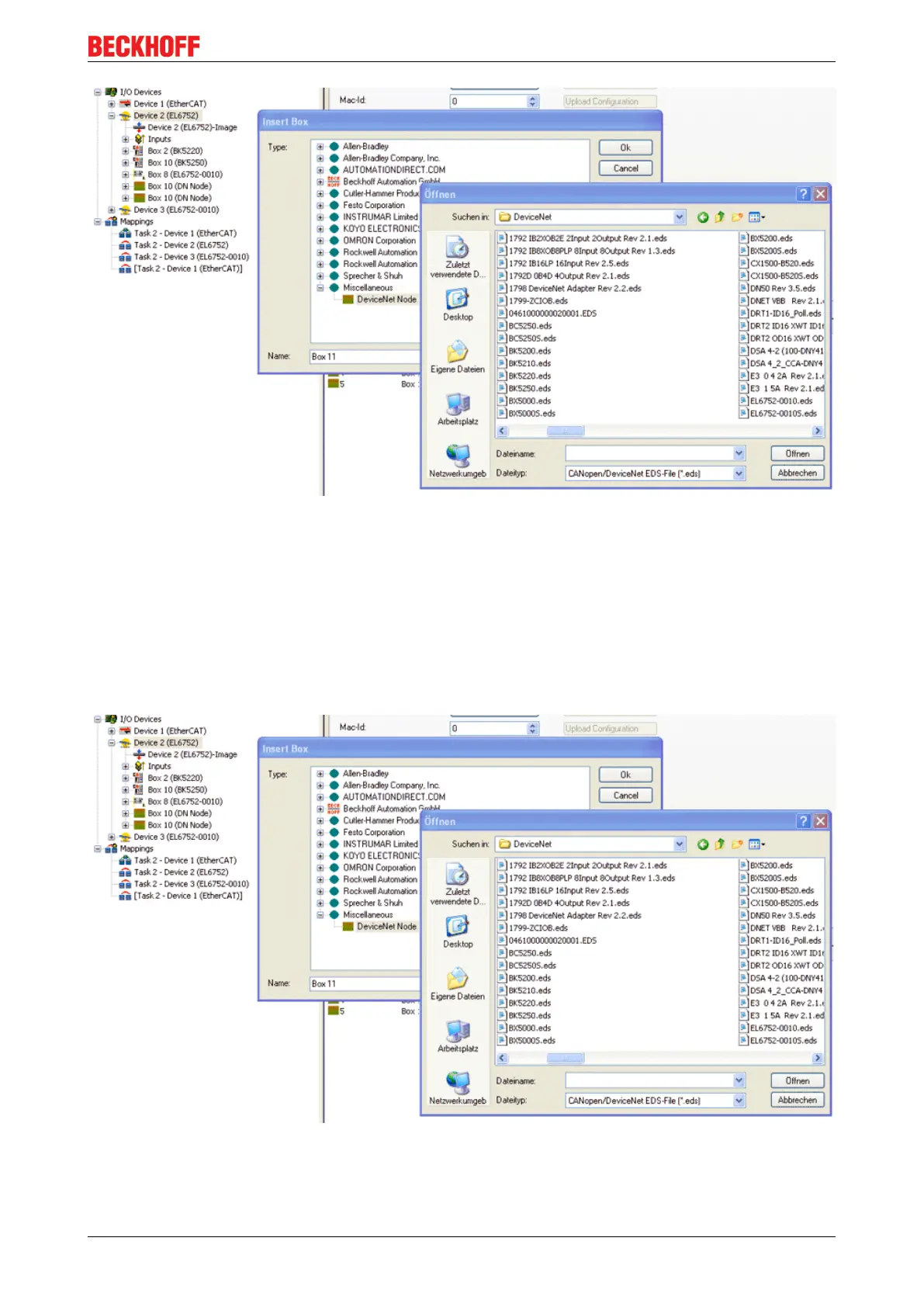

Fig.53: Adding a box without EDS file
Depending on the information contained in the EDS file a DeviceNet node will appear with or without
Parameters tab.
The IO mode and the corresponding data lengths are specified in the EDS file.
6.6.2 Integrating a DeviceNet device without EDS file
A DeviceNet device without EDS file can be integrated via the "Miscellaneous" option:
Fig.54: Adding a box without EDS file (click "Cancel")
Terminate EDS file selection with "Cancel". A general DeviceNet device is created.
