Parameterization and commissioning
EL675248 Version: 2.1

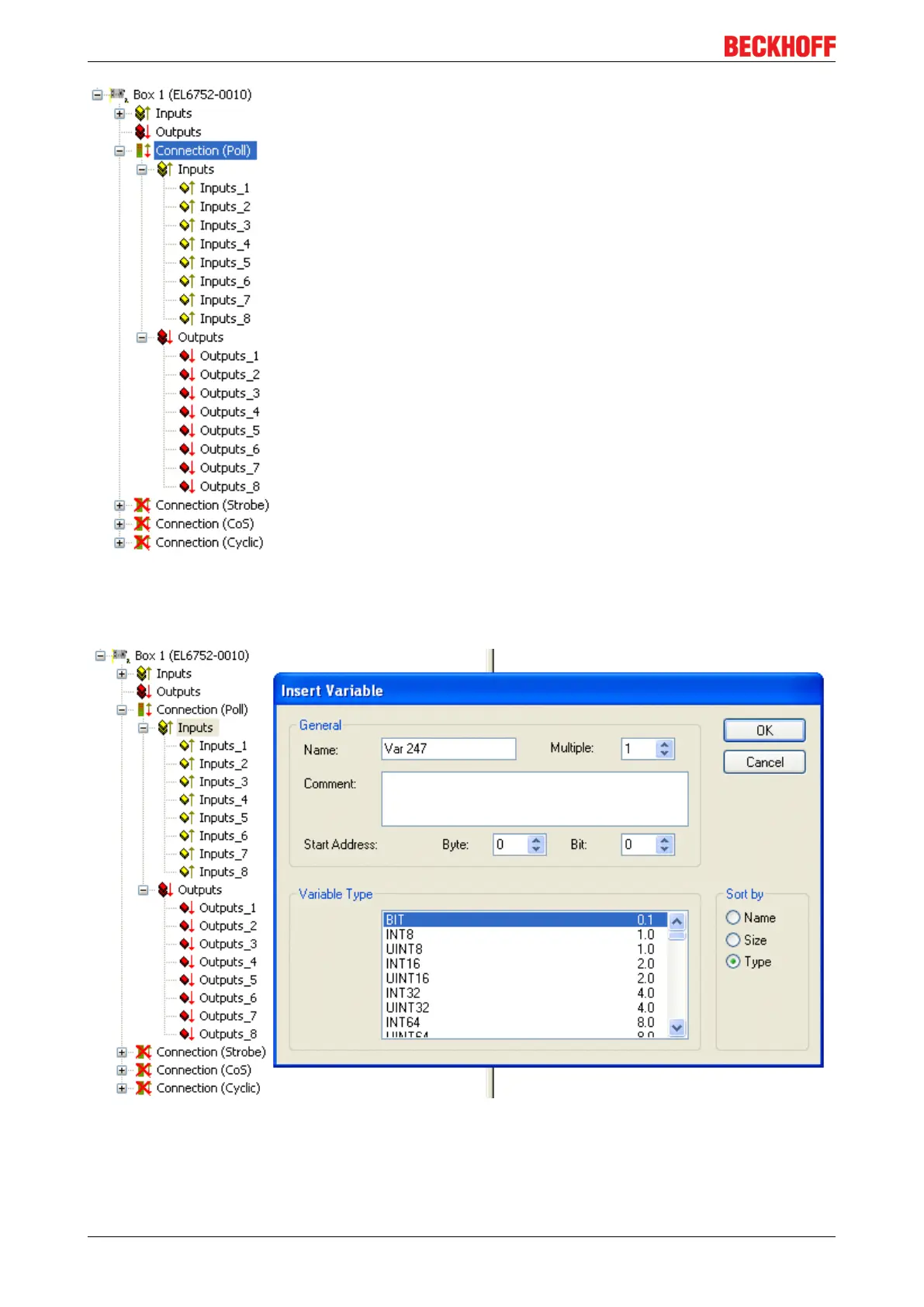

Fig.41: Pre-initialized input and output data lengths in polling mode
According to needs and the application, further input or output data can be appended by right-clicking (Fig.
Adding further variables). Any data type can be selected:
Fig.42: Adding further variables
The data length is converted to a byte stream according to the DeviceNet specification and displayed in the
tab for the corresponding connection:
