Parameterization and commissioning
EL675242 Version: 2.1

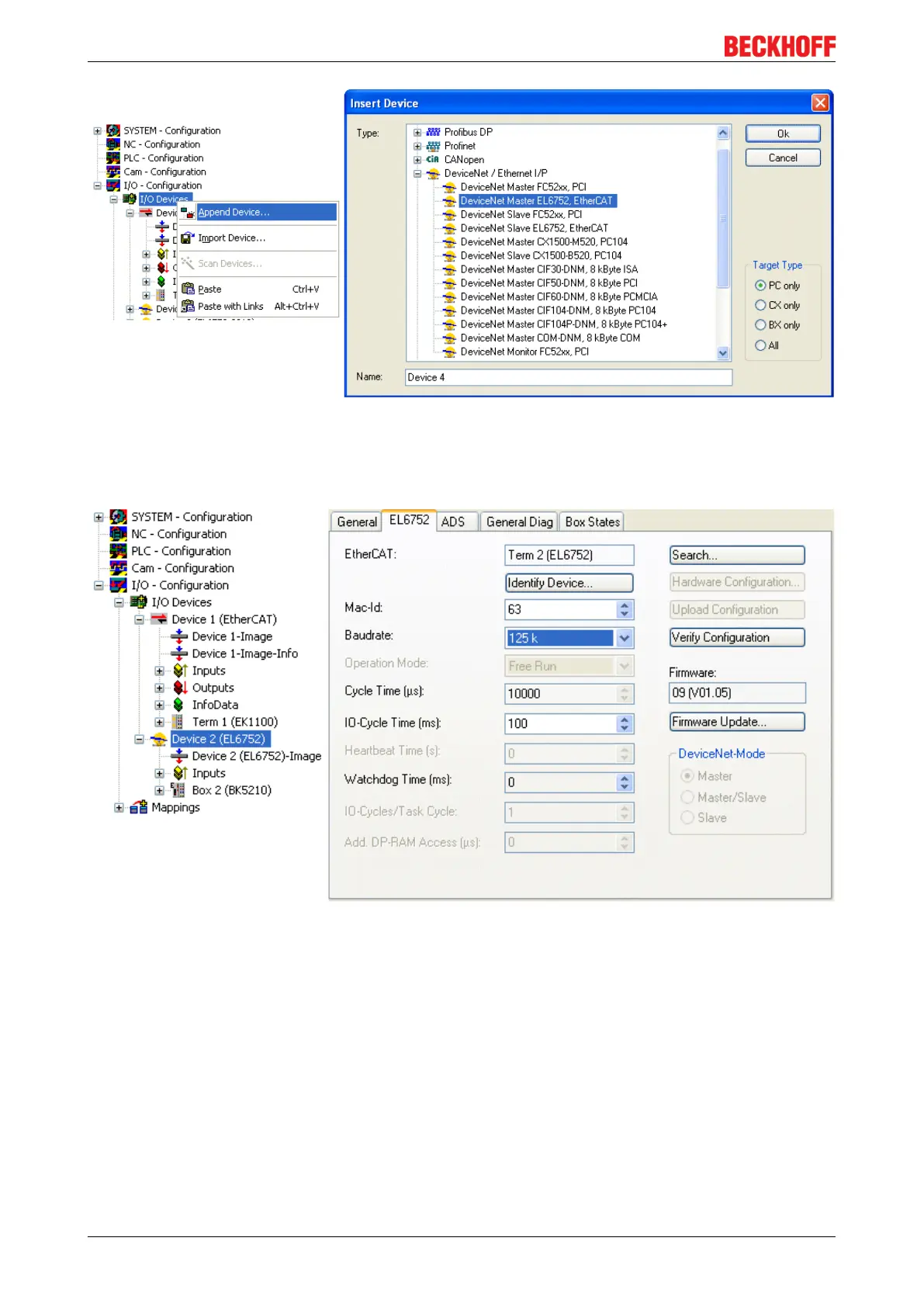

Fig.32: Appending the device "DeviceNet master EL6752, EtherCAT"
"EL6752" tab
Click on the "Device EL6752" in the TwinCAT tree and then on the EL6752 tab:
Fig.33: "EL6752" tab
EtherCAT
Terminal ID in the terminal network.
MAC-ID
Each DeviceNet device - master included - requires a unique station number referred to as MAC ID (Medium
Access Identifier) - value range: 0...63.
Baud rate
Baud rate setting: 125 kbaud, 250 kbaud or 500 kbaud
