7.4 Function and layout of the central lubrication pump
7.4.1 Layout of the central lubrication pump

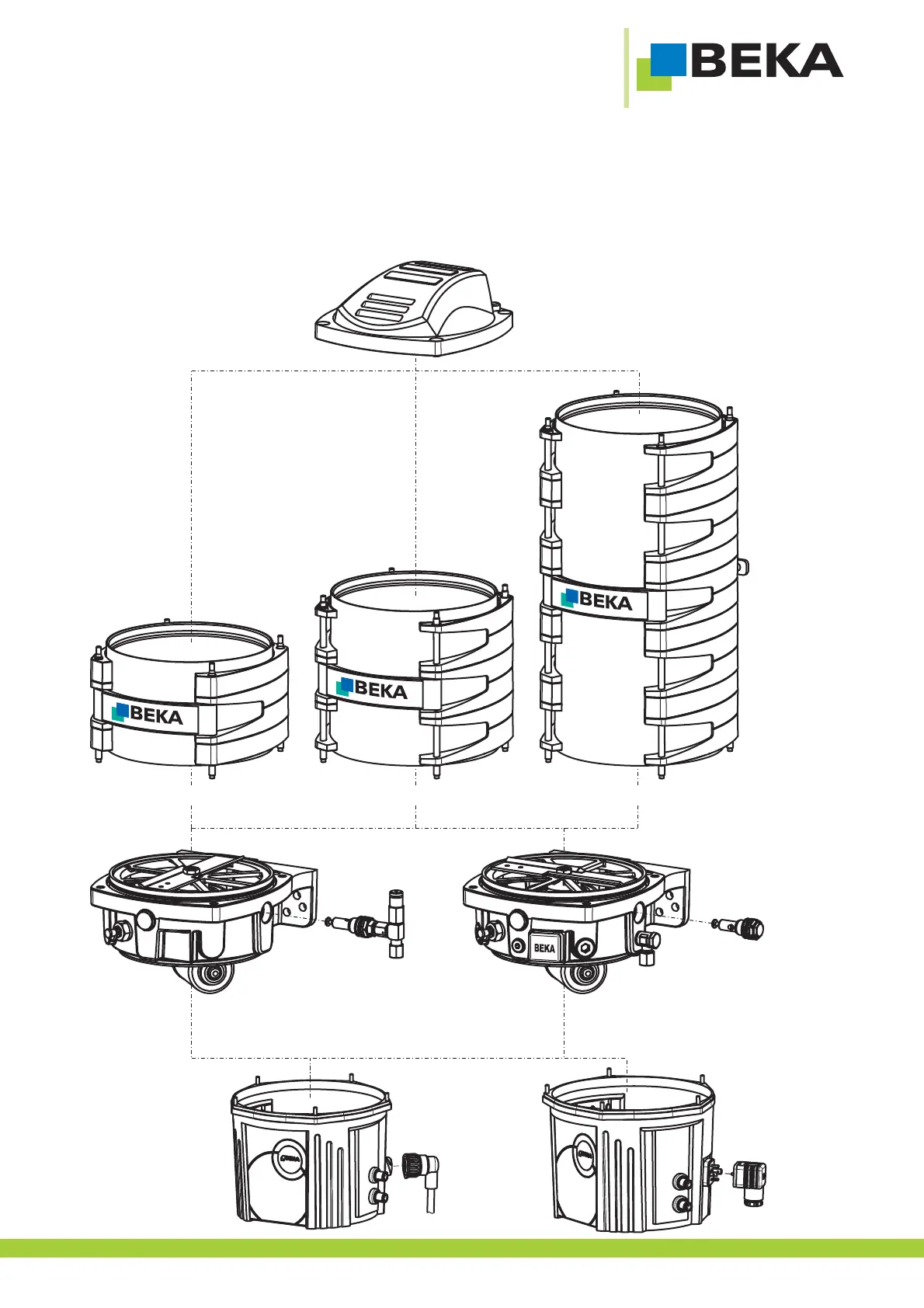

The central lubrication pumps GIGAand GIGAPLUS largely comprise 5 components (Fig. 4).
Fig. 4:
Reservoir cover
Pump housing
GIGA
Pump housing
GIGA PLUS
4 iter reservoirl 8 ter reservoirli 16 iter reservoirl
Bayonet connector
incl. connecting cable
2-core, 10 m long
Motor cover
without control unit
Cubic plug
DIN 43650
© BEKA 201 All rights reserved!6
15
Pump element
f. e. PE 250 G
without ressure limiting valvep
Pump element
PE 120 G / PE 250 G
with ressure limiting valvep
(version ball valve)
