C) Tilt the pump element down and slowly pull it out of the housing hole.
The pump element piston (4, Fig. 24) must be removed from the pump housing!

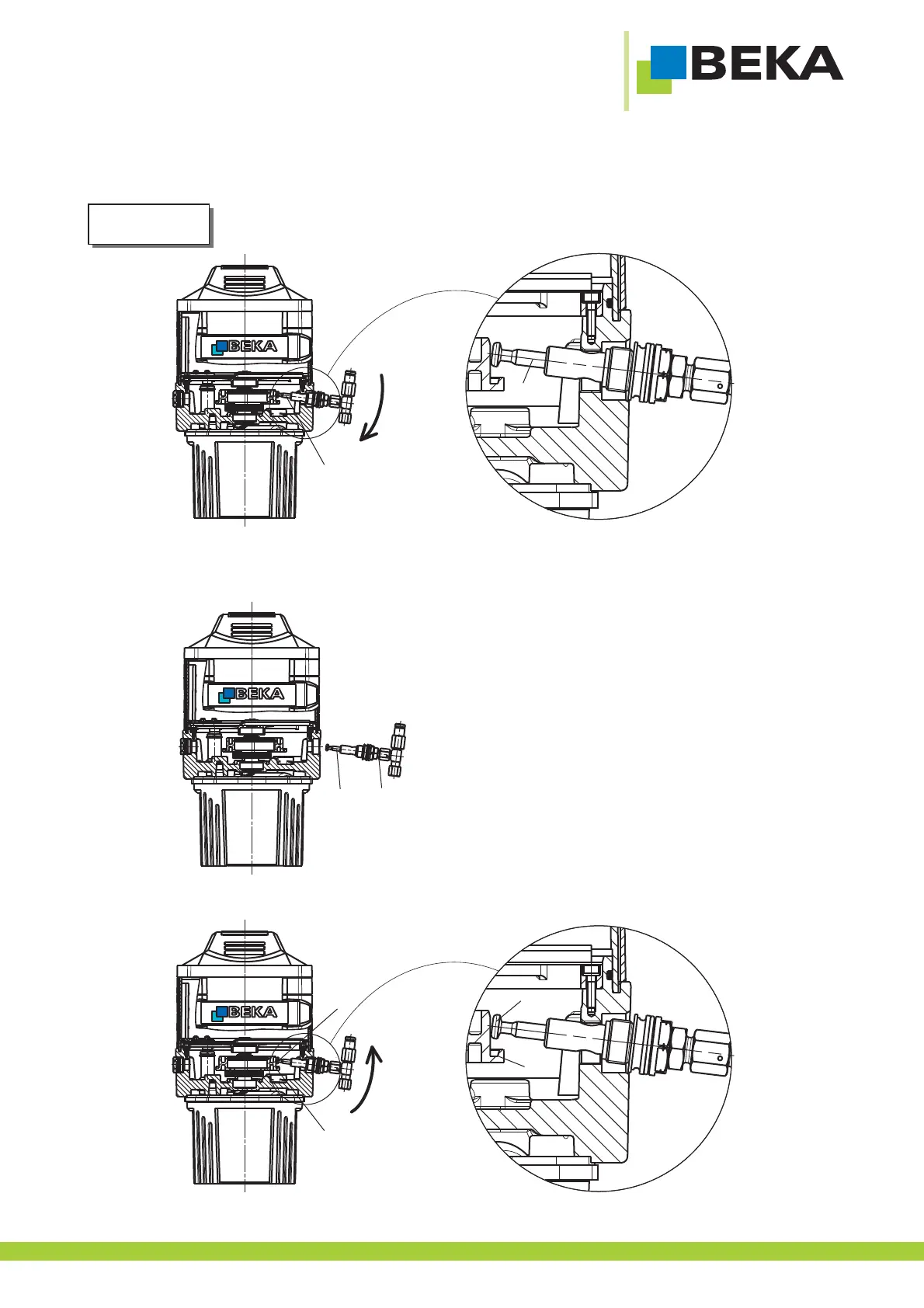

Fig. 24:
8.2.2 Installation
D) Insert the pump element (2, Fig. 25) into the pump housing with the piston partially protruding (4, Fig. 24) upwards
at a diagonal angle.
Fig. 25:
E) If the pump element piston is in contact with the eccentric (5, Fig. 26), tilt the pump element down and hook the
piston head (6, Fig. 26) into the guide notch of the eccentric.
Fig. 26:
4
2
4
5
6
5
6
4
