5.3.4 Port assignment
Port Description
1 ... 6 Port group I
7 ... 14 Port group II
15 ... 30 Port group III

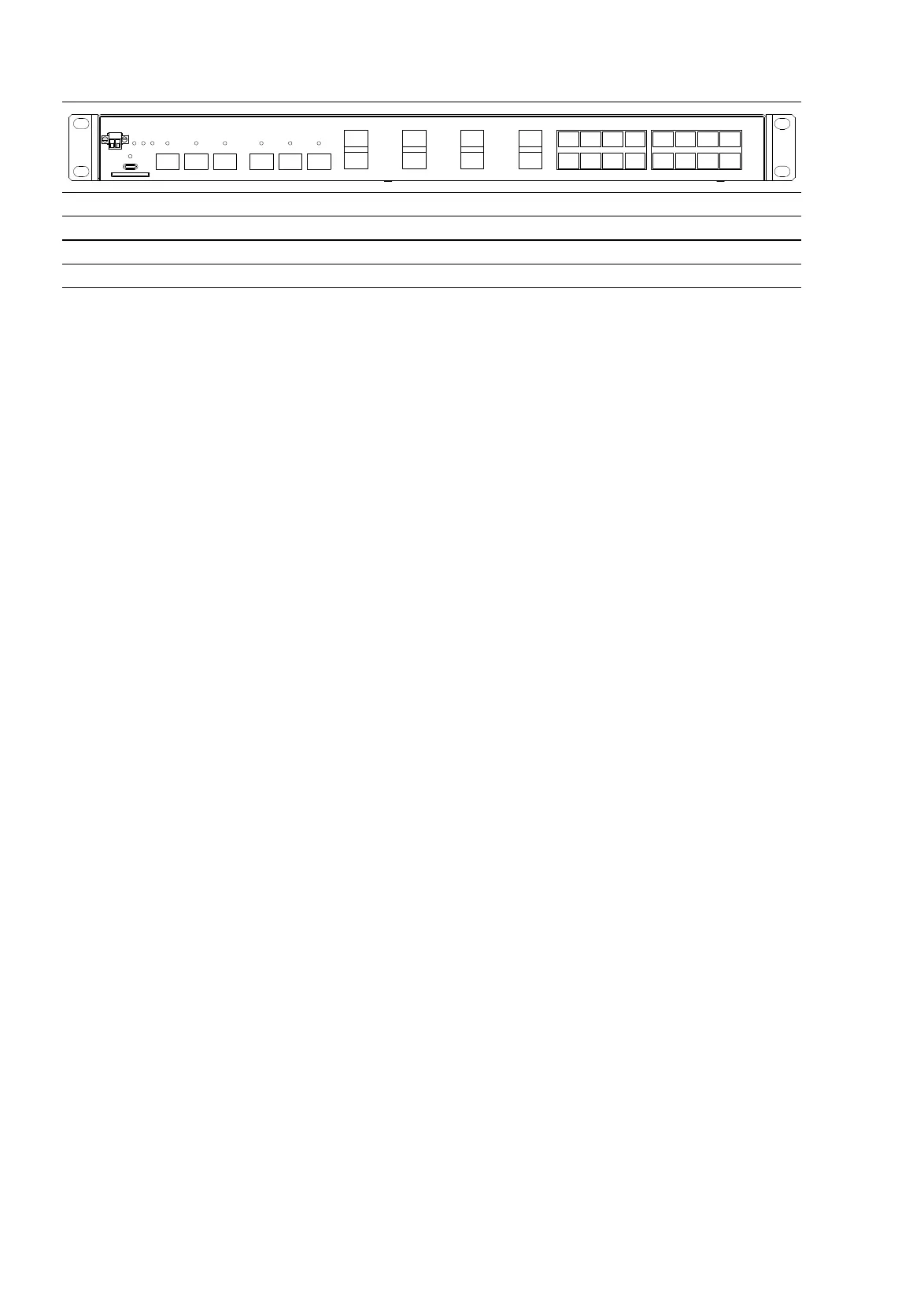

Table 7: Port assignment: Front view; numbering sequence identical for every
device variant
123 456
7
9 11 13
8
10 12 14
15 17 19 21
16 18 20 22
23 25 27 29
24 26 28 30
